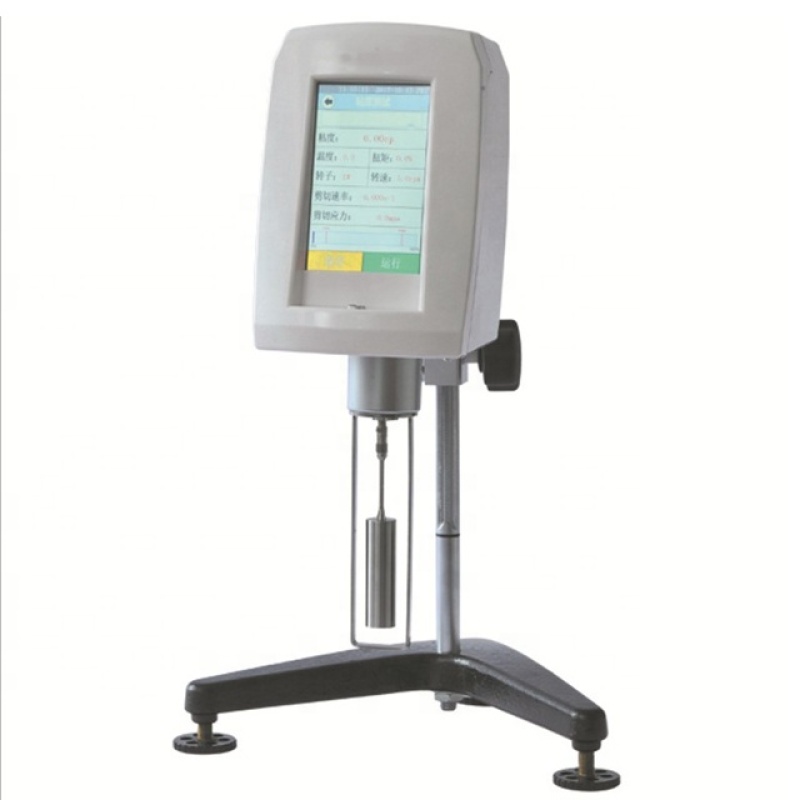

Laboratory Viscosity Meter (Viscosimeter)

In stock
LVDV-1T Laboratory rotating viscosimeter/Laboratory Viscosity Meter


Lead Time: 14-21 Days


LVDV-1T Laboratory rotating viscosimeter/Laboratory Viscosity Meter


Lead Time: 14-21 Days

LVDV-1T Laboratory rotating viscosimeter/Laboratory Viscosity Meter


Widely used in all kinds of fluid need to measure viscosity. Including paint, paint, ink, cosmetics, paper pulp, food, oil, starch, solvent based adhesive, latex, biochemical products and so on.


LVDV-1T Laboratory rotating viscosimeter/Laboratory Viscosity Meter

Main features:

1. Using ARM technology, built in Linux system. The operation interface is simple and clear, through the test program to create and dataAnalysis, rapid and easy to carry out the viscosity test;

2. The viscosity measurement is accurate, each range is automatically calibrated with the computer, the accuracy is high, and the error is small;

3. The display rich content: in addition to the viscosity, and temperature, shear rate, shear stress, measurement for the full-scale value percentage (graphics), automatic scanning, overflow alarm range, the maximum measurement range, the rotor speed under the combination of the date, time and so on. And it can show the kinematic viscosity in the case of known density, great to meet different measurement requirements of users;

4. Function is complete, can be measured regularly, 30 sets of test procedures, access to the 30 sets of measurement data, real-time display of viscosity curve, print data and curves, etc.;

5. Pre – level meter, the level of direct and convenient adjustment

6. Optional temperature probe, viscometer special constant temperature bath, constant temperature cup, printer, standard samples (standard oil viscosity) etc.;


LVDV-1T Laboratory rotating viscosimeter/Laboratory Viscosity Meter

Detailed technical parameters:




Control / display mode

5 inch color touch screen




measuring range mPa.s

0.6~ 2,000,000(0 ~ 4# rotor)

10~200,000(21/27/28/29# rotor)

Measurement of 10 below the ultra low viscosity to buy 0# rotor


1 – 4#(standard configuration)

0#rotor  (Select configuration)

21/27/28/29#rotor (Select configuration)

Measurement error (Newton liquid)


Repetition error (Newton liquid)

±0. 5%

Timing function

standard configuration


measuring function

Standard temperature probe interface (need to select the

 temperature probe configuration)

Automatic scanning function

Automatic scanning and recommendation of the best combination

of rotor and speed

Display the maximum measurement range

The range of viscosity can be measured by the combination of the selected rotor and rotational speed.

Shear stress /

 shear rate


Display kinematic


Need to enter the density of the sample

Establish measurement procedures

Can save up to 30 groups (including the rotor, speed,

temperature, time, etc.)

Save measurement results

Can save up to 30 sets of data (including viscosity, temperature, rotor, speed, shear rate, shear stress, time, density, kinematic viscosity, etc.)

Viscosity time curve

real-time display


Print data, curve (standard print interface, should choose to

buy a printer)


temperature unit

Options (including all kinds of special thermostat thermostatic

cup viscometer.)

Power Supply

110V / 60Hz  or  220V / 50Hz

Outline dimension

300 × 300 × 450(mm)21600


Additional information

Weight 8 kg
Dimensions 30 × 30 × 42 cm
