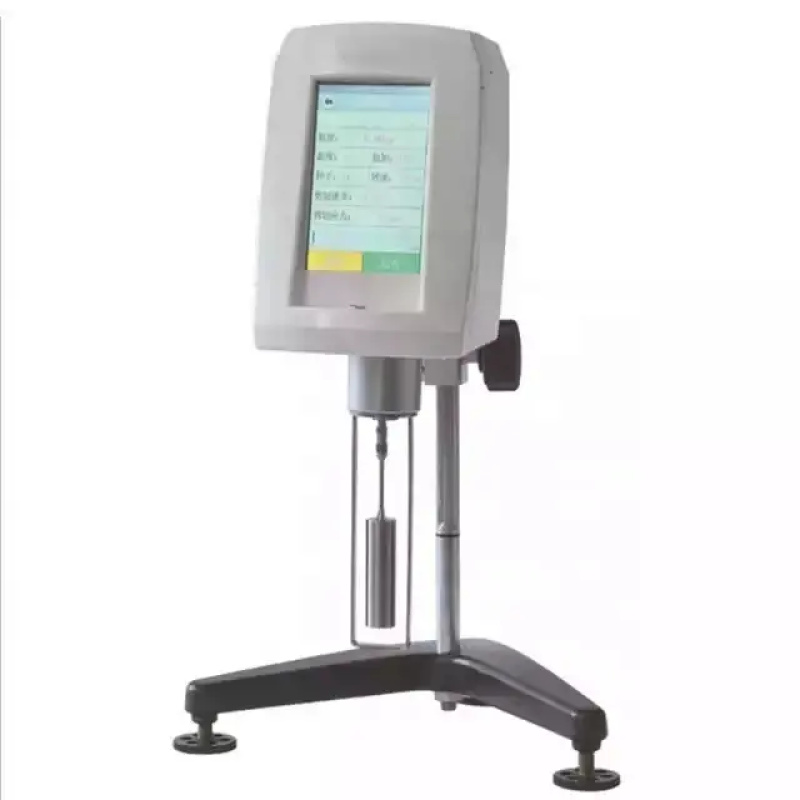

Digital Laboratory Viscosity Meter SNB-T
Lead Time: 2-4 Weeks
Rotary Viscometer SNB-T,Digital Brookfield Equivalent Viscometer
Use
Widely used in the need to measure the viscosity of fluid and fluid under high temperature and melting. Includes the following industries:
- paint
- coatings
- cosmetics
- printing ink
- paper pulp
- food
- oil
- latex
- starch
- solvent-based adhesives
- biochemical products, etc.
Detailed technical parameters:
Digital Laboratory Viscosity Meter SNB-T
|
Model |
SNB-1T SNB-2T |
|
|
Control/display mode |
5 inches color touch screen |
|
|
speed(r/min) |
0.3/0.6/1.5/3/6/12/30/60 |
0.1/0.3/0.6/1.5/3/6/12/30/60 |
|
Measuring rangemPa.s |
1~2,000,000 |
1~6,000,000 |
|
(Measuring 10 under low viscosity, equipped with 0 # rotor) |
||
|
rotor |
1, 2, 3, 4#( standard) 0#转子( standard) |
|
|
Measurement error (Newtonian liquid) |
±1% |
|
|
Repetitive error (Newtonian liquid) |
±0. 5% |
|
|
Timing function |
standard |
|
|
Temperature measurement function |
The standard temperature sensor interface temperature sensor (selected) |
|
|
Automatic scanning function |
Automatic scanning and recommend the best combination of rotor and speed |
|
|
According to maximum measuring range |
Combination of rotor and speed automatically according to the selected viscosity range can be measured |
|
|
Should show shear/shear rate |
standard |
|
|
Automatic display kinematic viscosity |
Need to input the density of the sample |
|
|
Self-built measurement program |
Can save up to 30 groups (including the rotor, rotational speed, temperature, time, etc.) |
|
|
Save the measurement results |
Can save up to 30 sets of data (including viscosity, temperature, rotating speed of rotor, and the shear rate, Shear stress, time, density, kinematic viscosity, etc.) |
|
|
Viscosity curve |
Real-time display viscosity curve |
|
|
|
Data, curve can print (standard equipped with print interface, to choose and buy a printer) |
|
|
Data output interface |
standard |
|
|
Constant temperature parts |
Option (viscometer constant temperature trough, thermostatic cup, etc.) |
|
|
Working power supply |
Wide working voltage (110 v / 60 hz or 220 v / 50 hz) |
|
|
Overall dimensions |
300 × 300 × 450(mm) |
|
