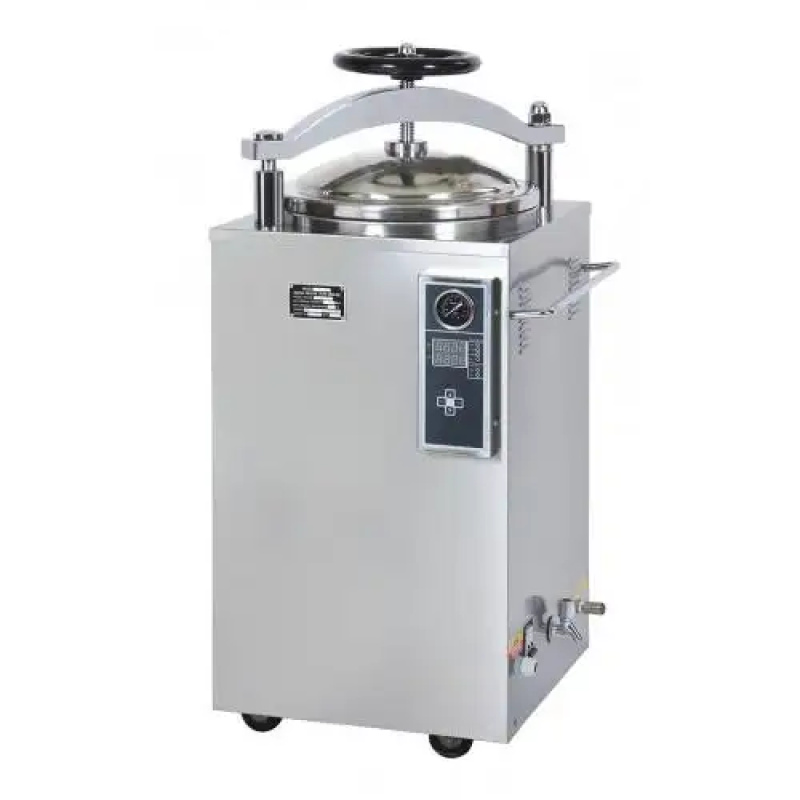

Autoclave Vertical Top Loading
Autoclave Vertical Top Loading
Autoclaves are ideal equipments for clinics, scientific research institutes and other organisations to sterilise surgical instruments, fabrics, glasses, culture media etc.
Lead Time: 4-6 Weeks
Characteristics
• Fully stainless steel structure.
• Auto discharge the cool air, and steam discharge automatically after sterilization.
• Automatically shut off with beep reminding after sterilization.
• Hand wheel type of quickopen door structure.
• Over temperature & over pressure autoprotection.
• Easy to operate, safe and reliable.
• Door safety lock system.
• With two stainless steel sterilizing baskets.
• LCD display of working status, touch type key.
• Safe protection of water lacking.
• With drying system.
• Self inflating type seal.
• LCD display of working status, touch type key.
• Safe protection of water lacking.
• With drying system.
• Self inflating type seal.
Vertical Autoclave Top Loading
Autoclaves are assembled with heating system
Microcomputer controlled system,
Over heat and over pressure protection system,
Which are reliable for the sterilising effects,
Convenient of operation and energy conservation.
|
MODEL
|
LS-35HD
|
LS-50HD
|
LS-75HD
|
LS-100HD
|
|
Technical Data
|
||||
|
Chamber volume
|
35L
φ318×450mm |
50L
φ340×550mm |
75L
φ400×600mm |
100L
φ440×650mm |
|
Working pressure
|
0.22Mpa
|
|||
|
Working temperature
|
134℃
|
|||
|
Max. working pressure
|
0.23Mpa
|
|||
|
Heat average
|
≤±1℃
|
|||
|
Timer range
|
0-99min or 0-99hour59min
|
|||
|
Temperature adjust range
|
105-134℃
|
|||
|
Power
|
2.5KW/AC220V 50HZ
|
3KW/AC220V 50HZ
|
4.5KW/AC220V 50HZ
|
|
|
Overall dimension(mm）
|
470×450×1020
|
520×500×1150
|
550×530×1180
|
580×560×1290
|
|
Transport dimension（mm）
|
570×570×1180
|
610×610×1290
|
650×650×1330
|
680×680×1450
|
|
G.W/ N.W
|
70Kg/63Kg
|
82Kg/74Kg
|
100Kg/93Kg
|
110Kg/85Kg
|
