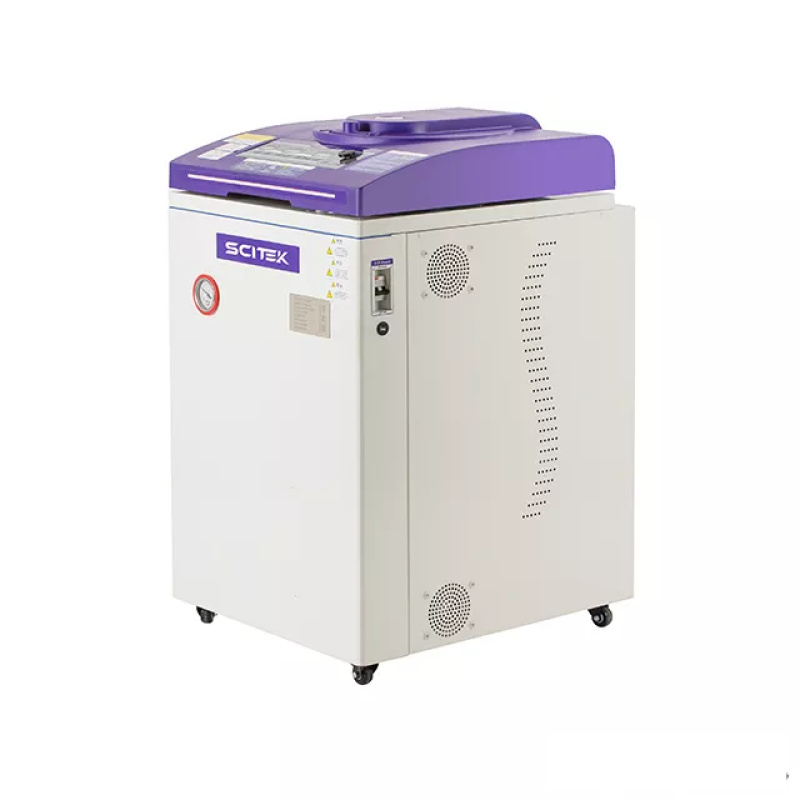

Vertical Pressure Steam Autoclave
Vertical Pressure Steam Steriliser 1
Vertical Pressure Steam Steriliser 2
Vertical Pressure Steam Steriliser 3
Click to enlarge
Vertical Pressure Steam Autoclave
Home Autoclaves Vertical Pressure Steam Autoclave
Vertical Pulse Vacuum Autoclave
Vertical Pulse Vacuum Autoclave R65,998.00 – R118,455.00
Back to products

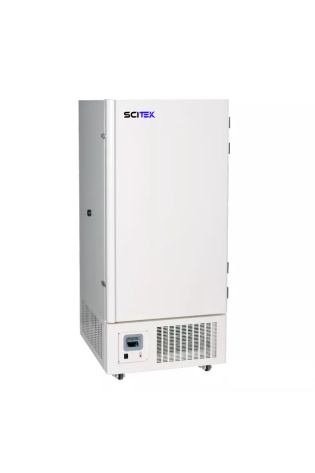

Laboratory Pharmacy Freezer -40°C
Laboratory Pharmacy Freezer -40°C R11,189.00 – R108,499.00

Vertical Pressure Steam Autoclave

R64,085.00 – R132,554.00

Weight N/A
Dimensions N/A
size

120L

,

150L

,

75L

,

80L

,

105L

,

135L

,

56L

,

95L

Clear
wws Need Help? Contact Us via WhatsApp
Add to wishlist
SKU: N/A Category: Autoclaves
Share:
  • Description
  • Shipping & Delivery
Description

Vertical Pressure Steam Autoclave, With Drying Function

Lead Time: 4-6 Weeks

Advantages of Vertical Autoclave:

  1. Automatically detect the position of the door lock and provide voice-guided instructions for easy operation.
  2. Blue breathing light indicates standby, alert, and power outage statuses.
  3. Safety valve calibration prompts, with the ability to send notification messages to a WeChat public account through cloud-based pushing.
  4. Dual-hold electromagnetic locks ensure automatic locking under high temperature or pressure.
  5. Unlock conditions are met for automatic release, and the lid can be opened directly by lifting the lever.
  6. No steam leakage: Internal integration of copper pipe steam condenser converts high-temperature steam into water before discharging it into the waste steam collection tank.
  7. Voice prompts and guidance for user-friendly operation.
  8. Optional sterilisation report USB export and online storage of sterilisation reports.
  9. PHM/PHY models are equipped with online sterilization quality control functions such as “FO value calculation, FO value process calculation, FO value aging treatment.”
  10. Full automatic water replenishment, built-in current detection module to monitor the operation status of the heater in real-time, preventing dry heating online.
  11. Standard configuration: Dual over-temperature protection + dual over-pressure protection for the heating system, ensuring enhanced safety.
  12. Expandable + optional: For positive waste sterilization, an optional PTFE filter can be added to prevent exhaust pollution and potential personnel poisoning.
  13. Reservation and preheating: Time reservation for automatic sterilization. Preheating capability prevents condensation due to temperature drop after drying.
  14.  sterilization is effective. Sterilization completion can be determined based on FO value rather than time.

Drying Function:

Vertical Pressure Steam Autoclave

  1. Disinfection packages with moisture content greater than 3% are referred to as wet packs.
  2. Wet packs cannot be used and must be re-sterilized. T
  3. he reason is that the moisture in the air forms a wet channel for bacterial contamination, leading to internal infection.

Vertical Pressure Steam Steriliser Specifications:

Model ST-VM56

ST-VY56

ST-VM80

ST-VY80

ST-VM75

ST-VY75

ST-VM105

ST-VY105

ST-VM120

ST-VY120

ST-VM95

ST-VY95

ST-VM135

ST-VY135

ST-VM150

ST-VY150

ST-VM Series: Normal Type / ST-VY Series: Drying Function Type
Capacity 56L 80L 75L 105L 120L 95L 135L 150L
External Size

(WxDxH)(mm)

680x600x895 680x600x1145 680x600x895 680x600x1145 680x600x1235 680x600x895 680x600x1145 680x600x1145
Chamber Size

(ØxH)(mm)

Ø350×645 Ø350×895 Ø400×661 Ø400×911 Ø400×1001 Ø450×677 Ø450×927 Ø450×1017
Chamber Material S30408
Sterilization

Temperature

105~135 ℃
Designed Temperature 138℃
Max.Working Temperature 135℃
Dissolution

Temperature

60~100℃
Warming Temperature 45~65℃
Unlock Temperature 60~95℃
Temp.Accuracy 0.1℃
Designed

Pressure

0.42Mpa 0.42Mpa 0.38Mpa 0.38Mpa 0.38Mpa 0.35Mpa 0.35Mpa 0.35Mpa
Max.Sterilization Pressure 0.24Mpa
Sterilization Time

Range

1~9999min
Temp. Controller PID control by microprocessor
Display LED screen
Drying Function 3 Optional Drying Solutions (Select 1):

●Thermal control drying drying

●Positive pressure drying

●Vacuum drying

Drying Time 10~300min (Optional)
Sterilization Program ●Liquid program

●Liquid & insulation program

●Bagged waste

●Dissolution & insulation program

●Instrument program

●Self-cleaning program

●Safety valve test program

●Leakage test program

●B-D test program

Water Injection

method

Build-in water tank
Optional: Water supply pipeline+automatic replenishment, filtered pure water+automatic replenishment, positive pressure automatic drainage in the chamber, automatic detection and removal of discharged wastewater
Power

Consumption

2500W 3800W 2500W 3800W 3800W 3800W 3800W 3800W
Power Supply 220V 50/60Hz 10A/16A 220V 50/60Hz 16A 220V 50/60Hz 16A 220V 50/60Hz 25A 220V 50/60Hz 25A 220V 50/60Hz 25A 220V 50/60Hz 25A 220V 50/60Hz 25A
Standard ●USB port
●Buli-in  water tank
●User management
Optional ●Printer (Impact)

●PTFE filter

●Sample temperature sensor

●Electric drainage

●Water supply pipe

●Bulid-in waste tank

●Positive pressure compensation

●Auto un-lock and door open

●Leakage test module

●Vacuum test module

●Water cooling system

Drying Power Consumption 700W 900W 1200W 1400W 1600W 1200W 1400W 1600W





Shipping & Delivery

Lead Time

  • Standard Lead time: 3 - 4 working days.
  • Imports: 4 - 6 Weeks

Dangerous Chemicals

Please note that an affidavit is required for the purpose of dangerous chemicals, clearly stating the intended use of the chemical.
