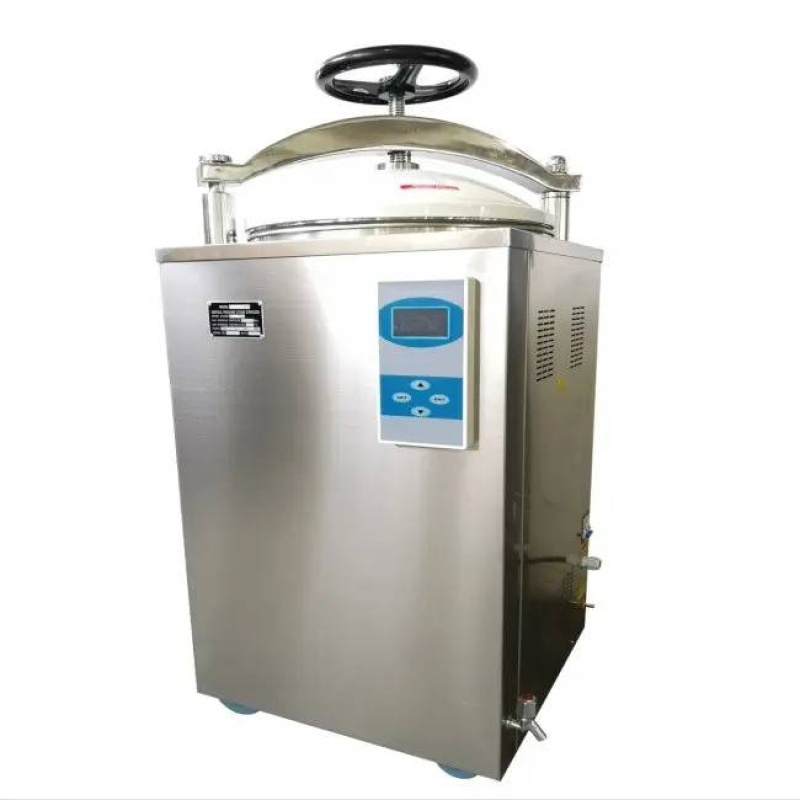

Autoclave Vertical Top Loading
Lead Time: 4-7 weeks
We Offer High Quality – Excellent Brands
The vertical pressure steam sterilizers are assembled with heating system,
Microcomputer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation.
They are ideal equipments for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.
Characteristics
• Fully stainless steel structure.
• LED display of working status, touch type key.
• Auto discharge the cool air, and steam discharging automatically after sterilization.
• Automatically shut off with beep reminding after sterilization.
• Easy to operate, safe and reliable.
• With two stainless steel sterilizing baskets.
• Fully stainless steel structure.
• LED display of working status, touch type key.
• Auto discharge the cool air, and steam discharging automatically after sterilization.
• Automatically shut off with beep reminding after sterilization.
• Easy to operate, safe and reliable.
• With two stainless steel sterilizing baskets.
Product Parameters
– Autoclave Vertical Top Loading
|
Model technical data |
LS-35HD(automatic) |
LS-50HD(automatic) |
LS-75HD(automatic) |
LS-100HD(automatic) |
|
Chamber volume |
35L(φ318×450)mm |
50L(φ340×550) mm |
75L(φ400×600) mm |
100L(φ440×650) mm |
|
 working pressure |
0.22MPa |
|||
|
Working temperature |
134℃ |
|||
|
Max working pressure |
0.23 Mpa |
|||
|
Heat average |
≤1℃ |
|||
|
Timer |
0~99min  or 0~99hour59min |
|||
|
Adjustment of temperature |
105~134℃ |
|||
|
Power |
2.5Kw/AC220V.50Hz | 3Kw/AC220V.50Hz |
4.5Kw/AC220V.50Hz |
|
|
Overall dimension |
470×450×1020(mm) |
520×500×1150(mm) |
550×530×1180 (mm) |
580×560×1290 (mm) |
|
Transport dimension |
540×540×1140(mm) |
580×580×1250(mm) |
610×610×1280(mm) |
640×640×1360(mm) |
|
G.W/N.W |
    81Kg/63Kg |       94Kg/ 74Kg |     113Kg/ 93Kg |    125Kg/ 105Kg |
