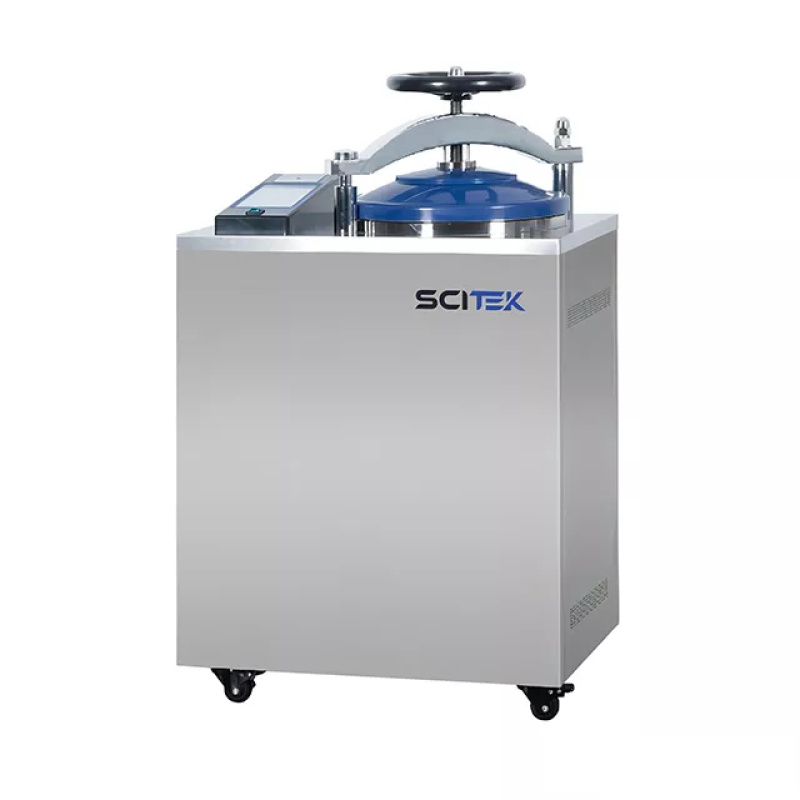

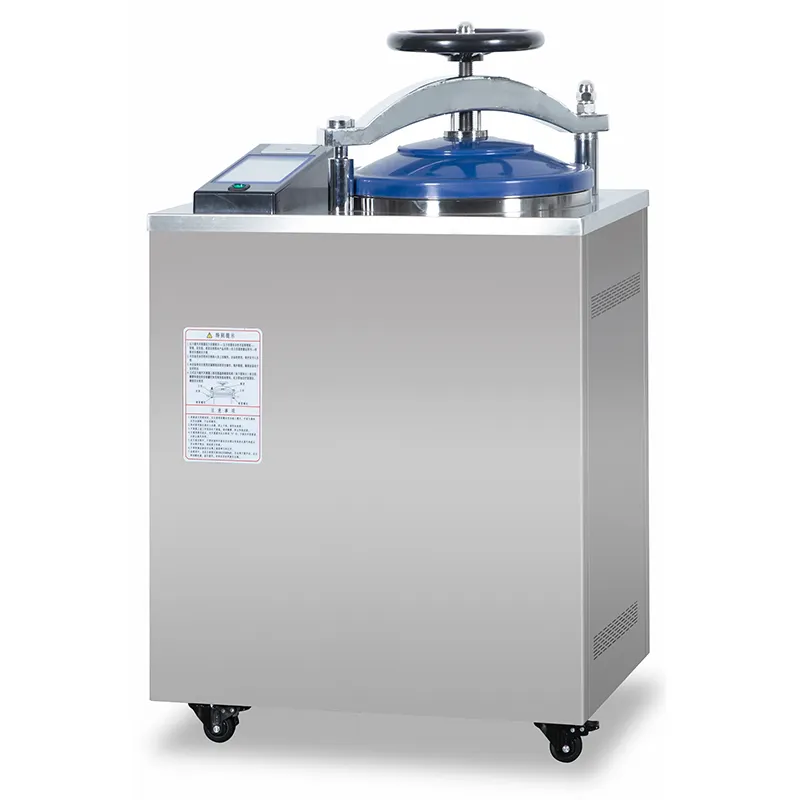

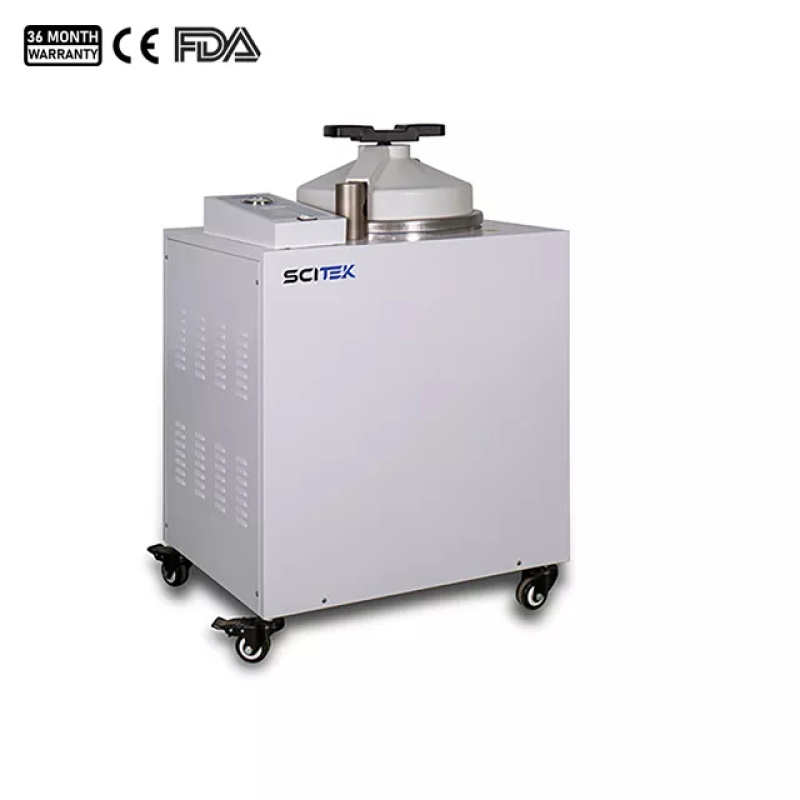

Vertical Pulse Vacuum Steam Autoclave

These Vertical Autoclave are well known for their durability, high Performance and as a trusted brand

Vertical Pulse Vacuum Steam Autoclave is suitable for use in sterilisation applications where higher requirements for sterilisation results are required.

Vertical Pulse Vacuum Steam Autoclave Features:

The handwheel panning and quick-open structure allow you to operate the machine quickly,
and the microcomputer automatic control allows you to set any parameters.
The operation is very flexible.
Three times pre-evacuation
Equipped with stainless steel drum or basket, high-quality stainless steel matrial, good corrosion resistance
LED touchscreen display and standard test interface, easy and fast to set and view the sterilization parameters.
Self-expanding seal
With a drying function and external steam generator, cold air is automatically vented and steam is automatically discharged after sterilization.
Safety interlocks for safe operation with automatic protection functions:Over-temperature protection.Over-pressure self-discharge protection.Low water level protection.Automatic water to prevent dry burning.Buzzer reminder after sterilization and automatic shutdown.

Model	ST-V35PVM	ST-V50PVM	ST-V75PVM	ST-V100PVM
Volume	35L	50L	75L	100L
Power	3.5kW	3.5kW	4.5kW	4.5kW
Voltage	AC 220V, 50HZ
Design Pressure	0.25Mpa
Design Temperature	139℃
Rated Working Pressure	0.22Mpa
Rated Working Temperature	134℃
Sterilization Temperature	116℃~134℃
Sterilization Time Setting Range	4~120 min
Temp Accuracy	±1℃
Drying Time Setting Range	0~240min
Chamber Size (mm)	Ø350×400	Ø400×505	Ø400×655	Ø450×650
Bucket Size	Ø330×320	Ø380×430	Ø380×560	Ø420×540
Basket Size (optional)	Ø320×350	Ø360×280×1	Ø360×280×2	Ø410×300×2
Sizes(W×D×H)(mm)	698×498×940	630×500×1180	725×525×1180	760×560×1260
Shipping Size (W×D×H)(mm)	790x610x1130	800x600x1230	840x610x1310	870x650x1380
N.W./G.W. (kg)	115/130	118/138	124/150	132/160

Vertical Pulse Vacuum Autoclave

Price range: R68,765.00 through R120,432.00

Description

Model	ST-V35PVM	ST-V50PVM	ST-V75PVM	ST-V100PVM
Volume	35L	50L	75L	100L
Power	3.5kW	3.5kW	4.5kW	4.5kW
Voltage	AC 220V, 50HZ
Design Pressure	0.25Mpa
Design Temperature	139℃
Rated Working Pressure	0.22Mpa
Rated Working Temperature	134℃
Sterilization Temperature	116℃~134℃
Sterilization Time Setting Range	4~120 min
Temp Accuracy	±1℃
Drying Time Setting Range	0~240min
Chamber Size (mm)	Ø350×400	Ø400×505	Ø400×655	Ø450×650
Bucket Size	Ø330×320	Ø380×430	Ø380×560	Ø420×540
Basket Size (optional)	Ø320×350	Ø360×280×1	Ø360×280×2	Ø410×300×2
Sizes(W×D×H)(mm)	698×498×940	630×500×1180	725×525×1180	760×560×1260
Shipping Size (W×D×H)(mm)	790x610x1130	800x600x1230	840x610x1310	870x650x1380
N.W./G.W. (kg)	115/130	118/138	124/150	132/160
