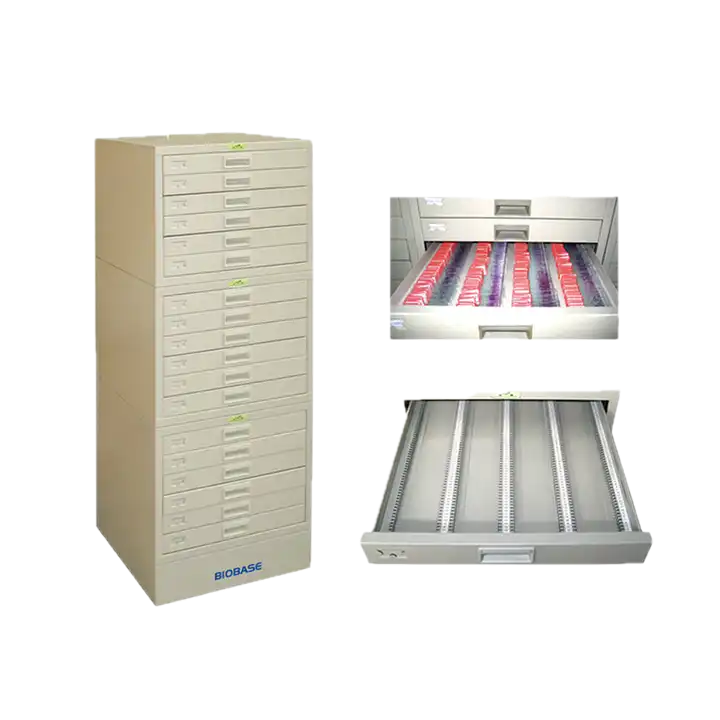

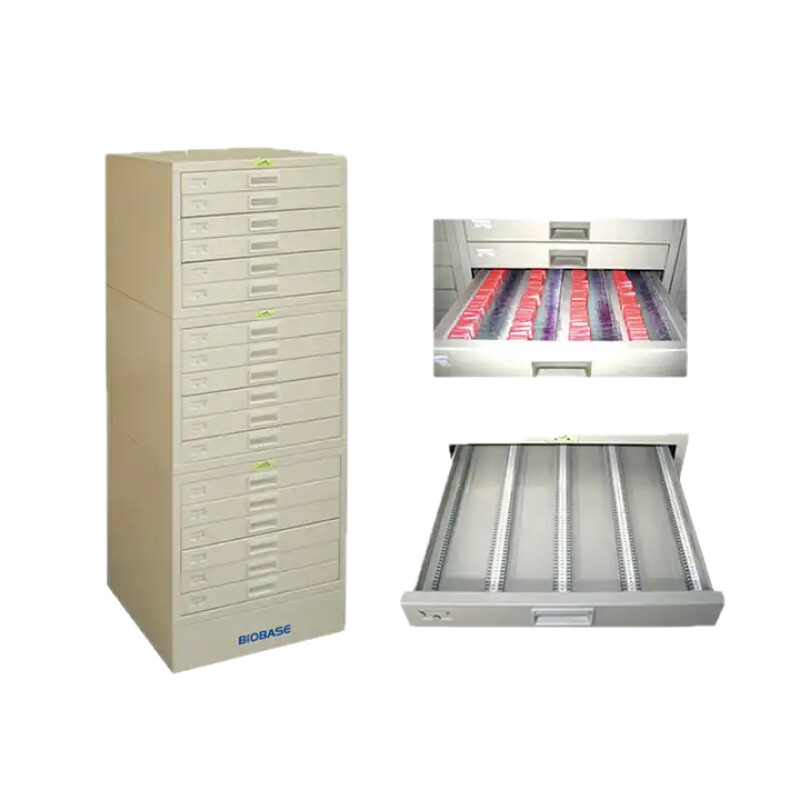

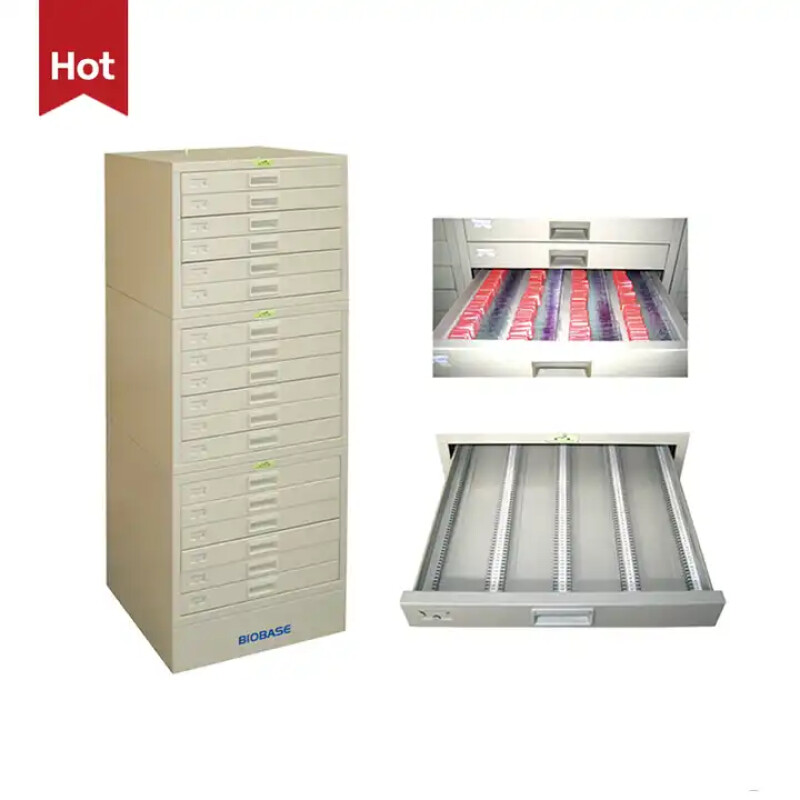

Slide Storage Cabinet 18 Drawers
It is used to organize and protect microscope slides after examination or staining. The cabinet ensures safe, accessible, and long-term storage. It is essential in clinical and research pathology labs.
Slide Storage Cabinet 18 Drawers
1: When is a Pathology Slide Storage Cabinet used?
It is used to organize and protect microscope slides after examination or staining. The cabinet ensures safe, accessible, and long-term storage. It is essential in clinical and research pathology labs.
2: Can it handle large volumes of slides?
Yes, these cabinets are designed to hold thousands of slides across multiple drawers. They support batch filing by case, date, or patient ID. Expandable models help manage growing archives.
3: Can different indexing or labelling systems be applied?
Yes, each drawer features label holders or spaces for coded tagging. They support barcode systems or manual labelling. Proper indexing improves retrieval efficiency.
4: When should the drawers be cleaned?
Clean the drawers regularly to remove dust or potential slide residue. Use lint-free cloths and avoid harsh chemicals. Scheduled maintenance helps preserve sample quality.
5: Can it integrate with digital slide management systems?
Yes, it can be paired with barcode-labelled slides and digital logs. This hybrid setup improves organization and traceability. Slide scanners can further complement digital workflows.
Slide Storage Cabinet 18 Drawers
Pathology Laboratory 18 Drawers Metal Microscope Slide Storage Cabinet
|
Model
|
BKC-S400
|
BKC-PB450
|
BKC-SS450
|
|
|
Capacity
|
72 Drawers
(12 layers*6 grid, plus a base) Loading: 760*72=54720 pcs glas slides |
18 Drawers
(3 layers*6 grid, plus a base) Loading: 12000 pcs paraffin |
18 Drawers
(3 layers*6 grid, plus a base) Loading: 4464 or 8928 pcs glass slides |
|
|
Material
|
Cabinet
|
Cold-rolled steel plate.
Surface Treatment: Degrease oil, Table regulator, Zinc parkerising , Passivation, Powder spraying |
||
|
Drawer
|
Specialized slide drawer, ABS slide plate
|
|||
|
Slot
|
Made by special mold
|
|||
|
Mark Groove
|
Integration forming
|
|||
|
External Size(W*D*H)
|
403*478*1625mm
|
450*478*1295mm
|
450*478*1295mm
|
|
|
Package Size(W*D*H)
|
570*490*430mm(1-3 layers)
570*490*430mm(4-6 layers) 570*490*430mm(7-9 layers) 570*490*560mm (10-12 layers+Base stand) |
550*520*440mm(1st layer)
550*520*440mm(2nd layer) 550*520*570mm (3rd layer+Base stand) |
550*520*440mm(1st layer)
550*520*440mm(2nd layer) 550*520*570mm (3rd layer+Base stand) |
|
|
Gross Weight
|
110kg
|
82kg
|
80kg
|
|
