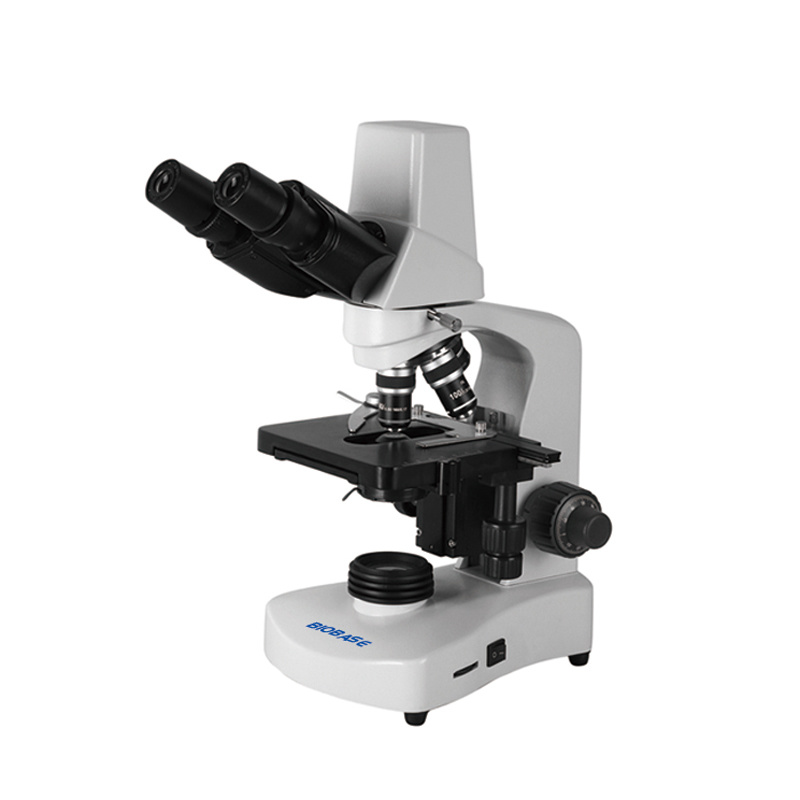

Biological Microscope-Build In Camera
- -Build In Camera
Lead Time: 3-4 Weeks
Specification of Microscope
- Biological Microscope-Build In Camera
- Biological Microscope-Build In Camera, is Suitable for hospital /medical laboratories, University research labs and microbiological labs.
Specification
|
Model
|
BMB-117M
|
BMB-300M
|
|||
|
Viewing Head
|
Compensation Free Binocular Head, Inclined at 30°, Interpupilary Distance 48-75mm
|
√
|
√
|
||
|
Camera
System |
Valid Pixel
|
1280*1024(1.3M Pixel)
|
√
|
||
|
1600X1200 (2.0M Pixel)
|
●
|
||||
|
2048*1036 (3.0M Pixel)
|
√
|
||||
|
2052*1944 (5.0M Pixel)
|
●
|
||||
|
Output Mode
|
USB2.0
|
√
|
√
|
||
|
Operation System
|
WINDOWS7/8 2000 / XP/ VISTA
|
√
|
√
|
||
|
Software
|
Scope Image 9.0
|
√
|
√
|
||
|
Range of Viewing Field
|
>90%(BMB-117M ); 18mm(BMB-300M)
|
√
|
√
|
||
|
Eyepiece
|
WF10×/ 18
|
√
|
√
|
||
|
P16×/ 11
|
●
|
||||
|
Extra wide filed eyepiece EW10×/ 20 with diopter
adjustment |
●
|
||||
|
Objective
|
Achromatic Objective 4×,10×,40×,100×
|
√
|
|||
|
Infinite plan Achromatic Objective 4×,10×,40×,100×
|
√
|
||||
|
Infinite Plan Achromatic Phase Objective 10×,20×,40×,100×
|
●
|
||||
|
Oil Darkfield Objective with Iris Diaphragm 100×（NA0.36-1.25）
|
●
|
||||
|
Nosepiece
|
Backward Quadruple Nosepiece
|
√
|
|||
|
Quintuple Nosepiece
|
●
|
||||
|
Quadruple Nosepiece
|
√
|
||||
|
Stage
|
Double Layers Mechanical Stage 140*140mm, Moving range 75*50mm
|
√
|
√
|
||
|
Condenser
|
Abbe NA1.20 with Iris Diaphragm & Fliter
|
√
|
|||
|
Swing Condenser N.A.0.9/0.25
|
√
|
||||
|
Turret Phase Contrast Condenser
|
●
|
||||
|
Dark Field Condenser (Dry)
|
●
|
||||
|
Dark Field Condenser (Oil)
|
●
|
||||
|
Focusing
|
Coaxial Coarse & Fine Adjustment System, Range 24mm, Fine Division 0.004mm
|
√
|
|||
|
Coaxial Coarse & Fine Adjustment System, Range 20mm
|
√
|
||||
|
Illumination
|
LED 3W, Brightness Adjustable
|
√
|
|||
|
Halogen Lamp 6V/ 20W, Brightness Adjustable
|
●
|
||||
|
S-LED Powerful Illumination
|
√
|
||||
|
Power Supply
|
AC 110-220V, 50/60HZ
|
√
|
√
|
||
|
Accessories
|
Phase Contrast Kit
|
●
|
●
|
||
|
Dark-Field Attachment
|
●
|
●
|
|||
|
Polarization Attachment
|
●
|
●
|
|||
|
Package Size
|
396*262*492(BMB-117M), 334*334*533(BMB-300M)
|
√
|
√
|
||
|
Gross Weight
|
7.5kg (BMB-117M), 12.5kg (BMB-300M)
|
√
|
√
|
||
