BIOBASE

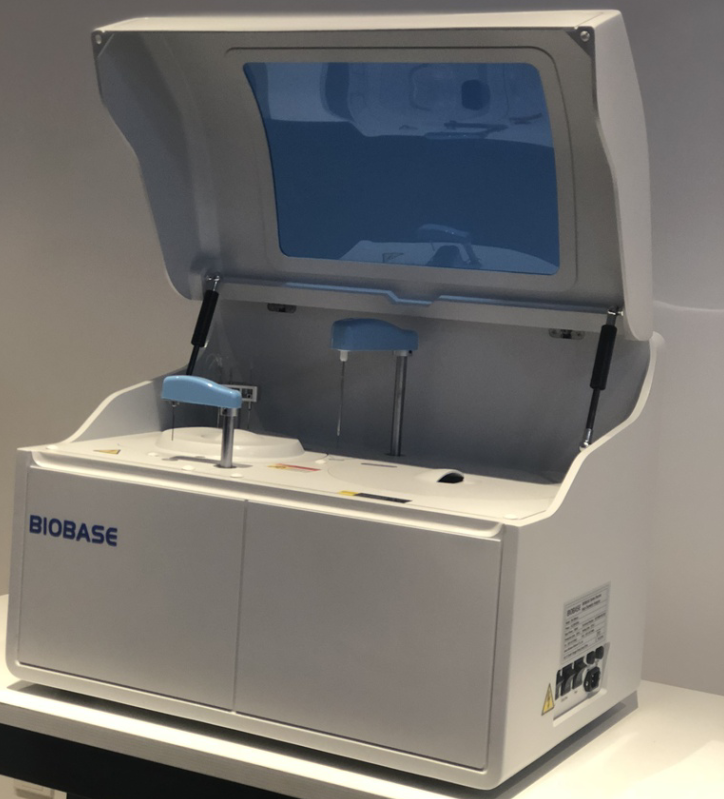

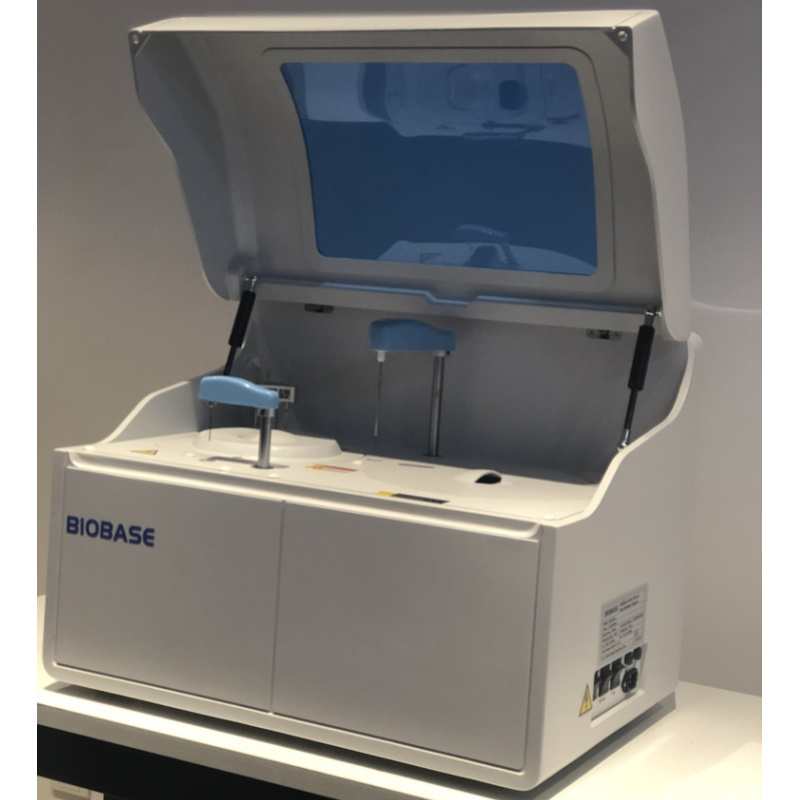

Clinical Blood Chemistry Analyzer

In stock
Clinical Blood Chemistry Analyzer

R99,200.00

Lead Time: 4-6 Weeks

Description



Laboratory Equipment Biochemistry Analyzer Lab Clinical Blood Chemistry Analyzer



Lead Time: 4-6 Weeks

Technical Parameter:

Overall

Performance

Model

BK-200mini

Throughput

200 Tests/hour

Analysis Method

End-point, Fixed-time, Rate(Kinetic)

Sample & Reagent System

Sample Positions

37 sample positions

Reagent Position

28 reagent positions

Sample Volume

2~70μL

Reagent Volume

20~350μL

Probe

Liquid level sensor function, anti-collision function.

Probe Washing

Automatic washing interior and exterior

Reagent Cooling

Refrigerated tray with independent switch

Reaction System

Temperature Control

37+0.1℃, real-time monitoring

Cuvettes

48 reusable cuvettes,optical length 6mm

Mixer Probe

Independent stirring

Washing

Automatic cuvettes washing

STAT function

YES

Optical System

Light Source

6V/10W halogen lamp

Spectrophotometry

Post-spectral spectrophotometry

Wavelength

340,405,450,510,546,578,630,700nm

Absorbance

0~3.0Abs

Calibration & QC

Calibration

Linear:K factor, 1-point ,2-point and multipoint liner Non-Linear:

Spline,Polygon,Index,Ogarithm,Logit-4P, Logit-5P

Quality Control

Real-time QC, Westgard multi rule, Cumulative Sum Check,Twin Plot(2D)

Data Management

Software

Windows 7/8/10 , 32or 64bit

LIS System

Bi-direction,support HL7 protocol

Interface

LAN port access

Printer

External,multiple reporting mode available

Working Conditions

Power Supply

AC220V+10%,50/60Hz, 110V+10%,60Hz, 300W

Temperature

10℃~30℃

Water

 Consumption

Deionized water:3L/H

Humidity

30-80%

Size & Weight

Size (W*D*H)

625*425*460mm

Net Weight

36kg

Package Size (W*D*H)

720*535*740mm

Gross Weight

50kg



Additional information

Weight 50 kg
Dimensions 62.5 × 42.5 × 46.0 cm
