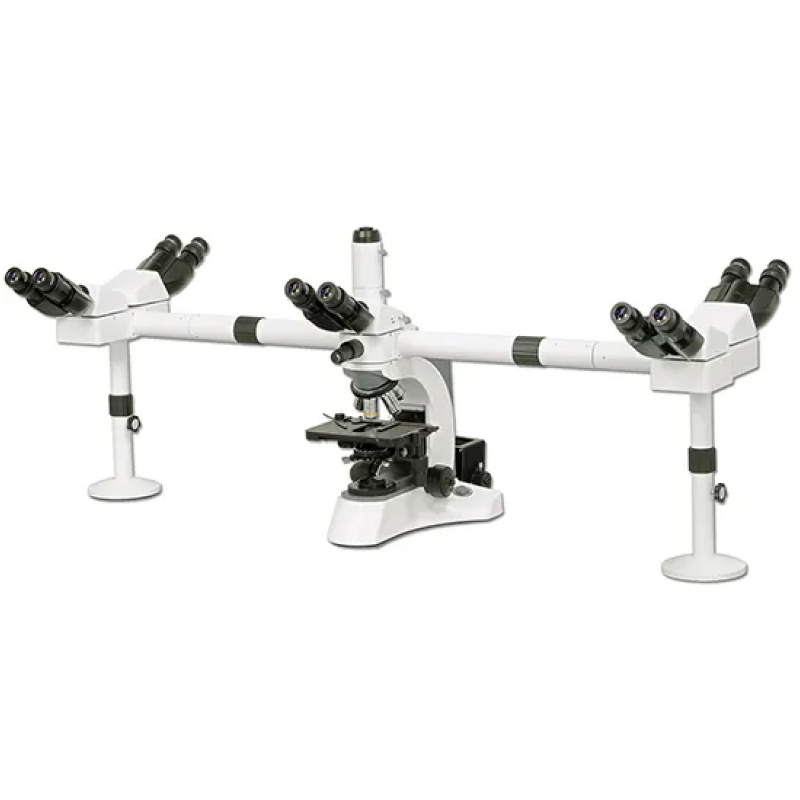

Microscope Multi-Head BS-2080MH10
Lead Time: 3-4 Weeks
- Microscope Multi-Head BS-2080MH10
Introduction
BS-2080MH Series Multi-Head Microscopes are high level microscopes equipped with multi-head for more persons to observe specimen at the same time.
BS-2080MH Series Multi-Head Microscopes are high level microscopes equipped with multi-head for more persons to observe specimen at the same time.
– With the features of infinite optical system, effective high brightness illumination,
– LED pointer and images coherence
– they are widely used in clinical medicine, scientific research and teaching demonstration areas
Application
They are mainly used in medical teaching and biological teaching.
They are mainly used in medical teaching and biological teaching.
They also can be used for biological analysis for more experts at the same time.
– They can be widely used in medical and sanitary establishments, laboratories, institutes, colleges and universities.
Specification
– Brand: BestScope
-Multi-Head Microscope BS-2080MH10
Item
|
Specification
|
BS-2080
MH4/4A |
BS-2080
MH6 |
BS-2080
MH10 |
Optical System
|
Infinite Optical System
|
●
|
●
|
●
|
Viewing Head
|
Seidentopf Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm
|
1PC
|
1PC
|
1PC
|
Seidentopf Binocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm
|
1PC
|
2PCS
|
4PCS
|
|
Eyepiece
|
Extra Wide Field Eyepiece EW10×/ 20mm
|
4PCS
|
6PCS
|
10PCS
|
Nosepiece
|
Backward Quintuple Nosepiece
|
●
|
●
|
●
|
Objective
|
Infinite Plan Achromatic Objective 4×, 10×, 40×, 100×
|
●
|
●
|
●
|
Infinite Plan Achromatic Objective 20×, 60×
|
○
|
○
|
○
|
|
Condenser
|
Swing Condenser N.A.0.9/ 0.25
|
●
|
●
|
●
|
Focusing
|
Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.001mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.1mm per Rotation,
Moving Range 24mm |
●
|
●
|
●
|
Stage
|
Double Layers Mechanical Stage 185×142mm, Moving Range 75×55mm
|
●
|
●
|
●
|
Kohler Illumination
|
External Illumination, Halogen Lamp 24V/ 100W
|
●
|
●
|
●
|
5W LED Illumination
|
○
|
○
|
○
|
|
Pointer
|
Green LED Pointer, Brightness Adjustable
|
●
|
●
|
●
|
Dual Color LED Pointer, Brightness Adjustable
|
○
|
○
|
○
|
|
Photo Adapter
|
Used to connect Nikon or Canon DSLR camera to the microscope
|
○
|
○
|
○
|
Video Adapter
|
C-Mount 1×
|
○
|
○
|
○
|
C-Mount 0.5×
|
○
|
○
|
○
|
