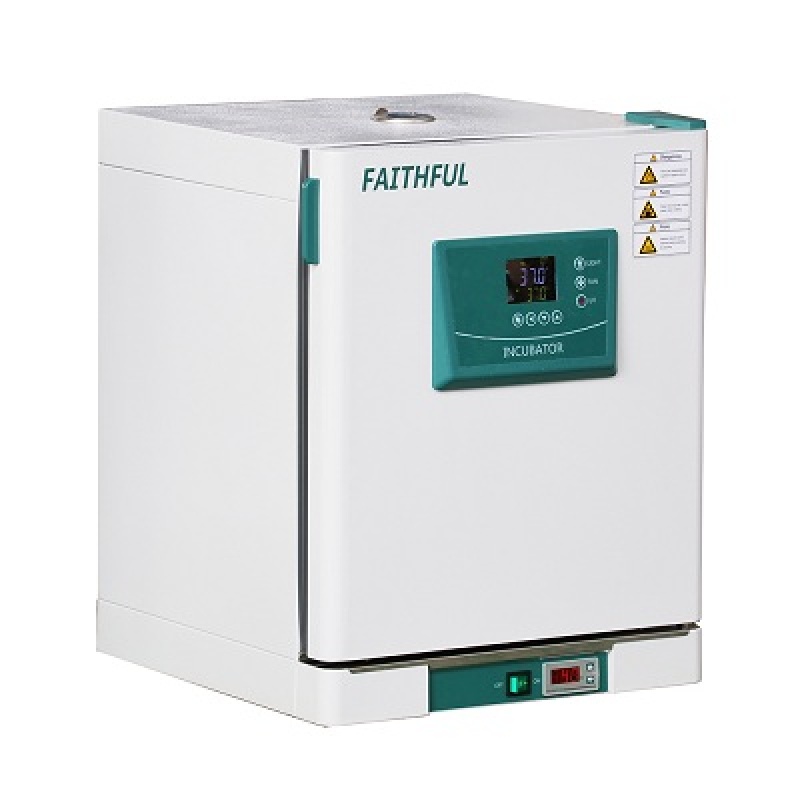

Digital Incubator-45L
Incubator
LCD screen temp range: RT+5-70C, with LED light, UV lamp, fan function and digital independent temp limiter.
Uses:
It is applied in :
- industrial and mining enterprise
- food processing industry
- agriculture,
- biochemistry and medicine industry for bacteria and microorganism culturing.
Main Parameters:
Model | DH45L | DH65L | DH125L | DH210L | |
Cycle Mode | Breeze circulation | ||||
Function | Tem. Range | RT+5-65℃ | |||
Tem. Resolution Ratio | 0.1℃ | ||||
Tem. Motion | ±0.5℃ | ||||
Tem. Uniformity | ±0.8℃ | ||||
Structure | Inner Chamber | Mirror stainless steel | |||
Outer Shell | Cold rolling steel electrostatic spraying exterior | ||||
Insulation layer | Polyurethane | ||||
Heater | Mica electrothermal film | ||||
Power Rating | 0.35kW | 0.45kW | 0.6kW | 0.7kW | |
Exhaust hole | φ28mm top(with function of test hole) | ||||
Controller | Tem. control mode | PID Intelligent | |||
Tem. setting mode |
Touch button setting | ||||
Tem. display mode | Measuring temperature: LCD upper row; Setting temperature: the lower row | ||||
Timer | 0-9999 min (with timing wait function) | ||||
Operation function | Fixed temperature operation, timing function, auto stop. | ||||
Additional funciton | Breeze circle fan,LED Floodlight, UV lamp ,Sensor deviation correction, temperature overshoot self-tuning, power-off parameter memory | ||||
Sensor | PT100 | ||||
Safety device | Mechanical independent temperature limiter, over temperature sound-light alarm | ||||
Specification | Inner Chamber size(W*L*H)(mm) | 350*350*350 | 400*350*450 | 500*450*550 | 600*580*600 |
Exterior size (W*L*H)(mm) | 525*480*620 | 575*480*720 | 675*580*820 | 775*710*870 | |
Packing size (W*L*H)(mm) | 605*572*775 | 655*572*875 | 755*672*975 | 855*802*1025 | |
Volume | 45L | 65L | 125L | 210L | |
Shelf number | 7 | 9 | 13 | 14 | |
Load per rack | 15kg | ||||
Shelf space | 35mm | ||||
Supply(50/60HZ)Current rating | AC220V/1.1A | AC220V/1.1A | AC220V/2.3A | AC220V/2.7A | |
NW/GW (kg) | 27/30 | 32/35 | 45/49 | 58/63 | |
Accessory | Shelf | 2 | |||
Shelf frame | 4 | ||||
optional accessories | Shelf, USB interface, printer, recorder, External Communication, remote control, wireless SMS alarm |
