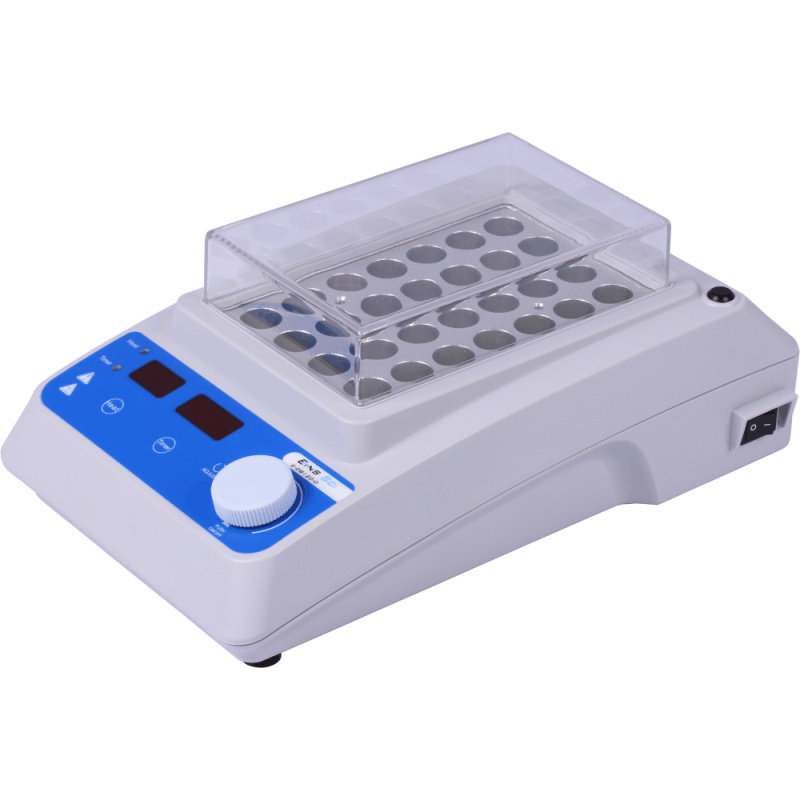

Digital ̴120°C Heating Dry Bath with Timer, LED Display,
Over temperature protection, various size heating blocks available:
check for availability of sizes, includes 1 standard size heating block
Specifications | E-DB120-D |
Heating Temperature Range [°C] | Ambient +5 to 120 |
Power [W] | 160 |
Number of Blocks | 1 |
Dimension of Blocks [mm] | 150 x 95 |
Temperature Display | LED |
Control Accuracy [°C] | ±0.5 |
Safety Temperature [°C] | 140 |
Timer | Yes |
Timer Setting Range [min] | 1 to 5999 |
Operation Type | Continuous or Timed |
Protection Class Acc. to DIN EN 60529 | IP 21 |
RS232 Computer Interface | No |
Dimensions [W x H x D] (mm) | 175 x 85 x 290 |
Weight [kg] | 1.6 without heating block |
Heating Block Material | |
Housing Material | |
Permissible Ambient Temperature [°C] | 5 – 40 |
Permissible Relative Humidity [%] | 80 |
Voltage [VAC] | 100 – 120 / 200 – 240 |
Frequency [Hz] | 50/60 |
