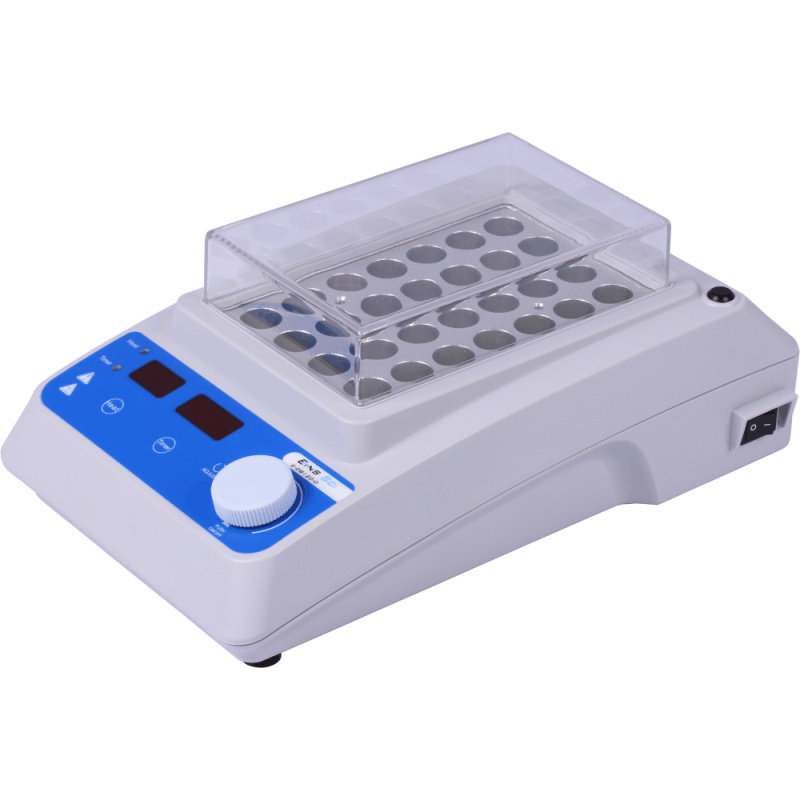

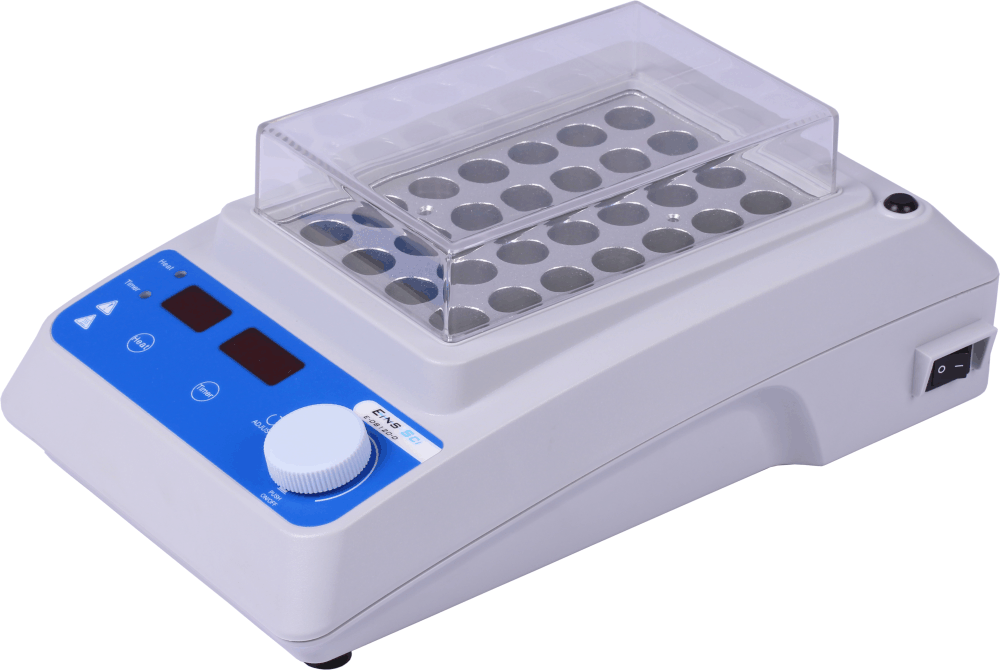

Digital Dry Bath Incubator
Digital dry bath incubators are
used in labs for temperature-sensitive procedures like enzyme reactions, molecular biology applications (such as DNA/RNA denaturation), clinical diagnostics, and chemical reactions.
They provide precise, uniform heating in a dry-block system, eliminating the need for water and avoiding risks of spillage and contamination.
Applications in various fields
- Molecular biology: Denaturation of DNA/RNA, enzyme reactions, and nucleic acid hybridization.
- Clinical diagnostics: Enzyme assays, coagulation studies, and immunoassays.
- Research and development: Biochemical assays and incubating cultures.
- Cell culture: Maintaining small volumes of cell culture media or for temperature-sensitive steps in protocols.
- Sample preparation: Controlled thawing of frozen samples and for heating samples prior to other applications.
- Chemical applications: Running chemical reactions that require precise temperature control and incubation of various reactions and assays.
Digital Dry Bath Incubator Key features and benefits
- Dry heat technology: Uses a heating element and a digital temperature control system instead of water, which eliminates issues like contamination, spillage, and cleaning.
- Uniform heating: The dry block design ensures even heat distribution to the samples, leading to consistent and reliable outcomes.
- Precision: Provides a stable and precisely controlled temperature environment crucial for sensitive experiments.
- Versatility: Many models have interchangeable blocks that can hold different types and sizes of tubes and vials, such as microtubes, vials, and microplates.
- Programmable functions: Some models allow for setting multi-step programs with different temperatures and hold times, which is useful for applications like PCR.
Digital ̴120°C Heating Dry Bath with Timer, LED Display,
Over temperature protection, various size heating blocks available:
check for availability of sizes, includes 1 standard size heating block
| Specifications | E-DB120-D |
| Heating Temperature Range [°C] | Ambient +5 to 120 |
| Power [W] | 160 |
| Number of Blocks | 1 |
| Dimension of Blocks [mm] | 150 x 95 |
| Temperature Display | LED |
| Control Accuracy [°C] | ±0.5 |
| Safety Temperature [°C] | 140 |
| Timer | Yes |
| Timer Setting Range [min] | 1 to 5999 |
| Operation Type | Continuous or Timed |
| Protection Class Acc. to DIN EN 60529 | IP 21 |
| RS232 Computer Interface | No |
| Dimensions [W x H x D] (mm) | 175 x 85 x 290 |
| Weight [kg] | 1.6 without heating block |
| Heating Block Material | |
| Housing Material | |
| Permissible Ambient Temperature [°C] | 5 – 40 |
| Permissible Relative Humidity [%] | 80 |
| Voltage [VAC] | 100 – 120 / 200 – 240 |
| Frequency [Hz] | 50/60 |
