Density Meter

Density Meter

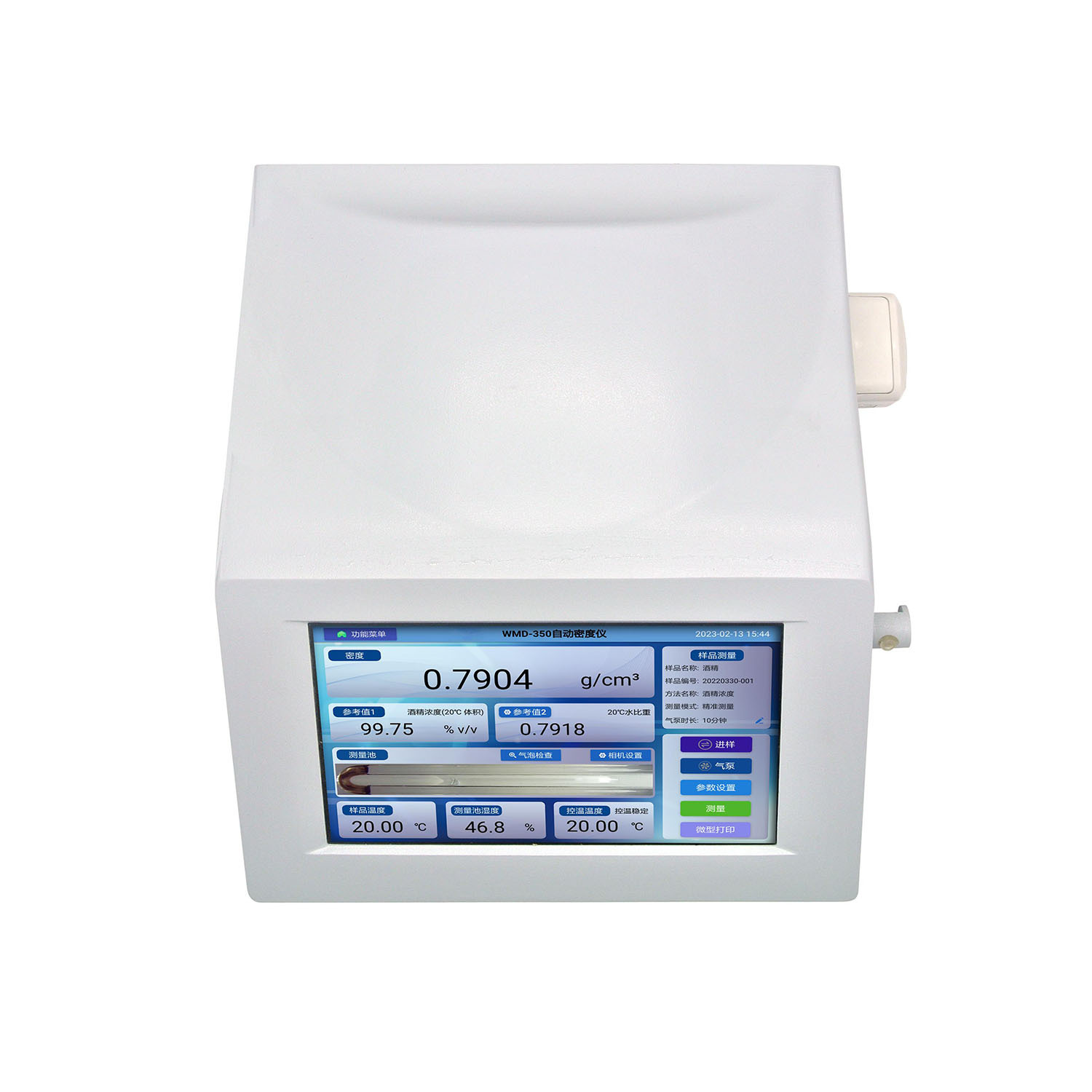

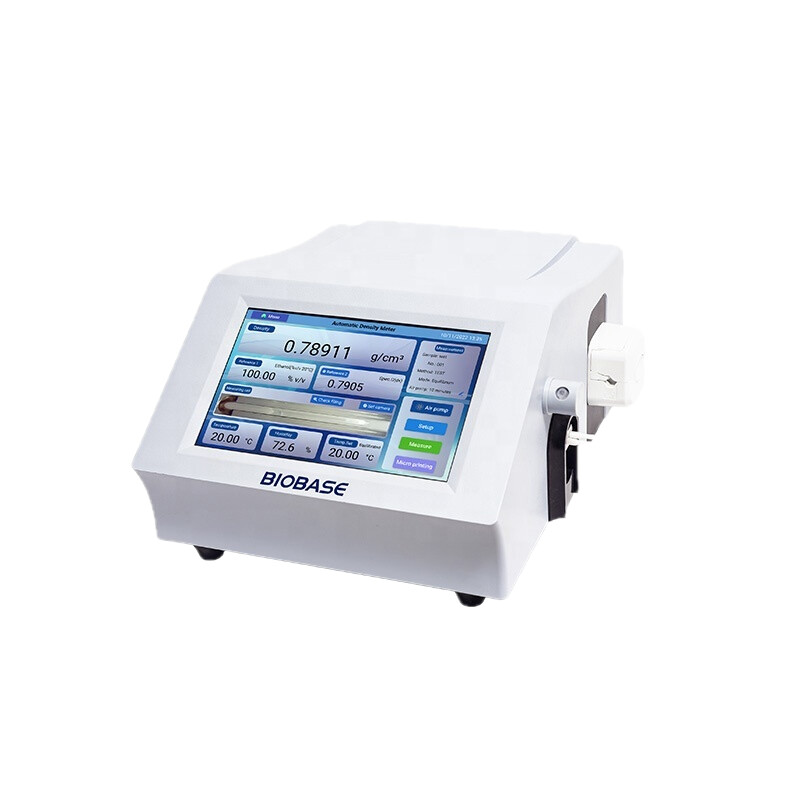

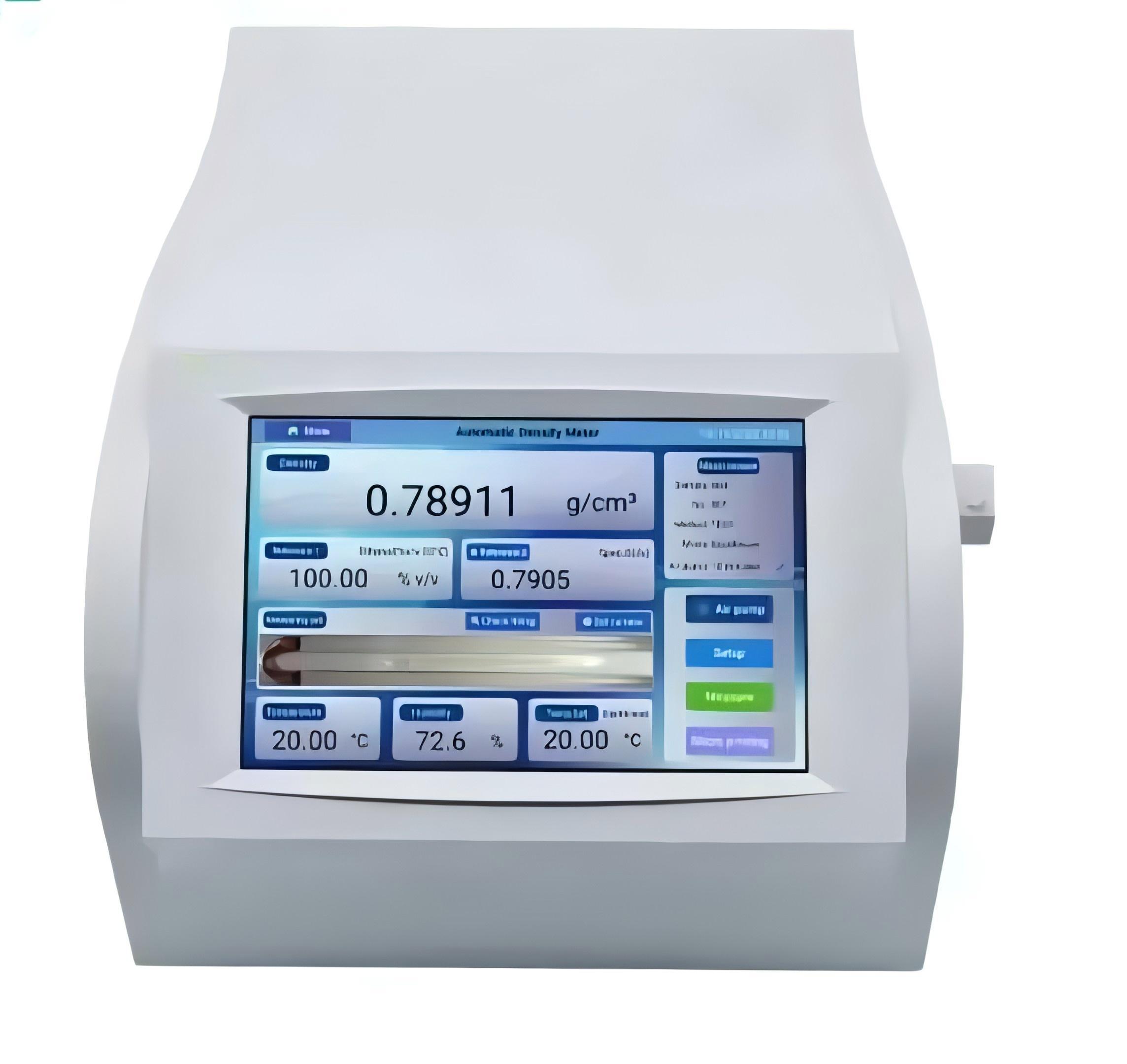

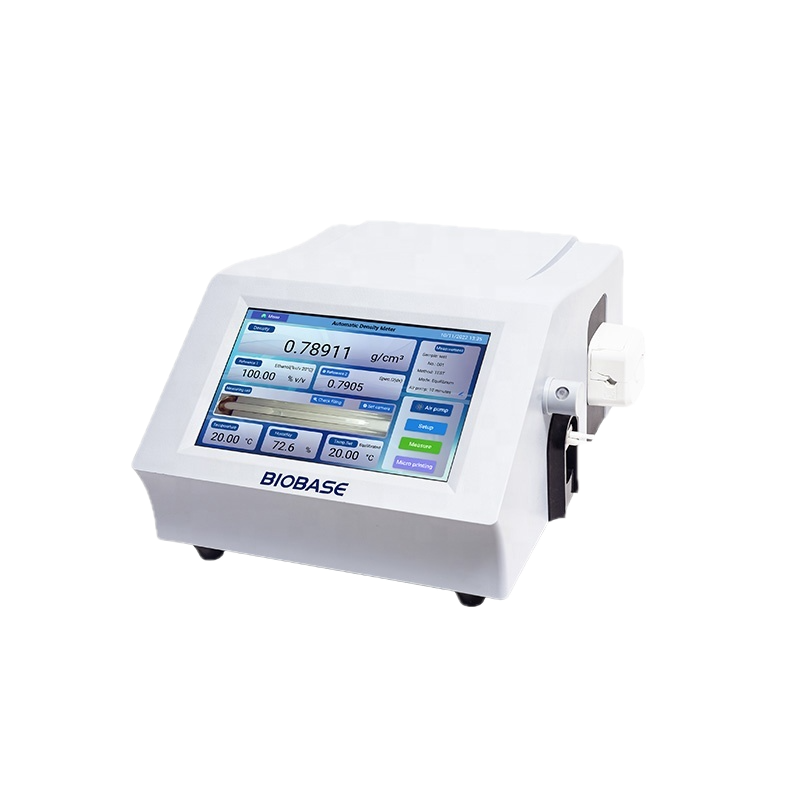

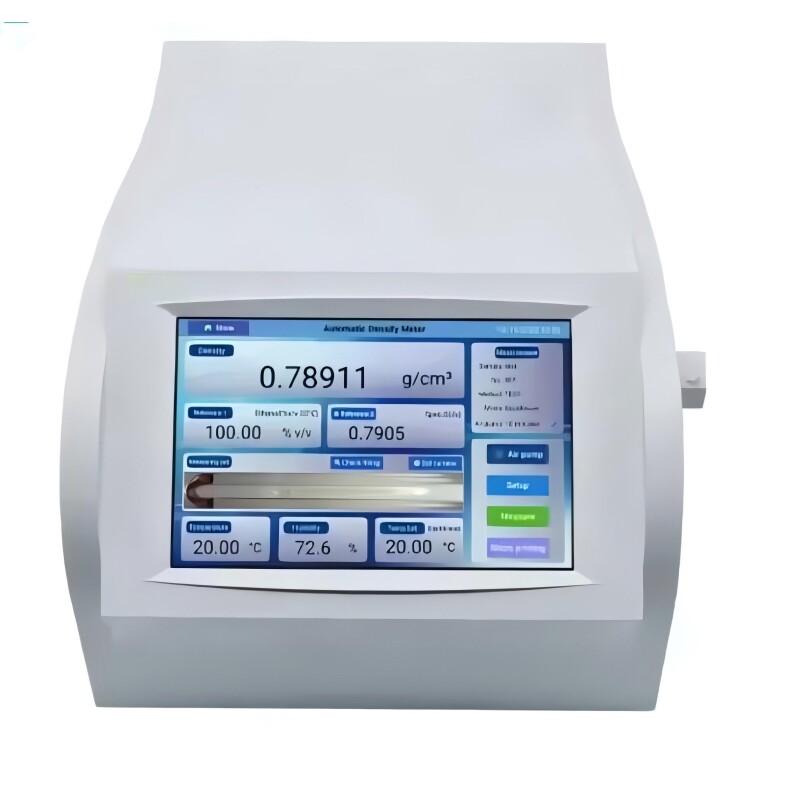

Density Meter BK-DM350A Fitted with HD Cameras for Lab Testing

A density meter is a scientific or industrial instrument used to measure the density (ρ = m/v) or specific gravity of liquids, gases, or solids.

How It Works

• Oscillating U-Tube Principle: Most modern digital meters use a hollow glass U-tube that vibrates at its natural resonant frequency. Adding a heavier sample changes the mass and shifts the vibration frequency to calculate exact density.
• Alternative Methods: Traditional or specialized tools include hydrometers (relying on buoyancy) and pycnometers (glass volume flasks).

Common Types

• Portable Handheld Meters: Compact, battery-operated units (such as the Anton Paar DMA 35) used for quick on-site field checks.
• Benchtop Digital Meters: High-precision laboratory instruments featuring Peltier temperature control and automated data tracking.
• Inline / Process Density Meters: Industrial sensors mounted directly into pipelines to monitor continuous liquid flow and concentration.

Key Applications

• Food & Beverage: Measuring sugar content (°Brix) or alcohol-by-volume (ABV) in beer, wine, and spirits.
• Pharmaceuticals & Chemicals: Ensuring raw material purity and batch compliance under standards like FDA 21 CFR Part 11.
• Petroleum & Oil: Evaluating API gravity and density of viscous or volatile hydrocarbons.

Key attributes

brand name Biobase
size 439*350*217mm
Product name Density Meter
Model. BK-DM350A
Measuring Range 0.0000~3.0000g/cm³
Measuring Resolution 0.0001 g/cm³
Measuring Accuracy ±0.0005g/cm³
Measuring Repeatability. ±0.0002g/cm³
Temp. Resolution 0.01°C
Temp. Control Range 5~50°C
Temp. Control Accuracy ±0.1°C
Temp. Control Precision. ±0.05°C

Highlights at a glance
High Accuracy: ±0.0005g/cm³ for precise density measurements.
Wide Measuring Range: 0.0000~3.0000g/cm³ for versatile applications.
HD Cameras: Enhanced visual inspection for lab testing.
Compact Design: 439*350*217mm for easy handling.
1-Year Warranty: Peace of mind for reliable performance
