Hemocytometer

Hemocytometer

A hemocytometer is a specialised glass microscope slide with a precision-engraved grid used to manually count cells and calculate their concentration per millilitre in a liquid suspension

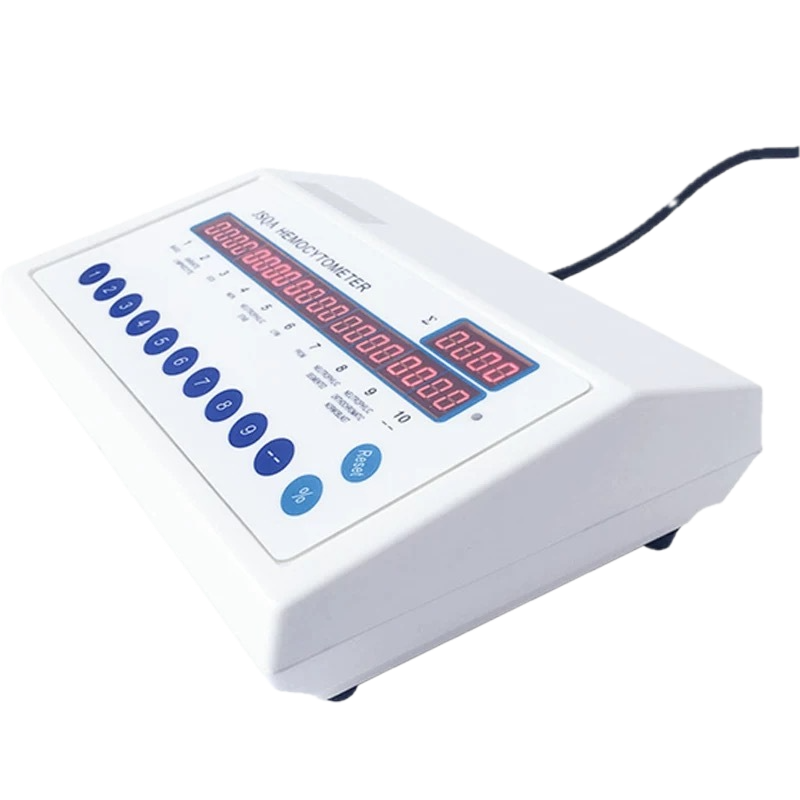

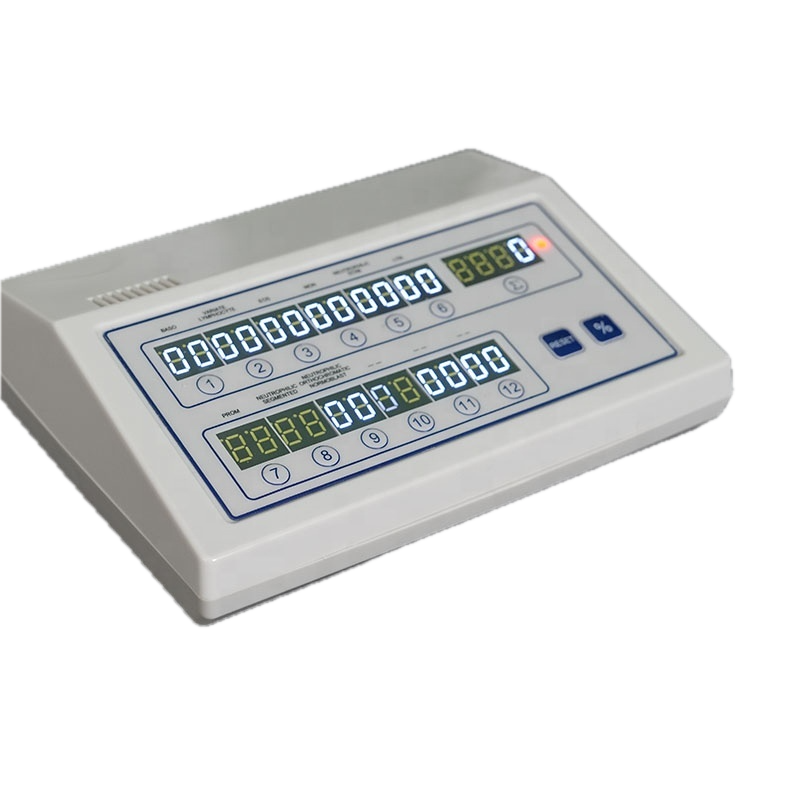

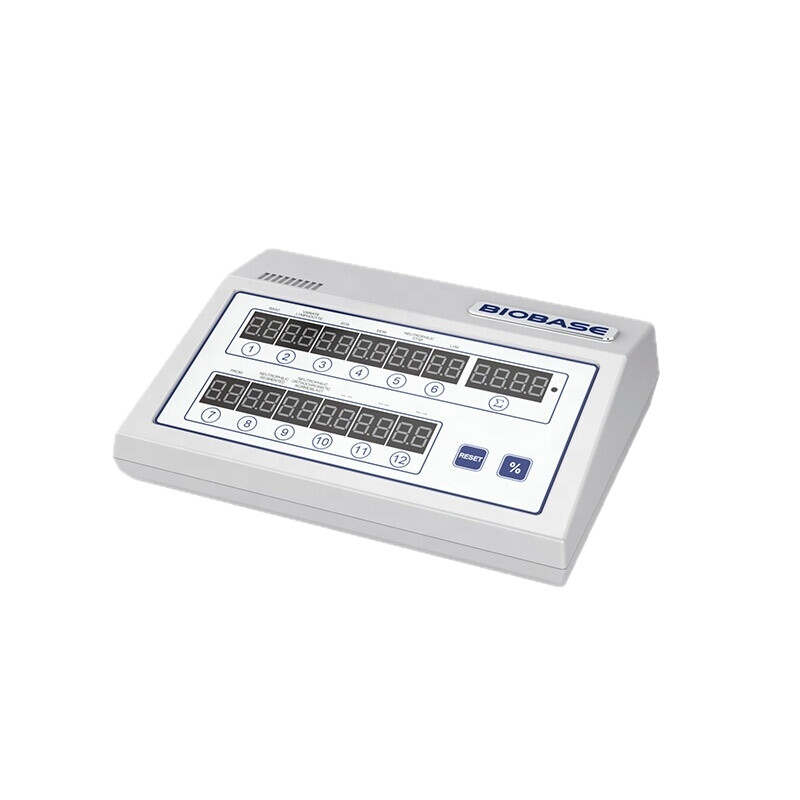

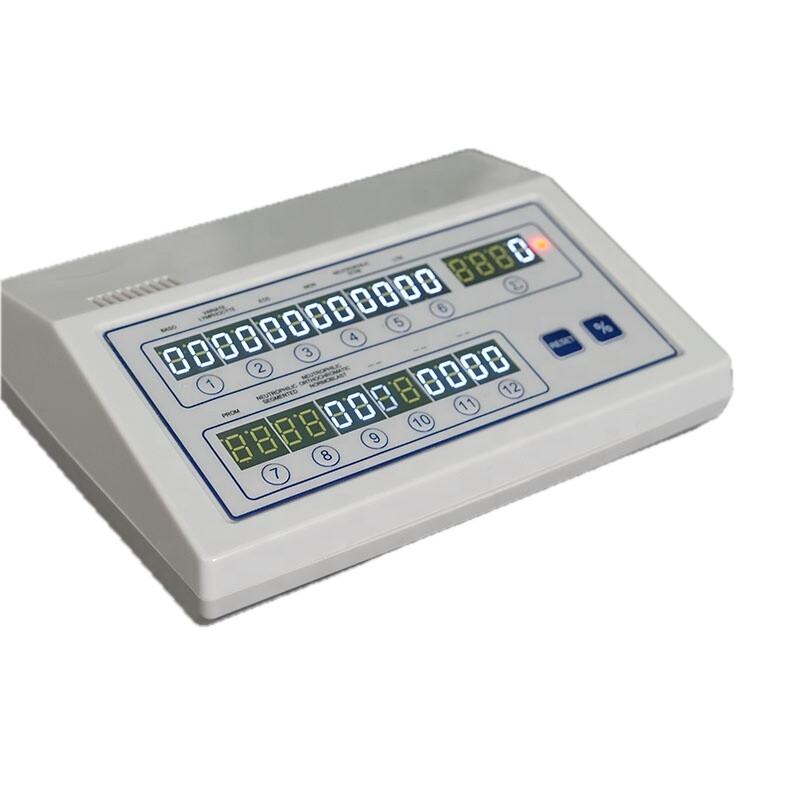

Hemocytometer is a microcomputer binary-decade 12-group counter integrated with counting, analysis and monitoring, which can simultaneously display twelve groups of data and totals, accurate and reliable, to meet the need of manual counting of clinical blood routine, especially fits for the small and middle size hospitals.
Features:
The instrument corresponds to the common eight kinds of blood cell on the eight counting keys, such as neutrophilic segmented granulocyte(NSG), lymphocyte(LYM), monocytes (MONO), eosinophil(E), basophil(B), neutrophil(NEU), myeloid， metamyelocyte. If the above eight kinds of blood cell need counting, you can directly press the corresponding count key to count.

Main Uses

• Blood Cell Counting: Originally designed to enumerate red blood cells (erythrocytes), white blood cells (leukocytes), and platelets in clinical and research settings. Slideshare +1
• Cell Culture Management: Used to measure cell density and viability (often using vital dyes like trypan blue) so researchers can seed mammalian cell cultures at optimal concentrations. YouTube·BioNetwork +2
• Microbial and Fungal Enumeration: Used to count bacteria, fungal spores, and yeast cells—such as preparing yeast for brewing or fermentation. Boston Med Supply +1
• Sperm Counting: Used in fertility evaluations to assess sperm concentration and motility in semen samples (sometimes utilizing specialized chambers like the Makler hemocytometer). Hemocytometer
• Body Fluid Analysis: Used to count cells in cerebrospinal fluid, synovial fluid, or urine samples to help evaluate inflammation or disease.

Hemocytometer

How It Works

• Fixed Volume: A coverslip rests at a known, fixed height (typically 0.1 mm) above a laser-etched grid. CASRAI +2
• Calculation: By counting the number of cells within specific sub-squares of known surface area and depth, the total concentration per milliliter is derived through standard dilution and volume formulas.

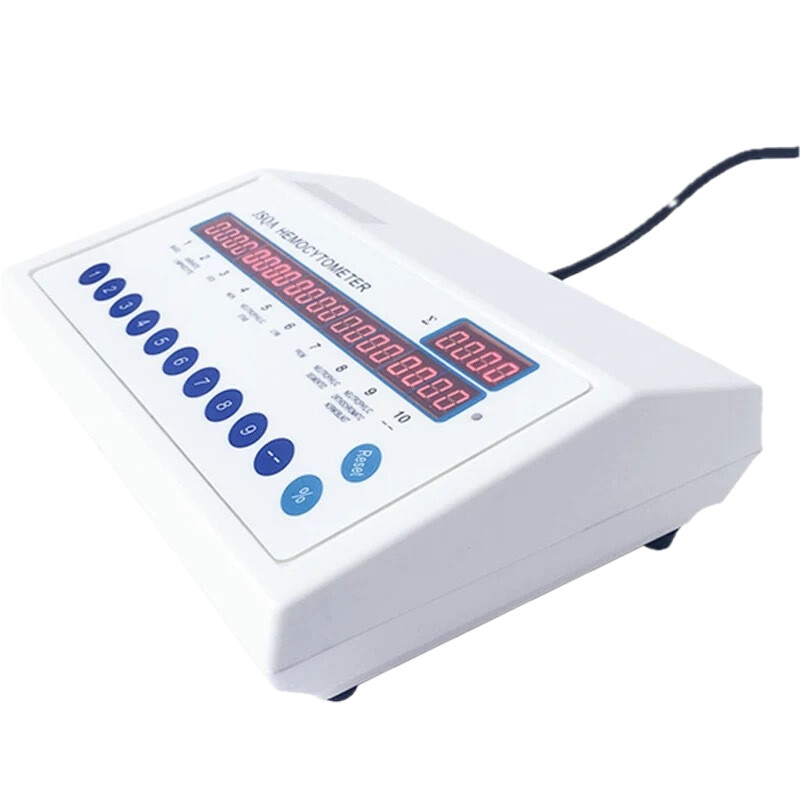

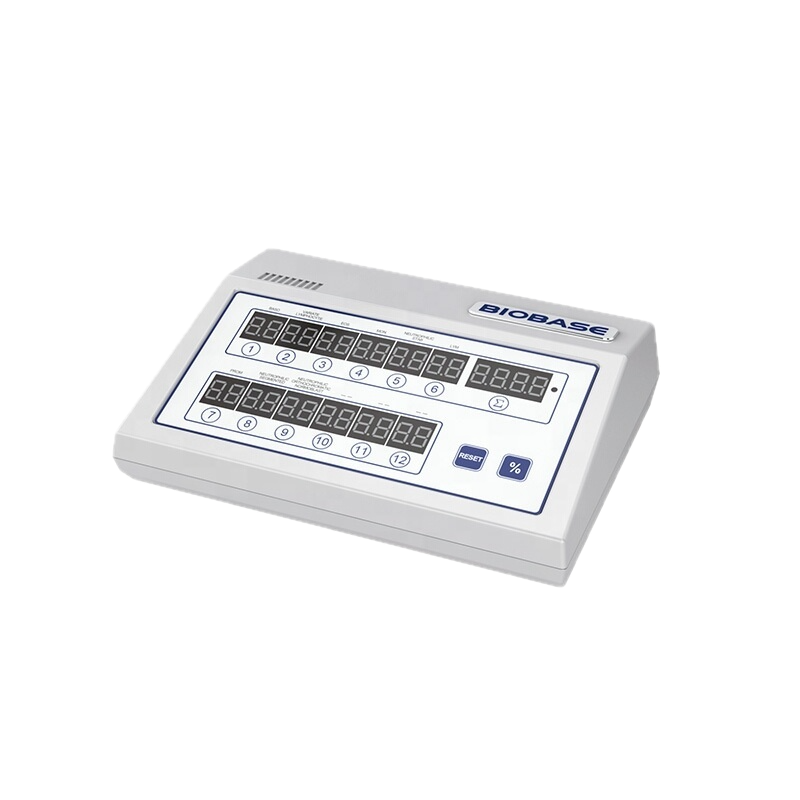

Model BK-CC10
Function Cell count and percentage calculation
Maximum Count Category 12 groups
Count Capacity of Every Group 0~99
Count Capacity of Total 0-9999
Display LED
Button Sound. Yes
Power Supply 100-240VAC，50Hz/60Hz
Power 5W
External Size 178*135*60mm
Package Size. 300*200*150mm
Net Weight 1kg
Gross Weight 1.5kg
