Vertical Laminar Air Hood Flow Cabinet

In stock
Laboratory Vertical type Laminar Air Hood Flow Cabinet


4- 6 weeks, Lead Time
SKU: CJ-1S Categories: ,

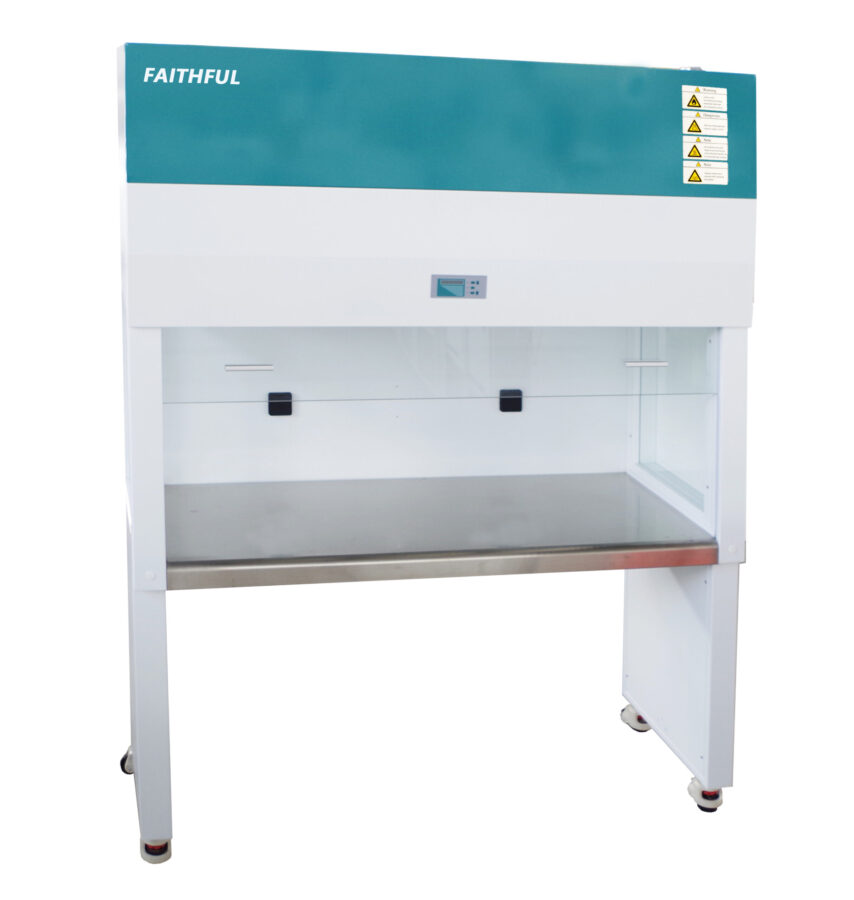

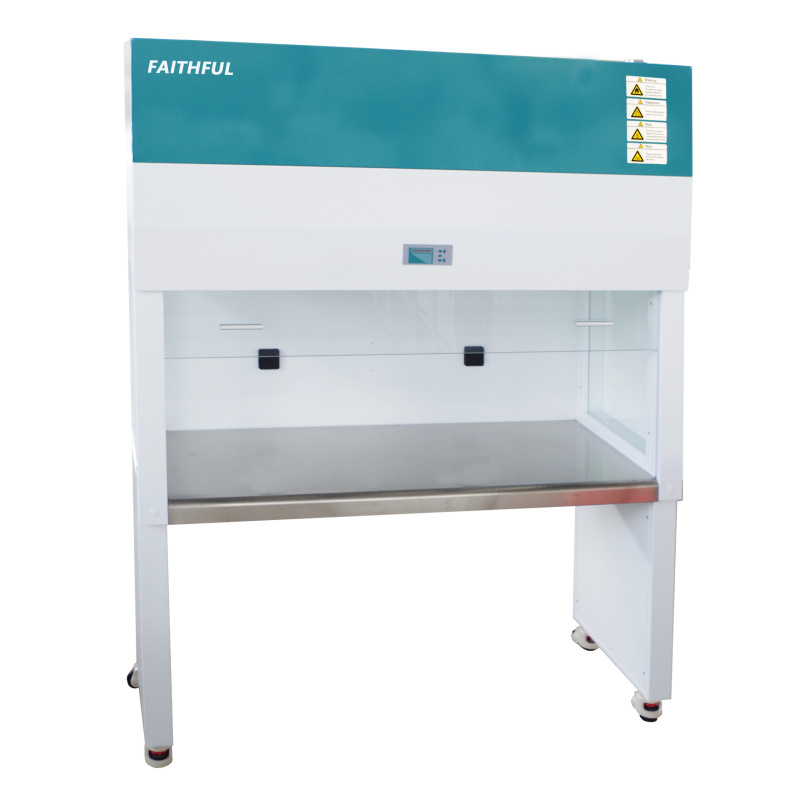

Laboratory Vertical type Laminar Air Hood Flow Cabinet




This device is widely used to provide partial cleaning work environment in the school laboratory, food processing, biochemistry, agriculture and etc.



1. Vertical laminar flow, with SUS 304 stainless steel bench board, effectively prevents external air into the cleaning work environment.

2. High quality low noise centrifugal fan ensures the stable speed. Touch type air flow control system, the five sections wind speed control, adjustable speed 0.2-0.6m/s (initial:0.6m/s; final:0.2m/s)

3. High quality filter ensures dust can be filtered more than 0.3um.

4. UV lamps and lighting control independently.

Optional separating laminar flow cabinet

Model CJ-1S

Applicable Station

one operator&two sides
 Airflow Direction  Vertical
Function Cleanliness  Class 100
Collection Efficiency ≥99.9% of 0.5um particle
Colony Count  ≤0.5/vessel (petri dish is φ90mm )
Wind Speed initial:0.6(m/s),final:0.2 (m/s)
Wind Speed Range 0.2-0.6 (m/s)
Noise Level  ≤62db
Vibration Semi-Peak Value  ≤3um
Illumination Intensity (Lx)  ≥300LX(Activity Center)
Work Surface Bearing  50kg
Composition Inner Chamber Stainless steel plate
Outer Shell Cold rolling steel electrostatic spraying exterior
Operation door Tempered Glass
HEPA Filter (mm)  820*600*50 one piece
Pre-Filter (mm)  520*490*5 one piece
Fluorescent Lamp  20W*1
UV Lamp  20W*1
Top Fan  300W one piece
Controller Display LED
Wind Speed Control Intelligent multi-level adjustable
Additional Function The bottom horizontal adjustment, one key to open and close lighting sterilization
Specification Inner Size (W*L*H)(mm)  780*670*550
Exterior Size (W*L*H)(mm)  935*725*1690
Packing Size (W*L*H)(mm)  1100*900*1385
Max Power  0.4kW
Current Rating (50/60Hz)  AC220V/1.8A
NW/GW kg  160/225



Additional information

Weight 225 kg
Dimensions 110 × 90 × 189 cm
