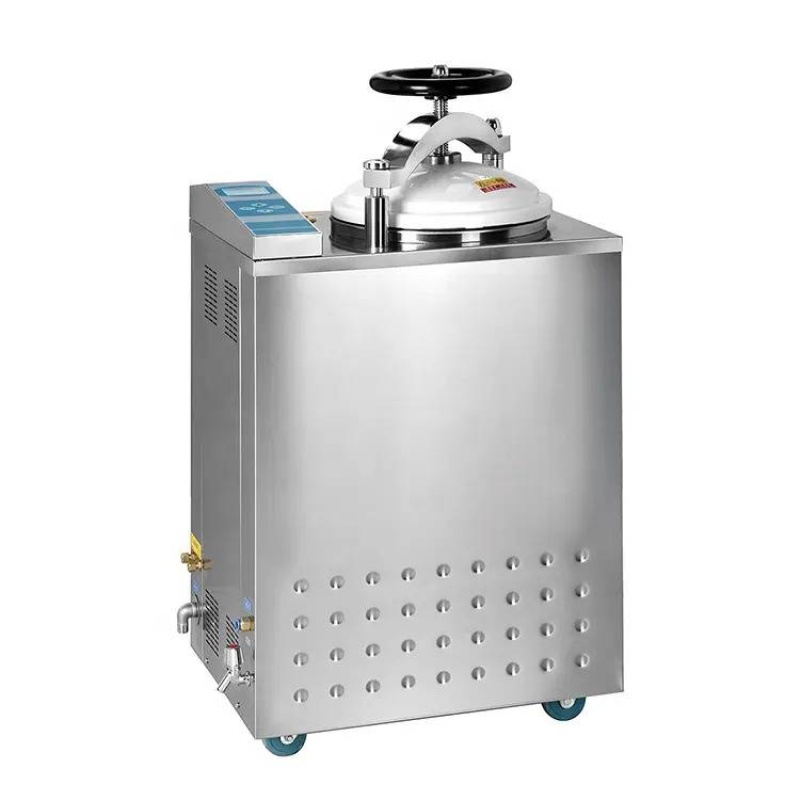

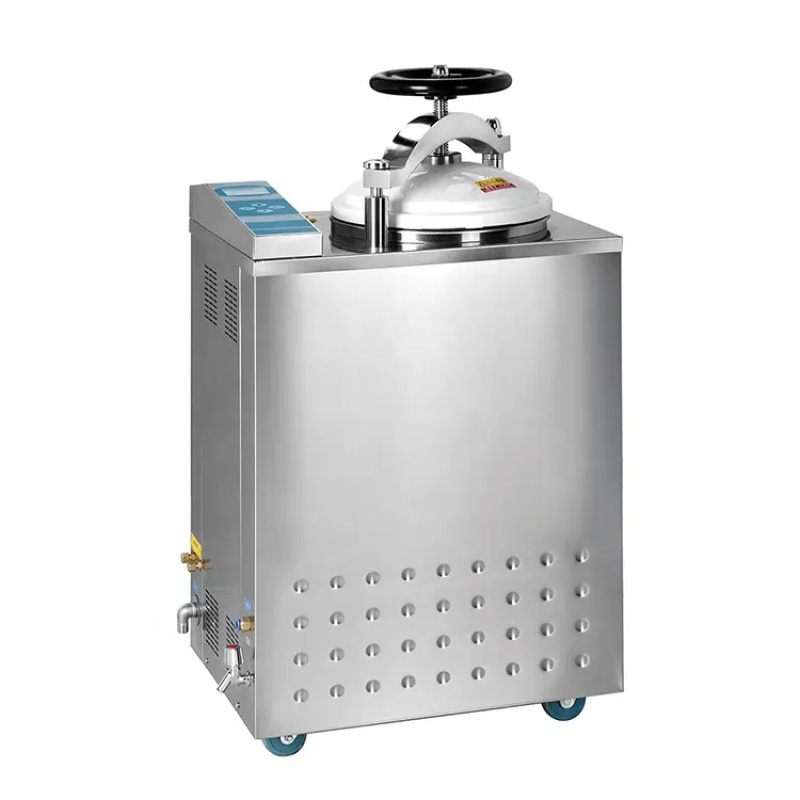

Vertical Autoclave Top Loading
Lead Time: 4-6 Weeks
- Autoclaves are assembled with heating system
- Microcomputer controlled system
- Over heat and over pressure protection system
- Which are reliable for the sterilising effects
- Convenient of operation and energy conservation.
Autoclaves are ideal equipments for clinics, scientific research institutes and other organisations to sterilise surgical instruments, fabrics, glasses, culture media etc.
Product Details
- Vertical Autoclave Top Loading
|
Material
|
stainless steel
|
Drying System
|
no
|
Printing System
|
no
|
|
Highlight Features
|
inner steam-water circulation system to prevent steam discharging and aerosols generating
automatically discharge cool air and steam after sterilization two stainless steel sterilizing baskets LCD display of working status with touch type key |
||||
|
Safety Features
|
over temperature / pressure protection
door safety lock system water-lacking protection self-inflating type seal |
||||
Product Parameters
|
Working Pressure
|
0.22 MPa
|
Max Working Pressure
|
0.23 MPa
|
|
Working Temperature
|
134 °C
|
Temperature Equilibrium
|
≤ ± 1 °C
|
|
Timer Range
|
0 min ~ 99 min or 0 min ~ 99 hrs 59 min
|
||
|
Temperature Adjust Range
|
105 °C ~ 134 °C
|
||
Product Parameters
|
Model
|
Chamber Volume
|
Overall Size (mm)
|
Transport Dimension (mm)
|
G.W. / N.W. (kg)
|
Power (kW, AC 220V, 50Hz)
|
|
LS-35HG
|
35 L, Φ 318*450 mm
|
470*450*1020
|
710*490*1130
|
104/85
|
1*2.5
|
|
LS-50HG
|
50 L, Φ 340*550 mm
|
710*465*1150
|
740*550*1280
|
122/99
|
2*1.5
|
|
LS-75HG
|
75 L, Φ 400*600 mm
|
750*510*1250
|
780*600*1380
|
146/120
|
3*1.5
|
|
LS-100HG
|
100 L, Φ 440*650 mm
|
750*510*1250
|
780*600*1380
|
148/122
|
3*1.5
|
