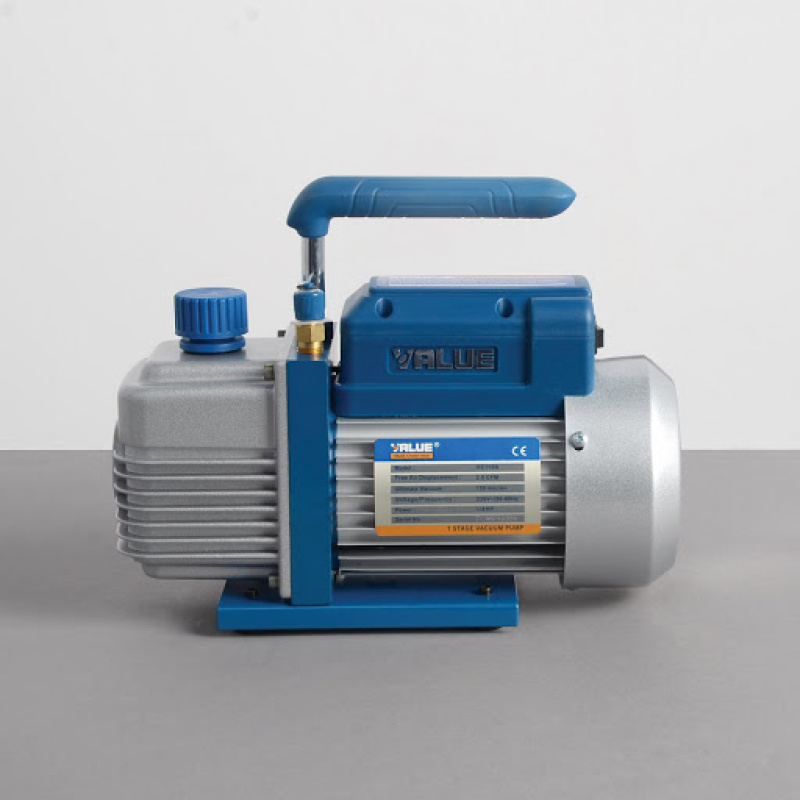

This series of single-stage vacuum pump, using direct-overall design, to make products more compact, lightweight and reasonable.
Using a large starting torque, for a special design for a low-temperature environment, to ensure that in the case of low ambient temperature in winter boot normally.
Suitable for vacuum packaging, vacuum refrigeration, vehicle maintenance, printing machinery and so a variety of vacuum suction.
Parameter / Model RS-1
Pumping speed m3 / h (L / S) 50 (HZ) 2 (0.5)
Ultimate Pressure (Pa) Pa 10
microns 75 × 10-2
Speed (r / min) 50 (HZ) 1440
Power (kw) 0.12
Voltage (V) 220
Inlet diameter (O.D.) (Mm) φ8
Noise (dBA) ≤56
Come volume (L) 0.225
Dimensions (mm) 275 × 114 × 207
Weight (Kg) 6.2KG
