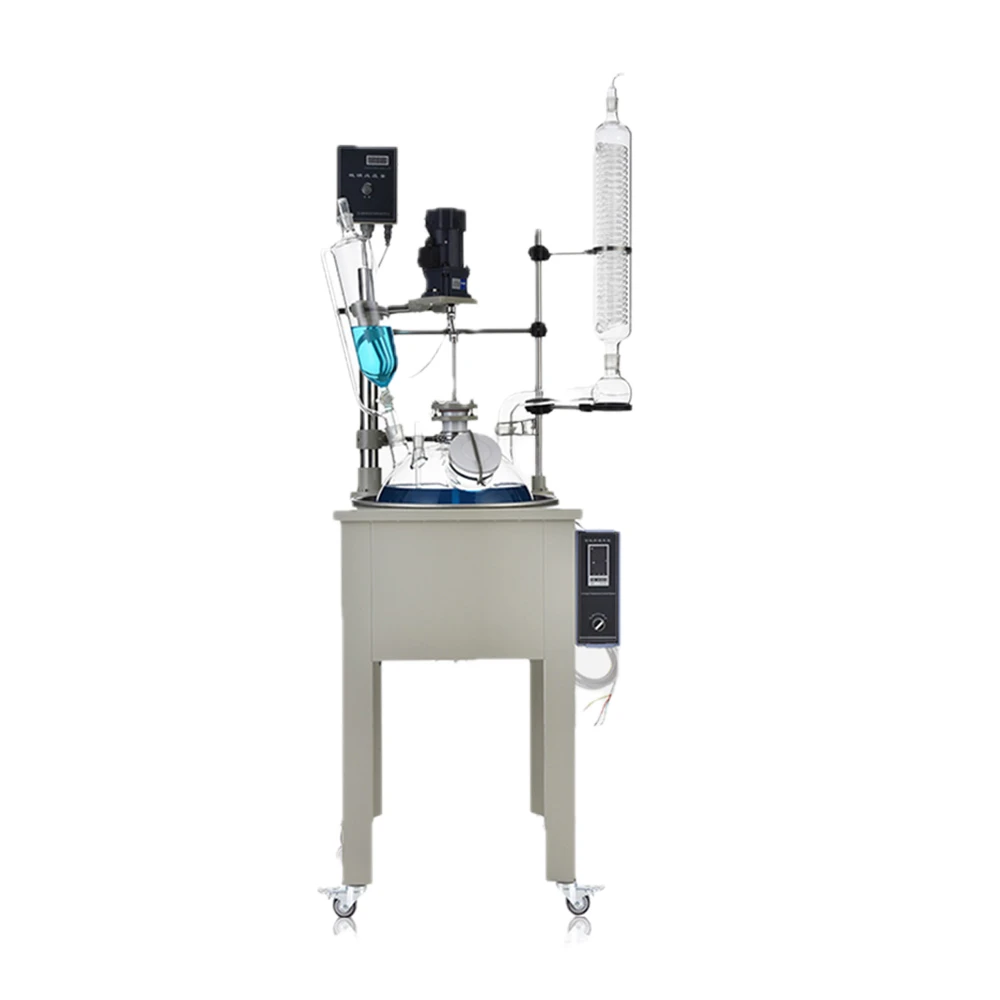

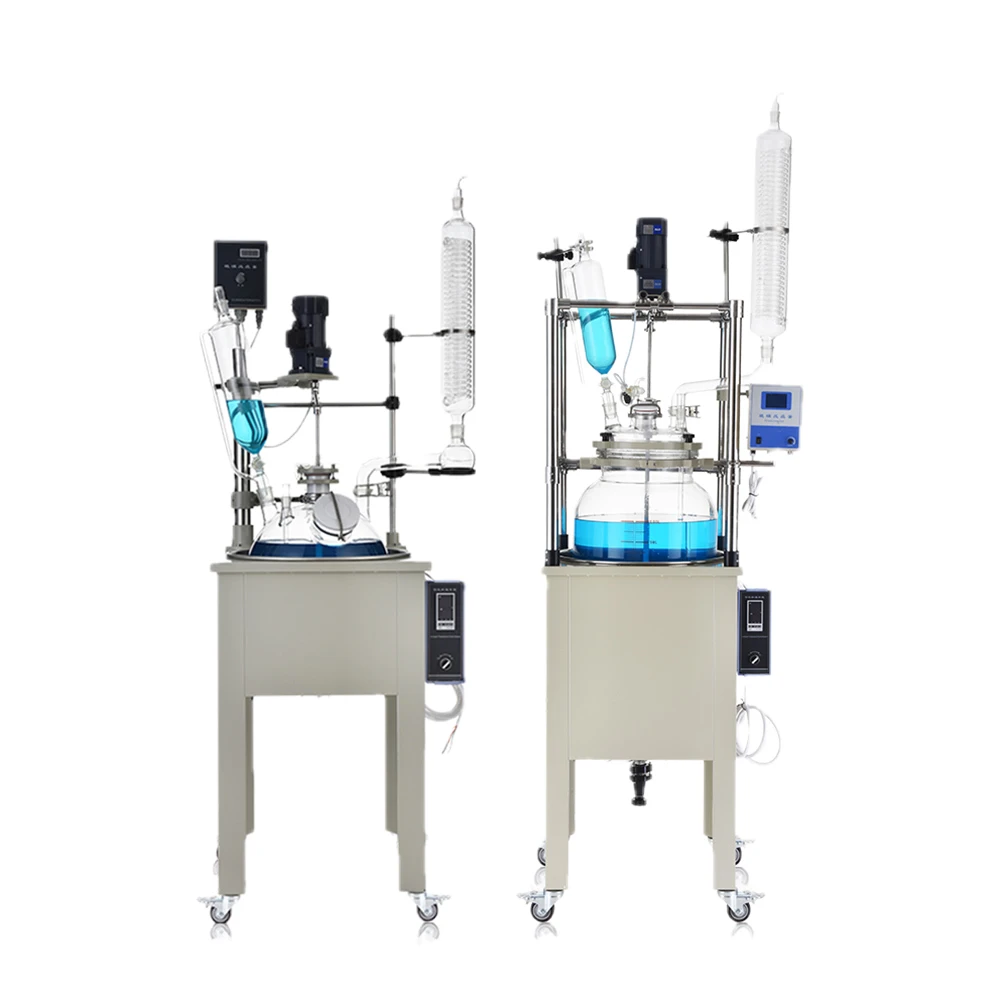

Single Layer Glass Reactor With Heating Mantle
Chemistry Laboratory Equipment Single Layer Glass Reactor With Heating Mantle
A single-layer glass reactor with a heating mantle is versatile laboratory equipment used for stirring, heating, distilling, and refluxing chemical reactions. It operates under constant temperature, vacuum, or atmospheric pressure to facilitate synthesis, extraction, and crystallisation in chemical and pharmaceutical industries.
Single Layer Glass Reactor With Heating Mantle
Common Uses and Applications
Chemical Synthesis: Used for organic and inorganic reactions, including synthesis of fine chemicals and specialty materials.
Distillation and Fractionation: Useful for separating mixtures, solvent recovery, and refluxing liquids, often monitored visually.
Extraction Processes: Suitable for botanical oil extraction (e.g., ethanol/heptane extraction) and preparing RSO oil.
Decarboxylation: Employs the heating mantle to heat compounds, such as cannabinoids, while a condenser removes volatiles.
Mixing and Homogenization: Stirring liquids, powders, and viscous fluids with precise speed control.
Biochemical Research: Utilized for fermentation, cell culture, and protein expression.
Crystallisation: Employed to isolate pure products from solutions.
Chemistry Laboratory Equipment Single Layer Glass Reactor With Heating Mantle
Key Features Affecting Usage
Heating Mantle & Rheostat: Allows for precise, controllable heating of the reactor contents (up to 300∘𝐶in some models).
Borosilicate Glass: Provides high thermal shock resistance and transparency for monitoring reactions.
Vacuum Sealing: Maintains consistent vacuum levels for removing solvents or managing sensitive reactions.
Discharge Valve: A PTFE discharge valve at the bottom prevents dead corners and allows for easy, efficient product recovery.
Chemistry Laboratory Equipment Single Layer Glass Reactor With Heating Mantle
Single Layer Glass Reactor With Heating Mantle
Key attributes
capacity. 1L-200L
type. Reaction Kettle
voltage. 220V/380V
power(w). 1000W
machinery test report. Provided
automatic grade. Automatic
video outgoing-inspection. Provided
core components. Motor
Warranty 1 Year
key selling points High Productivity
brand name. BAXIT
dimension(l*w*h). 40*40*80
Model BXT-10L
Brand BAXIT
Capacity 10L
Work Pressure Negative Pressure – Normal Pressure
Motor Power. 90W 1/3
Heating Power 2000W
Stirring Speed 0-600rpm
Temperature Control Range. Room temperature~300°C
Anti-corrosion Properties Corrosion Resistant
Voltage. 220V
