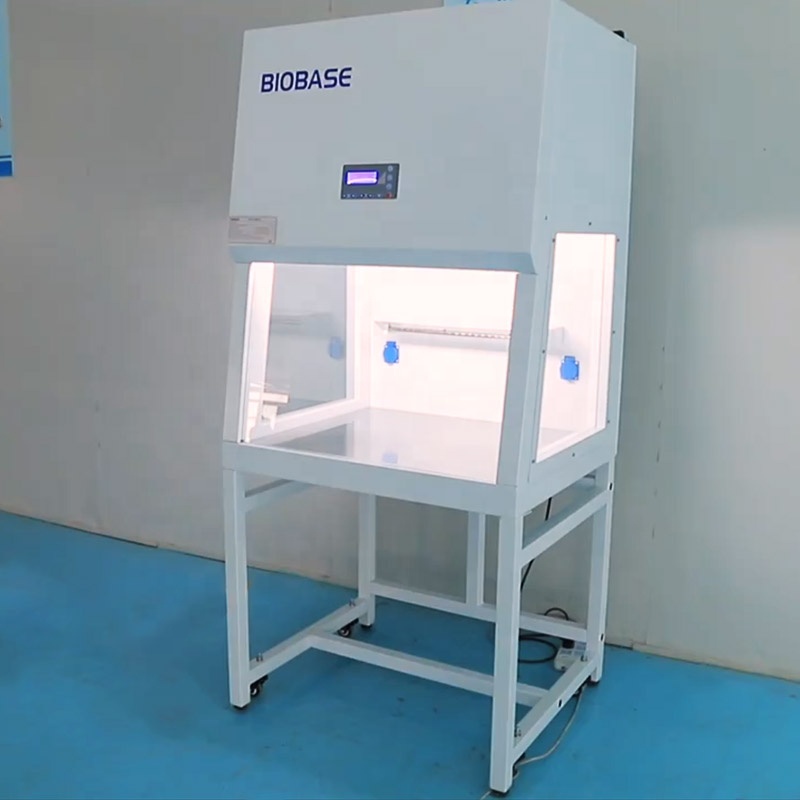

PCR Cabinet PCR-800
Lead Time: 4-6 weeks
This is crucial for obtaining accurate results in molecular biology, forensics, and diagnostics.
-
Sample and reagent preparation:
They create a sterile environment for handling samples and preparing reagents, a critical step in the PCR workflow.
-
Preventing contamination:
Their primary function is to protect sensitive DNA and RNA samples from external contamination, which could lead to false-positive results.
-
Genomic and molecular biology research:
PCR cabinets are essential tools in labs performing gene amplification and analysis
-
Forensic applications:
They are used in forensic labs to process DNA evidence, like those from crime scenes, while preventing cross-contamination.
-
Genetic testing and diagnostics:
They are used in clinical settings to prepare samples for identifying genetic disorders, viruses, or bacteria.
-
Laminar airflow:
Many cabinets use a controlled, vertical laminar airflow that pushes filtered air down to create a clean workspace and prevent airborne particles from entering.
-
UV-C sterilization:
Built-in UV lamps are used to inactivate any existing DNA/RNA fragments on the work surface between experiments.
-
Safety mechanisms:
To protect the user, many cabinets have safety interlocks that automatically shut off the UV lamps if the front sash is accidentally opened.
-
Airtight and enclosed environment:
They provide a closed-loop system where air is continuously circulated and filtered to maintain a high level of cleanliness.
-
Safety warning:It is important to note that standard PCR cabinets are not designed to protect the operator from hazardous materials. They are for contamination prevention only, and should not be used for work involving unknown or hazardous agents
|
Model
|
PCR-800
|
PCR-1000
|
PCR-1200
|
PCR-1300
|
PCR-1500
|
|
External Size (W*D*H)
|
800*700
*1770mm
|
1000*705
*1770mm
|
1200*700
*1770mm
|
1300*700
*1770mm
|
1500*700
*1770mm
|
|
Internal Size (W*D*H)
|
700*595
*550mm
|
900*595
*560mm
|
1100*595
*550mm
|
1200*595
*550mm
|
1400*595
*550mm
|
|
Work Surface Height
|
750mm
|
||||
|
Material
|
Main Body: Cold-rolled steel with anti-bacteria powder coating
|
||||
|
Work Table: 304 stainless steel
|
|||||
|
Front & Side Windows
|
5mm toughened glass , anti-UV
|
||||
|
Motorized
|
Manual
|
Motorized
|
Motorized
|
Motorized
|
|
|
Max Opening
|
260mm
|
320mm
|
260mm
|
260mm
|
260mm
|
|
Pre-filter
|
Polyester fiber, Washable
|
||||
|
HEPA Filter
|
99.999% efficiency at 0.3μm.
|
||||
|
Airflow Velocity
|
0.3-0.5m/s, speed adjustable
|
||||
|
Noise
|
≤65dB
|
||||
|
UV Lamp
|
20W*1
|
20W*2
|
30W*1
|
30W*1
|
40W*1
|
|
Emission of 253.7 nanometers, with UV timer
|
|||||
|
Illumination Lamp
|
LED 8W*2
|
LED 12W*2
|
|||
|
Illumination
|
≥1000Lux
|
||||
|
Shelf with IV bar
|
Stainless steel, 502*150*50mm (W*D*H)
|
||||
|
caster
|
Universal caster with leveling feet
|
||||
|
Consumption
|
400W
|
300W
|
600W
|
600W
|
600W
|
|
Waterproof Socket
|
Two, total load≤500W
|
||||
|
Power Supply
|
AC 220V±10%, 50/60Hz;110V±10%,60Hz
|
||||
|
Standard Accessory
|
UV lamp*3, Fluorescent lamp, Base stand, Waterproof socket*2, Shelf with IV bar
|
||||
|
Gross Weight
|
130kg
|
150kg
|
170kg
|
180kg
|
200kg
|
|
Package Size (W*D*H)
|
950*930
*1370mm
|
1150*930
*1370mm
|
1350*930
*1350mm
|
1450*930
*1370mm
|
1650*930
*1370mm
|
