WIT Medical

Medical Infusion Pump, Class II

In stock
Medical Infusion Pump

R17,920.00

Lead Time: 4-6 weeks
SKU: WIT601A Category:

Description

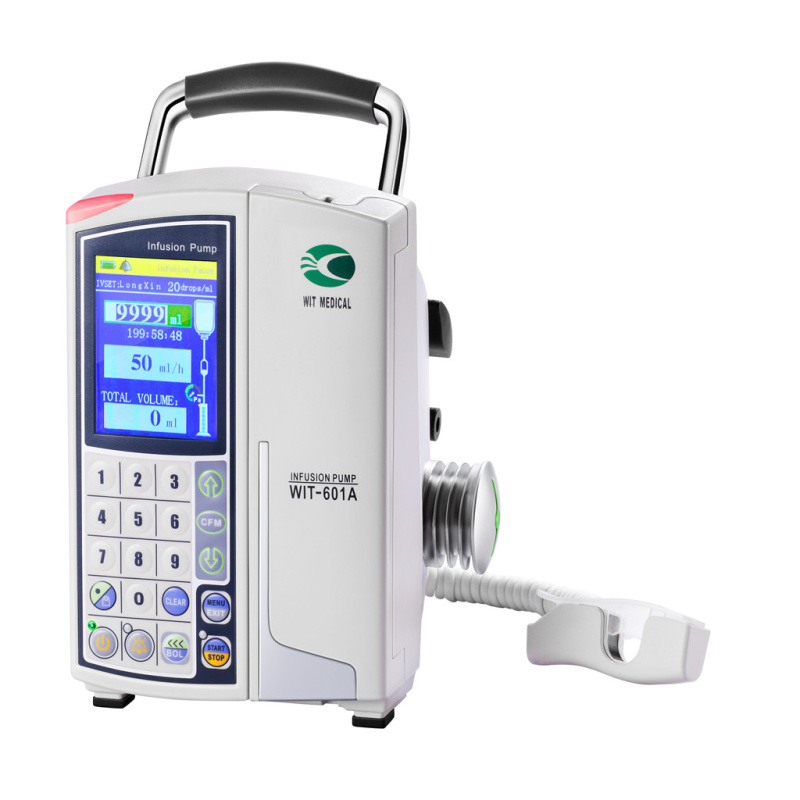

Medical Infusion Pump
Product Description

High quality IV Infusion Pump, with heater  & TIVA Drug Lab.

European Standard, At present we OEM For Russia, Italian, Greek & UK

 5 years warranty

Type First-Aid Devices

1.1 Scope of application

It is applicable to accurate, constant and continuous intravenous infusion in Hospitals and other medical institutions.

1) Including 12 kinds working mode: Volume / Drop / Micro / Programme / DOSE Weight / Drug Lab. / Manual Bolus.
2) Built-in 500 kinds of drugs, covering the clinical use of the drug dose of 54 units on the library, and could be connect with the PC for edit; export & import.
3) Comfort design with heater, Improve the experience of patients in low temperature infusion.
4) Support changes the Rate, Time, Dose, VTBI & other important parameters during the infuse working.
5) Advanced pressure detection technology, adjustable 20 level, and two option of units: mmHg / kPa.
6) With the unique alarm: Pre-alarm of end infuse, Pre-alarm of high pressure block and etc. to meet the needs of special treatment
7) IV set management, could add / remove / edit more than 40 kinds tubes.
8) Powerful safety self-check function to ensure the pump working properly

1.2 Technical Parameters

Function Option

With Drug Lab.

Without Drug Lab.

Drug Lab.

Built-in 500 kinds of drugs, covering the clinical use of the drug dose of 54 units on the library, and could be connect with the PC for edit; export & import.

NONE

Working Mode

Rate/VTBI,Time/VTBI,Rate/Time,Volume,Drop,Micro,Simple Rate,Programmable,DOSE Weight,Drug Lab,Auto Bolus,Manual Bolus.

IV Set

Open System for 10d/ml,15d/ml,20d/ml,60d/ml (3.4mm – 4.5mm)

IV Set management

could add / remove / edit more than 40 kinds tubes

Accuracy

Volume Mode:≤ ±5%,Drop Mode:≤ ±2% (after calibrate)

Calibrate

Automatic or manual calibration of infusion accuracy

Rate

Volume:0.1ml/h~1200ml/h       Purge:600ml/h

Drop:1d/min~400d/min

VTBI

1~9999 ml or OFF

Total Volume Σ

0~9999.9 ml

KVO

1ml/h~5ml/h Adjustable,Default:1ml/h

Programmable

Maximum 8 steps of different infuse rate / time / VTBI

BOLUS

Manual Bolus:long Press the Bolus key to infuse and release to stop

Auto Bolus:short press the Bolus key and set the VTBI & Rate

Upper Pressure

High / Middle / Low, 3 level, could off on the menu.

   Down Pressure

200mmHg – 1200mmHg, 20 level, live pressure display, mmHg & kPa two units

Pre-Alarm Occlusion

When the pressure in the tube goes up, it has the function of early warning

Pre-Alarm Finish

1 min~30 min, The alarm can be set ahead of VTBI

Parameters Modify

changes the Rate, Time, Dose, VTBI & other important parameters during the infuse working

Keypad Locker

Manual / Auto lock keyboard

History Record

Record 20000 infuse records, 10000 alarm records, can be downloaded to the computer to save & query

Self-Test

safety real time self-test function to ensure the pump working properly

Bubble

Detected by ultrasonic sensor with adjust setting 5 level, 50μL ~ 800μL,

Drop Sensor

Infrared sensor to detect the number of drops, monitoring the status in case the empty bottles

Alarm

Bubble, Door open, Finish, Pause timeout, Down Occlusion, Up Occlusion, Lower Battery or damage, Motor error, Incorrect IV Set-type, Pressure test failure, Motor failure, Abnormal drop rate, Heater failure and etc. 30 kinds safety monitoring alarm

Light Tips

3 color light tips:Green for infuse working;Orange for low level alarm (counting working);Red for high level alarm (pump stop).

Voice Tips

Compliance YY 0709-2009 medical standard, Alarm and key volume level adjustable, with Mute function,

Monitor

High brightness color LCD, Adjustable brightness

Communication

RS485 port, connect with PC to update / download

AC Power

AC100V~240V,50Hz/60Hz,25VA

Battery

Ni-MH battery, DC9.6V, 2000mAh (after full charged, could continue work more than 10 hours by 25ml/h rate)

Battery power query

Live-time query battery life and battery charge status

Class

Class I, Type CF, IPX4

Installation

For round and square pole,Horizontal / Vertical

Dimension

2.0kg , 130mm×120mm×195mm

 Environment

5℃~40℃;  20%~90% humidity;  70kPa~106kpa atmospheric

Use Range

For the patients with constant intravenous infusion of drugs



Additional information

Weight 5 kg
Dimensions 16 × 18 × 25 cm
