Lead Time: 2-3 Weeks
1. Speed LED digital display, easy operation.
2. Dynamic speed detection function.
3. Speed memory function.
4. Overload protection function – safe operation.
TOPTION high shear homogenizer is widely used in experiments and production of lacquer, coatings and pharmaceuticals industry.
Suitable for:
- emulsifying
- dispersing and dissolving of low, medium and high viscosity liquids and liquids, liquids and solids.
Specification

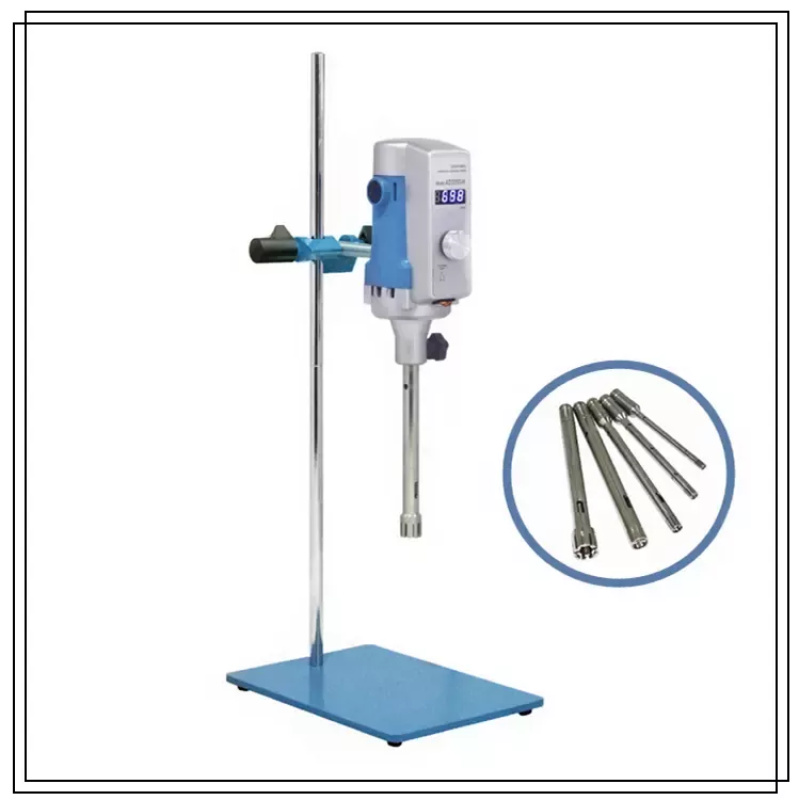

Ultrasonic High Shear Overhead Homogeniser Mixer, 28000rpm
high shear mixer homogenizer for medical laboratory, biological research, cosmetic products, chemical industry colleges and universities.
|
Model
|
AD500S-P digital display high shear emulsification machines
|
|
Rated voltage
|
AC 220 V
|
|
Rated frequency
|
50/60 Hz
|
|
Input Power
|
850 W
|
|
Output power
|
500 W
|
|
Rated torque
|
17.1 N.cm
|
|
Work mode
|
S1 (continuous)
|
|
Operation control mode
|
Combined control knob
|
|
Rotating speed adjustment range (idle running)
|
2000~28000 rpm
|
|
Rotating speed control type
|
Stepless
|
|
Speed digital display
|
LED ( indicator bar )
|
|
Dynamic speed detection function
|
Yes
|
|
Speed memory function
|
Yes
|
|
Overload protection function
|
Yes
|
|
Peak torque of the stirring head
|
17.0 N.cm
|
|
Stirring head material
|
AISI 316
|
|
Stirring head specifications
|
12G 18G 24G 30G 36G
|
|
Permissible ambient temperature
|
Not more than 40 degree centigrade
|
|
Permissible relative humidity
|
Not more than 80%
|
|
Size of the mixer (T * B * H)
|
215*310*720 mm
|
|
Weight
|
8.7kg
|
Accessories
Homogeniser Ultrasonic Mixer-0.5L
|
Dispersing and emulsifying working head parameters:
|
|||||
|
Stirring head specifications
|
12G
|
18G
|
24G
|
30G
|
24G
|
|
Mixing capacity (H2O) ml
|
30-800
|
50-1500
|
80-5000
|
100-8000
|
150-13000
|
|
Max viscosity tolerated 0 (mPa.s)
|
1000
|
2000
|
5000
|
6000
|
7000
|
|
Max temperature tolerated (degree centigrade)
|
120
|
120
|
120
|
120
|
120
|
|
Overall length (mm)
|
215
|
222
|
225
|
235
|
238
|
|
Stator diameter (mm)
|
12
|
18
|
24
|
30
|
36
|
|
Stirring head material
|
SS316
|
SS316
|
SS316
|
SS316
|
SS316
|
|
Bearing material
|
PTFE
|
PTFE
|
PTFE
|
PTFE
|
PTFE
|
|
Peak linear speed of the rotor (m/s)
|
12
|
15
|
18
|
22
|
26
|
|
Minimum height of the liquid immersed (mm)
|
35
|
45
|
50
|
60
|
65
|
|
Maximum height of the liquid immersed (mm)
|
150
|
160
|
165
|
170
|
175
|
