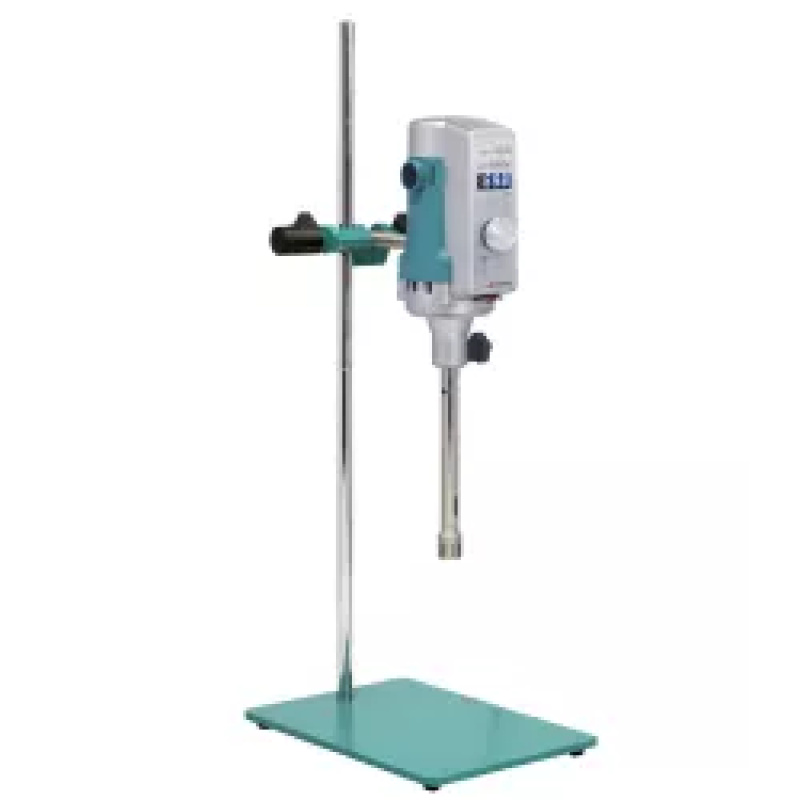

High Shear Mixer Homogeniser 13L
Mixer Homogeniser
Lead Time: 2-3 WeeksÂ
Features
The high shear dispersing emulsifying machine is driven by a compact series micro high speed motor.
– It  is suitable for mixing low
– medium and high viscosity liquid in laboratory or pilot plant
– crushing granular materials and shearing emulsifying them in liquid medium.
The machine is composed of:
– high-speed motor,
– shear emulsification head
– speed controller.
Specifications: Homogeniser 13L
Packing List
|
Part description
|
Qty
|
|
AD500S-H Main Machine
|
1 pc
|
|
Holder
|
1 set
|
|
Working Head
|
1 pc
|
|
Power Cord
|
1 set
|
|
User’s Manual
|
1 pc
|
High Shear Mixer Homogenizer 13L
|
Rated voltage
|
AC220V
|
|
Rated frequency
|
50/60Hz
|
|
Input power
|
850W
|
|
Output power
|
500W
|
|
Rated torque
|
17.1N.cm
|
|
Work mode
|
S1(Continuous)
|
|
Operation control mode
|
Combined control knob
|
|
Rotating speed adjustment range (idle running)
|
2000~28000rpm
|
|
Rotating speed control type
|
Stepless
|
|
Speed digital display
|
LED
|
|
Timing control range
|
1~1000min
|
|
Dynamic speed detection function
|
Yes
|
|
Speed memory function
|
Yes
|
|
Overload protection function
|
Yes
|
|
Peak torque of the sirring head
|
17.0N.cm
|
|
Stirring head material
|
AISI 316
|
|
Stirring head specifications
|
12G 18G 20G 24G 30G 36G
|
|
Permissible ambinet temperature
|
not more than 40℃
|
|
Permissible relative humidity
|
not more than 80%
|
|
Size of the mixer (T×B×H)
|
215×310×720mm
|
|
Weight
|
8.7kg
|
|
Stirring head Specifications
|
12G
|
18G
|
24G
|
30G
|
36G
|
|
Mixing capacity (H2O)ml
|
30~800
|
50~1500
|
80~5000
|
100~8000
|
150~13000
|
|
Max Viscosity tolerated(mPa.s)
|
1000
|
2000
|
5000
|
6000
|
7000
|
|
Max temperature tolerated(℃）
|
120
|
120
|
120
|
120
|
120
|
|
Overall length(mm)
|
215
|
222
|
225
|
235
|
238
|
|
Stator diameter(mm）
|
12
|
18
|
24
|
30
|
36
|
|
Stirring head material
|
SS316
|
SS316
|
SS316
|
SS316
|
SS316
|
|
Bearing material
|
PTFE
|
PTFE
|
PTFE
|
PTFE
|
PTFE
|
|
Peak linear speed of the rotor(m/s)
|
12
|
15
|
18
|
22
|
26
|
|
Minimum height of the liquid immersed(mm)
|
35
|
45
|
50
|
60
|
65
|
|
Maximum height of the liquid immersed(mm)
|
150
|
160
|
165
|
170
|
175
|
