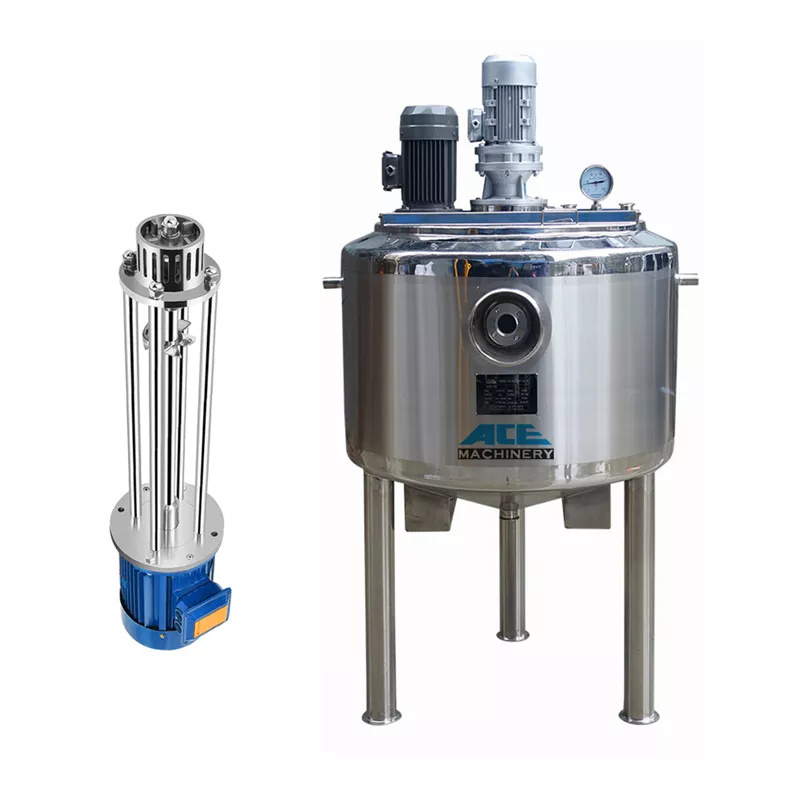

Homogeniser Mixer Emulsifier 200L
Lead Time: 4-6 Weeks
- Homogeniser Mixer Emulsifier: 200L
Mixing tanks come in various sizes and can be used in a wide range of industries.
We are a manufacturer of stainless steel mixing tanks designed to fit your products and processes.
Description:
Homogeniser Mixer Emulsifier 200L
This series is the most advanced blending equipment in fields of Chemical, pharmaceutical, food, etc.
When the high-speed super-fine emulsification paddle works,
– it throws the materials in the centre of rotor to stator at a high speed, then through tooth clearance of stator ,
– and shearing, collision and crushing between rotor and stator, the super-fine emulsification is realised. therefore,
– it is an integrated equipment comprising functions such as blending, emulsifying, homogenising, solving and crushing.
Essential details
- Mixer Type: Homogenizer
- Barrel Volume (L): 1000
- Material Processed: Chemicals, Food, Medicine, Powder
- Max. Loading Volume (L): 200 L
- Range of Spindle Speed(r.p.m): 1 – 3000 r.p.m
- Max. Loading Capacity: 200L
- Weight (KG): 400 KG
- Material: SUS304, SUS304L, SUS316, SUS316L, Ti
- Condition: New
- Product Type: Liquid, juice, shampoo, chemical
- Application: Liquid/Food/Medicine/Chemicals/powder
- Additional Capabilities: Mixer
- Brand Name: ACE
- Voltage: Customized
- Dimension(L*W*H): Customized
- Power (kW): 6.5 kW
- Warranty: 3 years
- Key Selling Points: Automatic
- Marketing Type: New Product 2020
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 1.5 years
- Core Components: Motor, Pressure vessel, Pump, PLC
- Stirring Method: Anchor type mixing stirrer and homogenizer
- Mixing speed of stirrer: 10-65r.p.m
- Mixing speed of homogenizer: 100-3000r.p.m
- Internal surface Treatment: Polishing
- Heating method: Electric or steam
- Tags: high shear/stainless steel/high speed
- Stirrer type: Anchor type, paddle type, frame type
- Be suitable for: Fluid, fruit juice, milk tea, shampoo, liquid soap etc.
- Speed control: Stepless speed variation device,adjustable
- Keywords: Vacuum Homogenizing Equipment Mixer Tank
