Digital Biological Microscope-Stereo

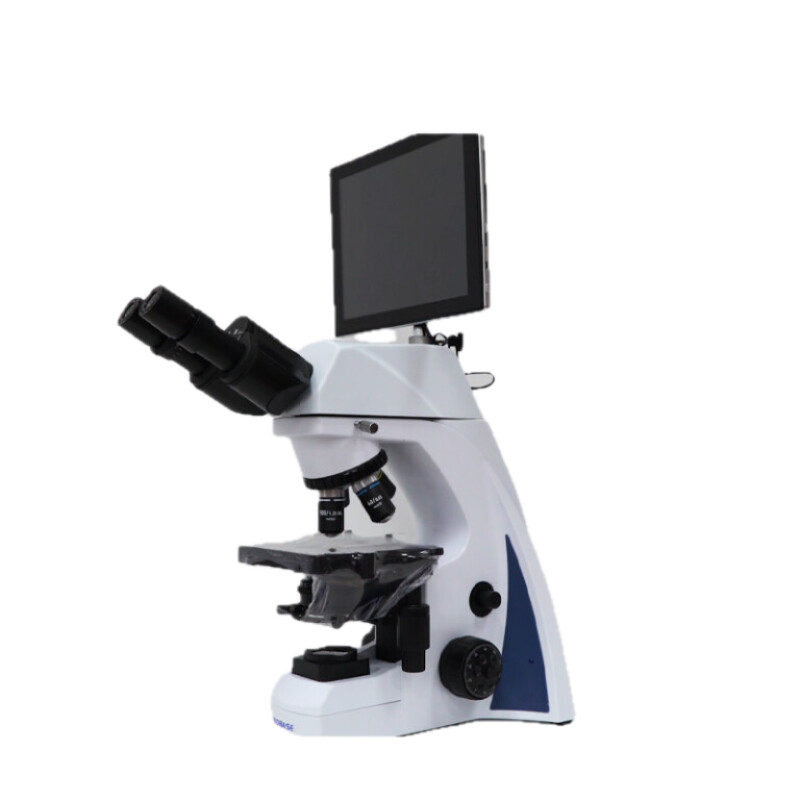

Digital Biological Microscope-Stereo DM-125
- Digital Biological Microscope-Stereo: DM-125
Digital Biological Stereo Microscopes are versatile tools designed for low-magnification, 3D viewing of solid, opaque, or thick specimens, featuring integrated cameras for imaging and analysis. Key uses include biological dissections, entomology, botany, and industrial inspections (e.g., electronics, forensics).
Key Applications and Uses:
Biological Research & Education: Used for dissecting small organisms, studying plant structures, examining insects, and analyzing bacterial colonies.
Industrial & Quality Control: Used for inspecting circuit boards, micro-soldering, and identifying defects in materials.
Medical & Forensic Science: Applied in surgery (operating microscopes), pathology (skin examinations), and forensic analysis of trace evidence.
Geology & Gemology: Used to study fossils, rocks, and analyze jewelry or minerals.
Digital Imaging & Analysis: Integrated cameras and software allow for capturing high-resolution photos/videos of samples, which is essential for documentation, research, and remote monitoring.
These microscopes offer long working distances, which are crucial for manipulating specimens during examination.
|
Model
|
DM-125
|
|
|
Optical System
|
Finite Optical System
|
√
|
|
Eyepiece
|
WF10X/18
|
√
|
|
Viewing Head
|
Monocular Head Inclined at 30°
|
|
|
Seidentopf Binocular Viewing Head Inclined at 30°,
Interpupillary 48~78mm |
√
|
|
|
Seidentopf Trinocular Viewing Head Inclined at 30°,
Interpupillary 48~78mm |
||
|
Digital Viewing Head Inclined at 30°, Interpupillary 48-78mm, 5M pixels, Support Wifi
|
||
|
Digital Viewing Head Inclined at 30°, Interpupillary 48-78mm, 5M pixels, 8’’ LCD, Android OS
|
||
|
Achromatic Objective
|
4X N.A=0.1 WD=17
|
√
|
|
10X N.A=0.25 WD=7
|
√
|
|
|
40X N.A=0.65 WD=0.53
|
√
|
|
|
100X N.A=1.25 WD=0.13
|
√
|
|
|
Nosepiece
|
Backward Quadruple Nosepiece
|
√
|
|
Stage
|
Double Layers Mechanical Stage 140x140mm, Moving Range 75x50mm
|
√
|
|
Condenser
|
NA 1.25 Abbe Condenser
|
√
|
|
Dark Field Condenser (Dry, Oil)
|
||
|
Focusing System
|
Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm,
Moving Division 25mm |
√
|
|
Illumination
|
S-LED Illumination
|
|
|
S-LED Illumination with Recharger
|
√
|
|
|
Kohler Illumination
|
||
|
ECO Function
|
||
|
Plane-cancave Mirror
|
||
|
Fluorescent Attachment
|
Fluorescent Illumination, LED Lamp
|
|
|
Fluorescent Illumination, 100W HBO Lamp
|
||
|
Power Supply
|
AC110/220V±10%,50/60Hz
|
√
|
|
Accessories
|
Polarization Set
|
|
|
Phase Contrast Kit
|
||
|
Optional Accessories
|
LED/LCD Screen,camera
|
|
|
Gross Weight
|
8.5kg
|
√
|
