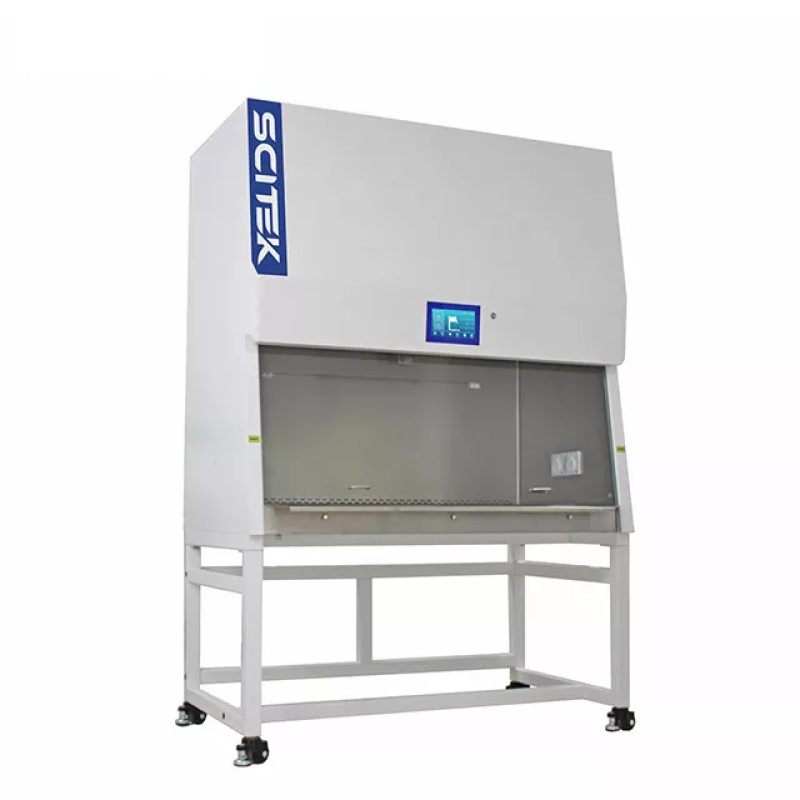

Biological Safety Cabinet Class BSC-IIB2-1100
Lead Time: 4-6 Weeks
Biosafety Cabinet
Class II B2 Biological safety cabinet is biological safety isolation equipment used in biological safety laboratories or other laboratories.
It can prevent harmful or unknown biological particulate aerosol from escaping during operation, it’s suitable for experiments with radioactive nuclides and volatile chemicals.
Protection: Operator, Samples and the environment.
Airflow System: 100% air exhaust
Work area: Negative pressure
Biosafety Cabinet Class II Features:
Biological Safety Cabinet Class II B2
- UV sterilization function and timing function can be set by appointment.
- Automatic air speed adjustable.
- With memory function in case of power-failure.
- Audio and visual alarm (Abnormal airflow velocity, HEPA filter failure, UV lamp failure, Front window at unsafe height).
- Interlock function: UV lamp and front window; UV lamp and blower, LED lamp; blower and front window.
- With German EBM blower.
- Standard with AAF ULPA filter.
Biosafety Cabinet
Biosafety Cabinet Class II Display
Biosafety Cabinet Class II Type B2 Specifications:
Model |
BSC-IIB2-1100 |
BSC-IIB2-1400 |
BSC-IIB2-1500 |
BSC-IIB2-1800 |
External Size (WxDxH)mm |
1050x836x2150 |
1400x836x2150 |
1500x836x2150 |
1800x836x2150 |
Internal Size (WxDxH)mm |
950x666x600 |
1300x666x600 |
1350x666x600 |
1625x666x600 |
Tested Opening |
Safety Height 200mm (8”) |
Max.Opening |
400mm |
Work Surface Height |
800mm |
Airflow System |
100% air exhaust |
Downflow Velocity |
0.34m/s |
Inflow Velocity |
0.55m/s |
Blower |
German EBM Blower |
Filter Specification |
Two, AAF ULPA filter, 99.9995% efficiency at 0.12 μm, filter life indicator |
Cleanliness Grade |
Class 100 (ISO14644.1 Class 5) |
Display |
LCD touch screen |
Alarm |
Abnormal airflow velocity, ULPA filter failure, UV lamp failure, Front window at unsafe height |
Front Window |
Motorized, Two-layer laminated toughened glass ≥ 5mm. Anti UV. |
LED Lamp |
30Wx2 |
36Wx2 |
36Wx2 |
36Wx2 |
UV Lamp |
20Wx1 |
30Wx1 |
40Wx1 |
40Wx1 |
Rated Consumption |
2060W |
2082W |
2092W |
2092W |
Illumination |
≥800Lx |
Sound Emission |
≤67dB(A) |
Power Supply |
AC220V±20, 50Hz,110V,60HZ (Optional) |
Material |
External Main body: Electro-galvanized steel with antimicrobial Powder Coating
Work surface: 304 stainless steel |
Standard Accessories |
1.Base stand; 2.Air Velocity sensor; 3.AAF ULPA filter; 4.EBM Blower; 5.LCD touch screen; 6.LED lamp; 7.UV lamp; 8.Waterprof socket; 9.Motorized Front window; 10.Caster; 11.Exhaust Blower; 12.Exhaust duct (Φ300mm) |
Optional Accessories |
1.Gas tap; 2.Water tap; 3.IV bar with hooks; 4.Pressure meter |
Net Weight |
284kg |
323kg |
350kg |
430kg |
Gross Weight |
346kg |
404kg |
435kg |
550kg |
Shipping Size (WxDxH) mm (Main Unit) |
1210x1140x1710 |
1560x1140x1710 |
1650x1140x1710 |
1950x1140x1710 |
Shipping Size (WxDxH)mm
(Exhaust Blower) |
700x700x500 |
700x700x500 |
700x700x500 |
700x700x500 |
Shipping Volume (m3) |
2.7 |
3.4 |
3.5 |
4.1 |
