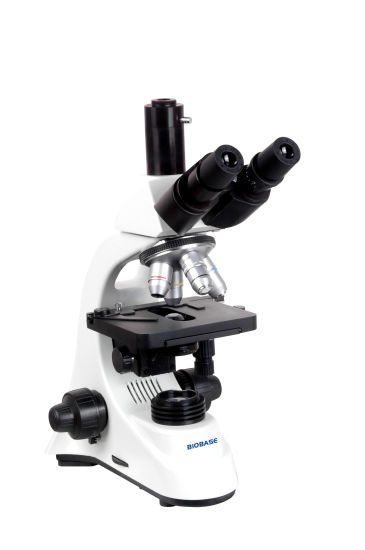

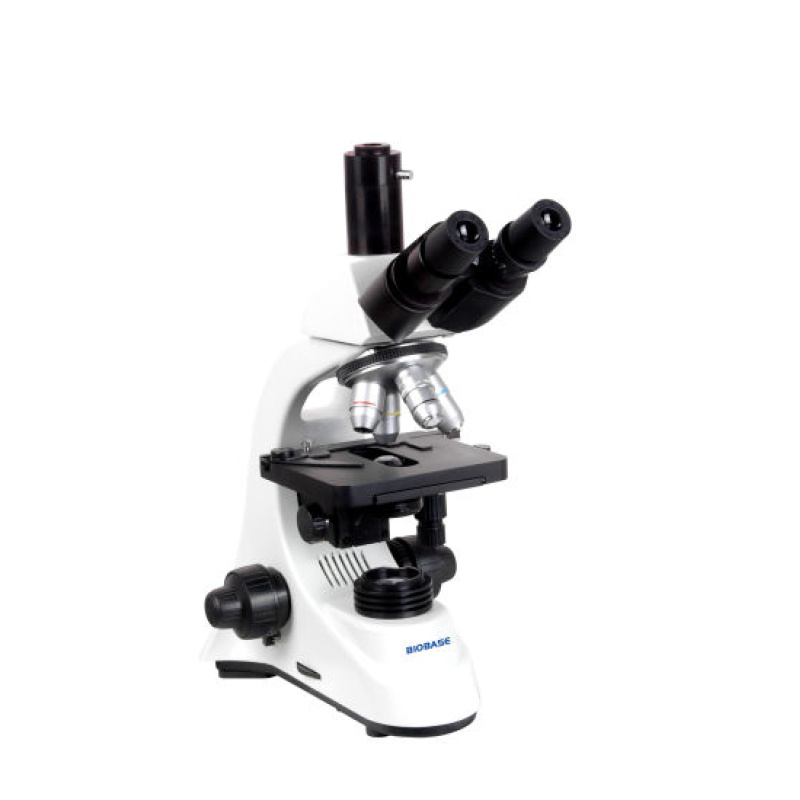

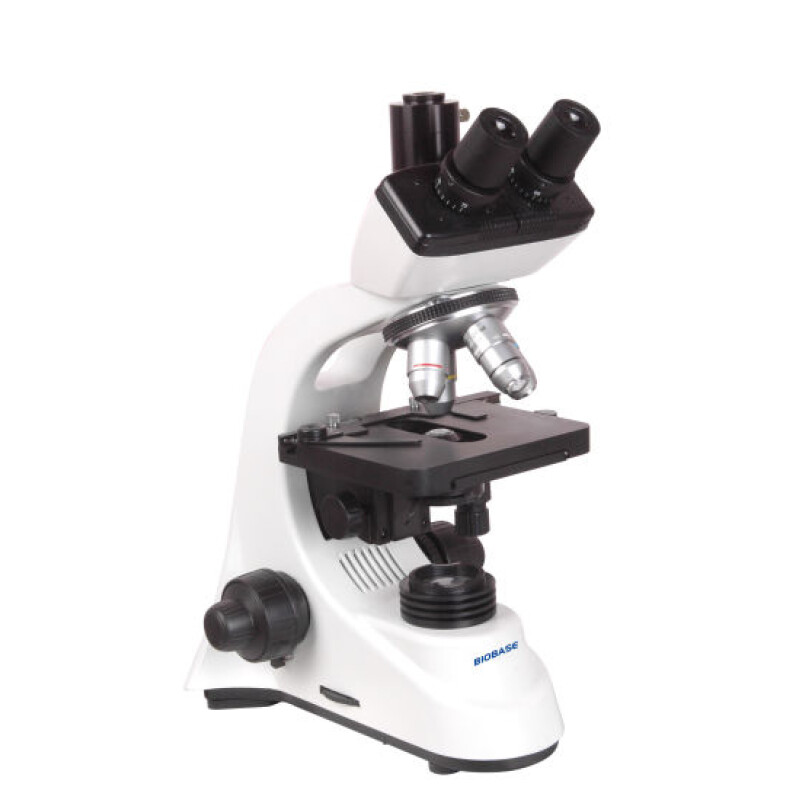

Biological Microscope XS-208 Series
Lead Time: 3-4 Weeks
- Biological Microscope XS-208 Series
Biological microscopes are essential optical tools designed for magnifying, imaging, and analyzing thin, translucent biological specimens like cells, tissues, bacteria, and microorganisms. Operating at magnifications from 10x to over 1000x, they are indispensable in clinical diagnostics, medical research, forensic science, and educational institutions to study specimen morphology, cell division, and microstructures.
Key uses of biological microscopes include:
Medical & Clinical Diagnostics: Analyzing blood samples, examining tissue samples (histology), and identifying pathogens like bacteria and parasites to aid in diagnosing diseases.
Biological & Academic Research: Studying cell biology, including cell growth, division, and differentiation.
Microbiology: Investigating microorganisms such as fungi, bacteria, and protists, including their behavior and reaction to antibiotics.
Forensic Science: Comparing specimens such as hairs, fibers, or biological samples to identify sources in forensic investigations.
Industrial & Material Science Applications: While primarily biological, they are used to inspect microscopic surfaces and structures.
These microscopes commonly use specialised lighting techniques such as brightfield, phase contrast, or fluorescence to enhance the contrast of unstained, living cells.
For use in Teaching and Research
| 1 | Model | ||||||
| Specification | XS-208A | XS-208B | XS-208C | XS-208AP | XS-208BP | XS-208AB | |
| Viewing Head | Sliding Binocular Head Inclined at 45? | √ | |||||
| Sliding Trinocular Head Inclined at 45? | √ | ||||||
| Compensation Free Binocular Head inclined at30? | √ | √ | |||||
| Compensation Free Trinocular Head inclined at30? | √ | √ | |||||
| Nosepiece | Ball Beating Quadruple Nosepiece | √ | √ | √ | √ | √ | √ |
| Eyepiece | WF10X/18mm | √ | √ | √ | √ | √ | √ |
| Objective | Achromatic 4X,10X,40X(S)100X(S,Oil) | √ | √ | √ | √ | ||
| InfinitePlanAchromatic 4X,10X,40X(S)100X(S,Oil) | √ | √ | |||||
| Stage | Double Layer Mechanical Stage 135*140mm | √ | √ | √ | √ | √ | √ |
| Condenser | ABBE NA1.25 condenser with Iris Diaphragm &filter,rack&pinion adjustable | √ | √ | √ | √ | √ | √ |
| Illumination | Build-in Illumination,Halogen lamp 6V/20W | √ | √ | √ | √ | √ | √ |
| Power supply | AC110/220V±10%,50/60Hz | √ | √ | √ | √ | √ | √ |
| Accessories | Photo attachment, Videoattachment | √ | √ | √ | |||
| Dark fieldcondenser,Polarization set ,Phase contrast kit | √ | √ | √ | √ | √ | √ | |
| Package | Cartoon with foam | √ | √ | √ | √ | √ | √ |
| Package size | 250*360*460mm | √ | √ | √ | √ | √ | √ |
| Gross weight | 8kg | √ | √ | √ | √ | √ | √ |
Note:110V/220V for LED lamp ,220V only for Halogen lamp
Optional:2.0, 3.0 or 5.0 Megapixel, CMOS electronic eyepiece
