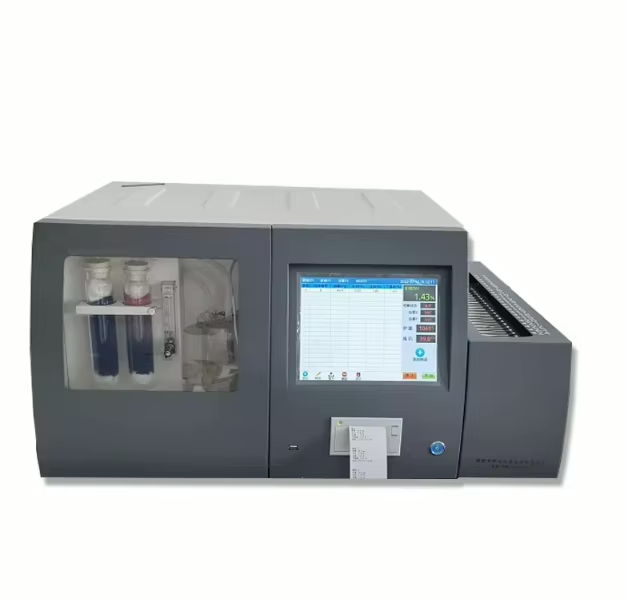

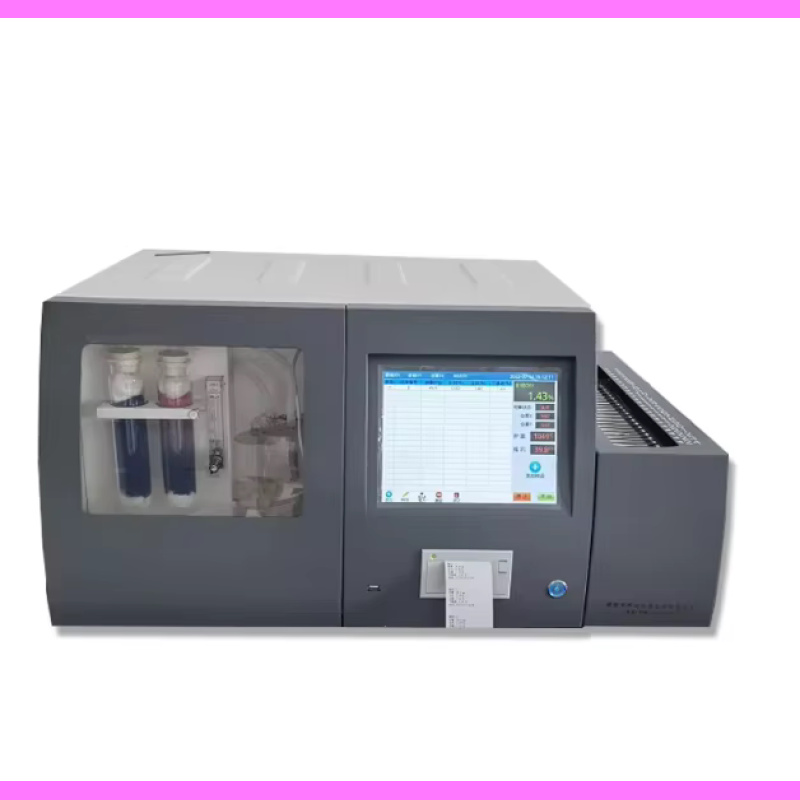

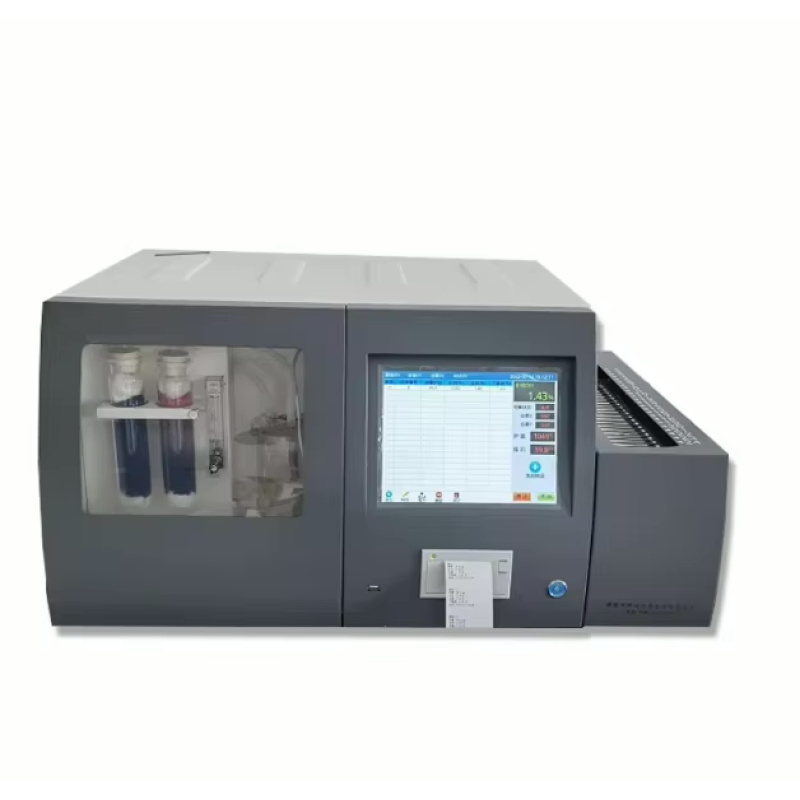

XRF Sulfur Analyzer
Detailed introduction: XRF Sulfur Analyzer
Application Scope:
Suitable for Power,Coal,Metallurgy,Petroleum,,cement, Papermaking, Good quality,Research institutions and other industry departments measure coal,
Total sulphur content in coke and petroleum substances,CompliantGB/T214-2007 Method for Determination of Total Sulfur in Coal.
Functional Features:
1,Adopt dual independent Hall element slot setting scheme,Achieved multi-stage sample delivery with continuous adjustment,Compatible High Sulfur and Fast Sulfur Sample Analysis Industrial Integrated Appearance Design,Generous,Convenient Maintenance.
2,Automatic control of stirring start, stop, and speed,Automatic Control of Gas Circuit On/Off.Abandon the traditional sulfur measuring instrument purification stirring manual control method,The purification stirring has achieved fully automatic control,Effectively extend the service life of mixing motors and air pumps,Effectively avoids human operational errors.
3,Disposable20Uninterrupted Experiment of Each Sample;Samples can be added individually or in multiples,Flexible and automatic.
4,Reminder method:Intelligent Voice Broadcast Reminder.
5,With the function to export experimental data,Can be configured with a computer,Enable Custom Report Printing.
6,Equipped with universal trip protection function.
7,Adaptive Silicon Carbon Tube Resistance,Longevity update.
8,Horizontal High
Technical Parameters:
Power supply:220V±20V,50Hz High Power2.5 Kw
Flow Measurement Range:0.01%-99%,Resolution0.01.
Accuracy:Complies with national standardsGBT214-2007Allowable error range for standard samples.
Analysis time: Analysis time can be set,Automatically determine the end point of the experiment.
Data Storage: Support recently2000Experimental Data”Continuous scrolling”storage
Intelligent Precision Control Technology,Sample Card.
Temperature Display:Ambient Temperature-1199,Resolution1
Temperature control:700-1190,The target temperature can be freely set.
Warm-up Time:25Approximately minutes to reach1150±5.
Operating Method:Large Screen Direct Touch Operation
Warm furnace body design,Effectively ensure the stable formation of the constant temperature zone.
XRF Sulfur Analyzer
