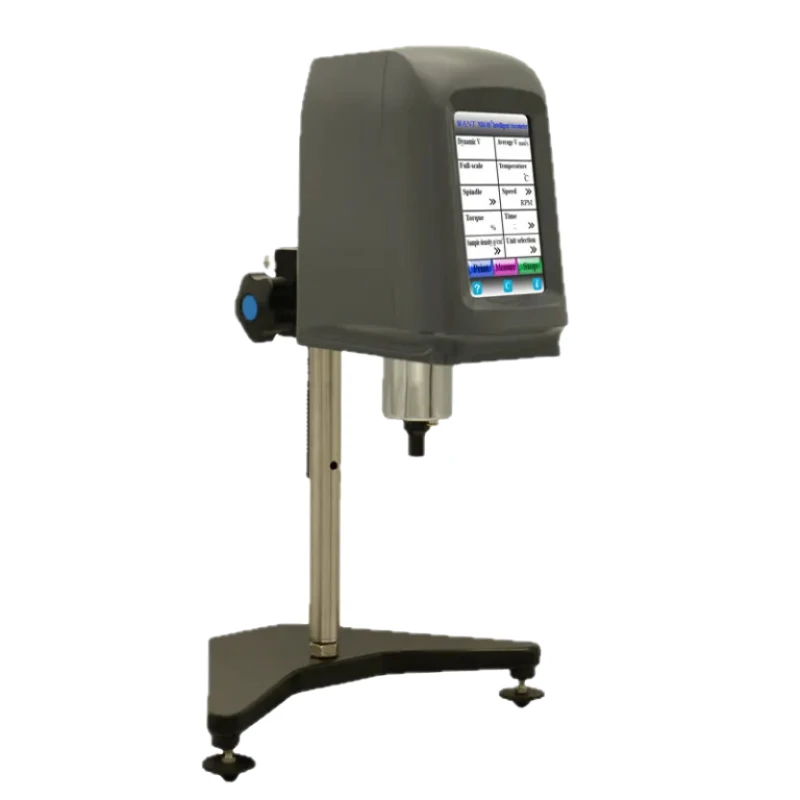

Viscosity Meter-Touch Screen NDJ-1
Lead Time: 2-3 Weeks
A digital laboratory viscosity meter measures a fluid’s resistance to flow (viscosity) using rotating spindles or oscillation, commonly applying to paints, food, cosmetics, oils, and adhesives. It is used to analyze Newton’s law for liquids, determine shear rates, and maintain product quality by measuring viscosity under controlled temperatures and speeds.
This instrument can be used to measure the viscosity resistance and absolute viscosity of liquids, and is widely used in oil, paint, food, medicine, adhesives, cosmetics and other industries and scientific research institutions
Specification
Viscosity Meter-Touch Screen NDJ-1
|
standard rotor
|
No.1, No.2, No.3 and No.4 rotors (optional for 0 # rotor)
|
|
measurement range
|
bgd 152 / 1s — 10 ~ 100000 (105) MPa. S
|
|
BGD
|
152/2S—-10～2，000，000（106）mPa.s
|
|
optional speed
|
bgd 152 / 1s — 6 rpm, 12 rpm, 30 rpm, 60 rpm (without gear drive).
|
|
Bgd 152 / 2S — 0.3 rpm, 0.6 rpm, 1.5 rpm, 3 rpm, 6 rpm, 12 rpm, 30 rpm, 60 rpm (without gear)
|
|
|
measurement accuracy
|
± 1.0% of full scale (Newtonian liquid)
|
|
measurement reproducibility
|
0.5% of full scale (Newtonian liquid)
|
|
power supply
|
110V ~ 220V / 50Hz / 60Hz
|
|
if the low viscosity sample is measured, the ultra-low viscosity adapter can be selected (No. 0 rotor, test range: 1 ~ 10 MPa. S)
|
|
|
standard RTD temperature probe
|
|
|
other optional accessories: micro printer, thermostatic water tank, standard viscosity oil
|
|
