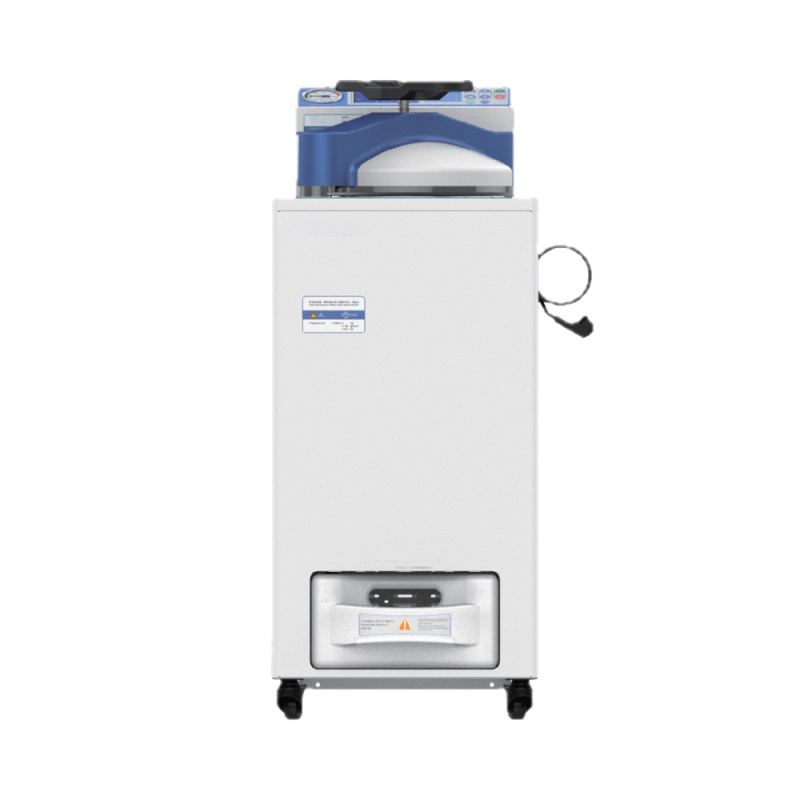

Vertical Steam Steriliser Autoclave

Vertical Steam Steriliser Autoclave

Vertical Steam Steriliser Autoclave excel in sterilising liquids, media, glassware, and taller items that must remain upright during processing. Their design makes them a go-to choice for labs and research facilities, where these needs are most common.

Vertical Steam Steriliser Autoclave

1.Colorful LCD screen
LCD screen with English and Chinese choice,using text, data, and graphical methods to dynamically display various statuses, the sterilization process is clear at a glance.

2. 6 level of exhaust speed control(TW,TR,TP only)
After sterilization,you can choose different exhaust speed, and you can adjust it freely at any time of exhausting.

3. Condenser(Option)
Equipped with a professional condenser, the steam generated during the sterilization process is conve-rted into water through the condenser, achieving zero discharge of water vapor/mist.

4. F0 value caculation
FO value is automatic caculated, can print out by micro-printer.

5. Drying(TR only)
Fully automatic drying: Equipped with an air pump and a 0.2um air fiter, it automatically starts drying after sterilization. After sterilization,clean air will be put in to replace the wet air inside, so as to improve drying efficiency.(Fully automatic drying is an option for TR only)

6. Vacuum pump(TP only)
Original imported vacuum pump from Germany, with good vacuum effect.

7. Biosafety function (TWS,TRS only)
Use a 0.2 μm PTFE filter packed in a housing to ensure that no biohazard aerosols, microorganisms and viruses are passing out through the filter during exhausting, so as to make sure the biology safety of the lab.

8. Vacuum drying(TP only)
Set drying temperature and time, and start vacuum drying after sterilization.

Vertical Steam Steriliser Autoclave

Intelligent

1. Calibration port
Offer temp.and pressure interface, together with the 3Q adapter joints, can insert max 15 sensors one time to do the calibration work.

2. Program memory storage system
User can set their own program, and saved in system.
3. 5 level access permission
The operation permissions for instruments are divided into five levels, with each level of user
having an independent password and multiple IDs that can be assigned. Each level of user has limited access to certain usage permissions.

4. Fast cooling fan
To shorten cooling process after sterilization.

5. Auto water fill(Option)
Offer pipe and pump to connect to the direct water supply to achieve automatic water feeding, must be added while production.

6. Dedorization(TX only)
A unique odor treatment system that can absorb odors and remove smell generated during the sterilization process, ensuring fresh laboratory air.

7. Air inlet filter(TX,TP as standard,TR as option)
Filtration is higher than 99.99% in particle with diameter of 0.2 μm.

8. Monitor of exhaust filter(TWS,TRS only)
Exhaust filter is put inside a pressure resistant housing(stainless steel material) with an extra PT100 temperature sensor to monitor the temperature, so as to make sure the filter and housing are also being sterilized thoroughly,and will not lead to secondary biohazard pollution.

9. Fully automatic drying(TR only)
Equipped with an air pump and a 0.2um air filter,it automatically starts drying after sterilization. After sterilization, clean air will be put in to replace the wet air inside, so as to improve drying efficiency.

10. Saturated steam monitoring
The system automatically monitors the purge out of cold air to ensure the pure steam environment.

11. Special software for drug packaging materials(option)
The product meets the 2020 Chinese Pharmacopoeia or EP10.2 standards.

Vertical Steam Steriliser Autoclave

Hommization

Just right depth
Conforming to ergonomics, the chamber depths of 29/54/80/100L
chamber are 378/725/670/780 (mm),making it easy to take and
place samples and maintain the instrument

Front water tank
Front water tank, easy to plug in and out.

Vertical Steam Steriliser Autoclave

Vertical Steam Steriliser Autoclave Key attributes

Vertical Steam Steriliser Autoclave warranty. 1 Year
customized support. OEM, ODM
brand name. Drawell
material. Stainless steel
size. 620x745x1200mm
capacity. 29L 54L 80L 100L
Working temperature. 105℃~135℃
Sterilization time range. 1~6000 min
Melting temp. range. 60℃~115℃
Melting time. 1~6000 min
Warming temp. 45℃~79℃
Warming time. 1~9999 min
Controller. “SMART III” smart microcomputer controller
Cooling way
Fast cooling fan
Pressure gauge range. -0.1~0.5MPa
Pressure valve set pressure. 0.29Mpa
Packaging and delivery
Selling Units. Single item
Single package size. 62X68X120 cm
Single gross weight. 75.000 KG

Specification

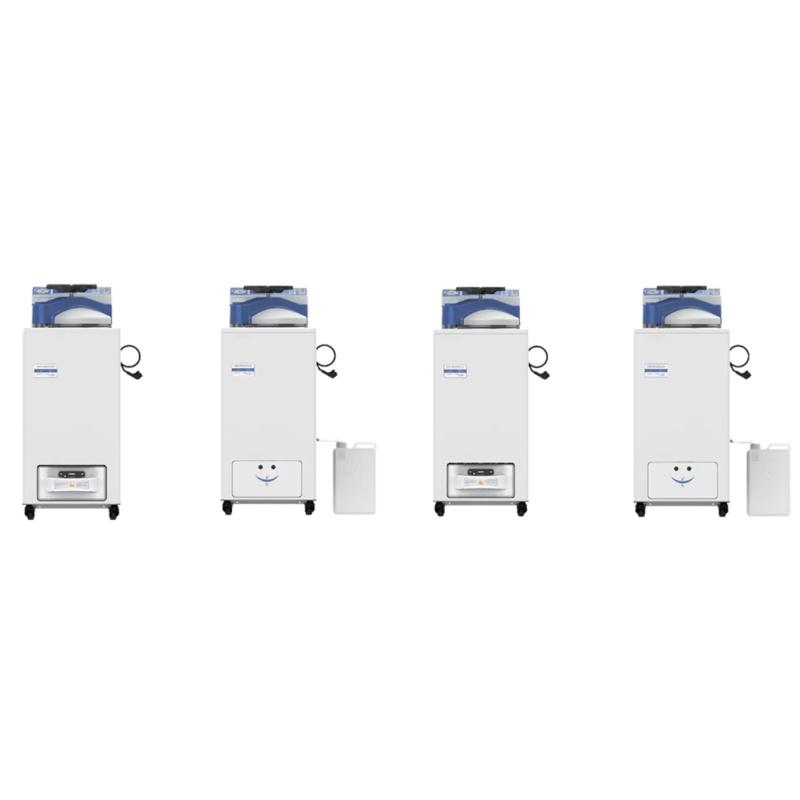

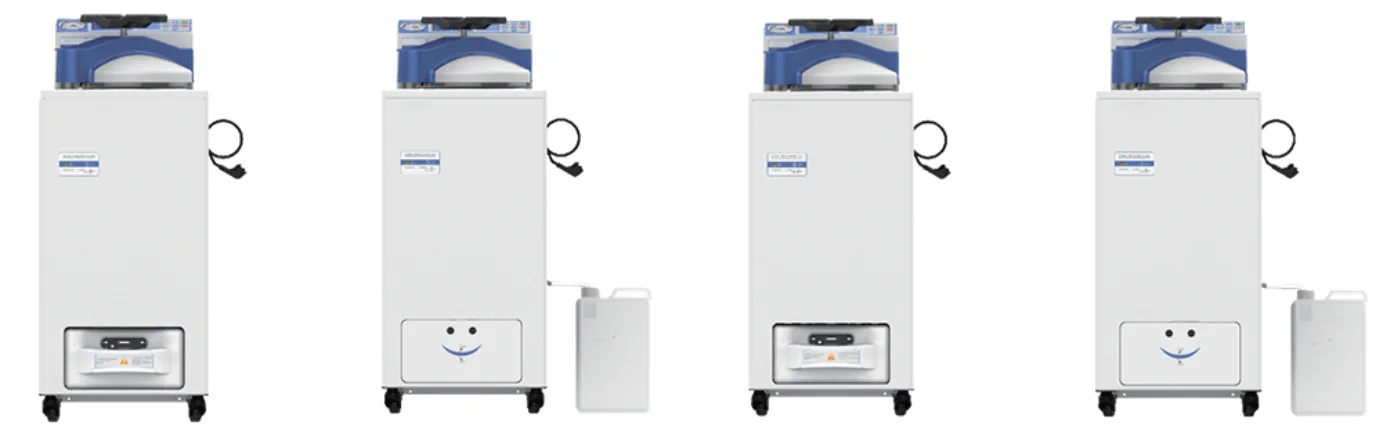

Model. GITW GITR GITX GITP
6 level exhaust TPeed control Standard Standard —— Standard
Auto water fill Option Option Option Standard
Condensor Option Option Standard Standard
Dedorization Standard Standard

Drying. —— Standard(Semi-automatic drying) —— Vacuum drying
Option(fully automatic drying)

Cooling fan. Standard. Standard Standard 2 pcs Standard 2 pcs
Access permission 5 level 5 level 5 level 5 level
USB port. Standard Standard Standard. Standard
Sterilization record. Standard Standard Standard Standard
Printing set. Option Option. Optionc Just need printer
Micro-printer Option Option Option Option
DiTPlay system LCD LCD LCD LCD
Load thermomete
(floating PT100 sensor). Option. Option. Option Option
Auto drainage. Option. Option. Option Option
Steam collecting way. Internal Internal. Internal. Internal
Prevacuum —— —— Standard
Auto cleaning. Option Option Option. Option
Digital pressure sensor. Option Option. Option Standard
Inlet air filter. —— Option. Standard Standard
Air pump —— Option Standard Standard
S Biosafety function GI-TWS only. GI-TRS only. —— ——
