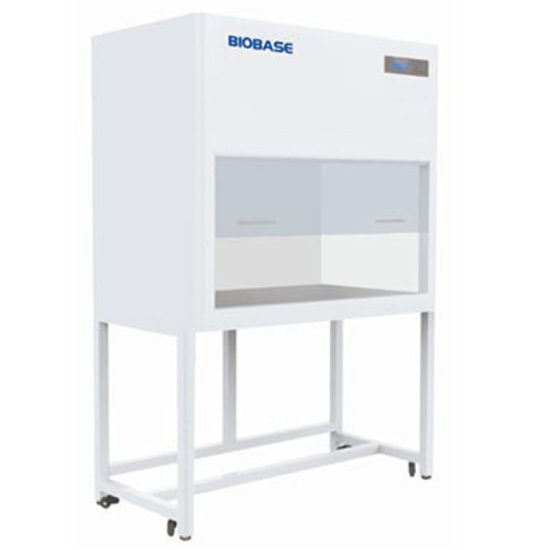

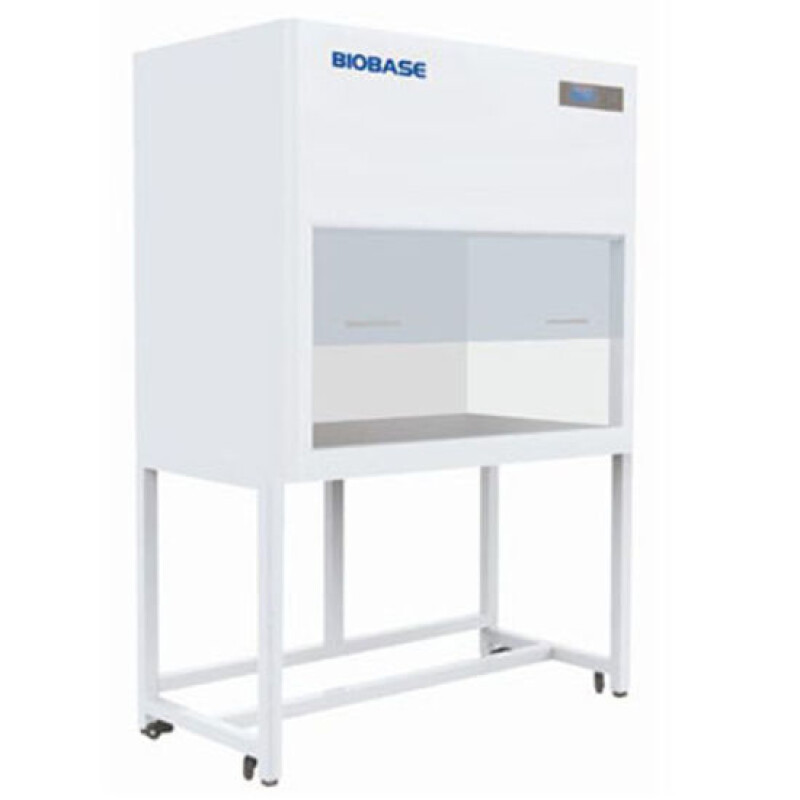

Vertical Laminar Flow BBS-DDC
Lead Time: 4-8 Weeks
Laminar Flows are part of laboratory clean benches.
Vertical Laminar Flow (VLF) units create sterile, particle-free workspaces by pushing HEPA/ULPA-filtered air downwards, protecting samples and products in labs, pharma, electronics, and food industries for tasks like cell culture, sterile compounding, microscopy, and medical device assembly, preventing contamination from dust and microbes.
They’re ideal for height-intensive work and offer operator safety as air flows away from the user. Vertical Laminar Flow BBS-DDC
Key Uses by Industry
Microbiology & Cell Culture: Protecting cultures from airborne contaminants in research and university labs.
Pharmaceuticals: Sterile compounding of medications, IV preparation, and maintaining purity in drug manufacturing.
Electronics: Preventing dust contamination on sensitive components during assembly.
Medical & Dental: Preparing sterile devices and materials, clinical trials.
Food Science: Handling samples in food testing and processing.
Research & Forensics: General biological research, environmental testing, and forensic analysis.
Why Choose Vertical Flow?
Sample Protection: Unidirectional airflow sweeps contaminants away from the work surface.
Operator Safety: Air blows down and away from the user, reducing inhalation risk (often with a sash for extra protection).
Space-Saving: Can often be installed on standard benches due to top-mounted filters, saving floor space.
Reduced Turbulence: Minimizes air disruption at the work surface compared to horizontal flow.
Vertical Laminar Flow BBS-DDC
A clean bench is an enclosed workbench that is controlled to a certain air cleanliness level to prevent contamination such as dust, dirt, and airborne microorganisms. They are mainly used in medical research, hospital labs/clinical trials, university science labs, microbiology labs, agriculture and veterinary labs etc.
Specifications:
| Model | BBS-V800 | BBS-DDC | BBS-SDC |
| External Size(W*D*H), mm | 802*615*1575 | 1040*600*1730 | 1440*600*1730 |
| Internal Size (W*D*H), mm | 800*600*540 | 940*580*540 | 1340*580*540 |
| Work Surface Height | 660mm | 730mm | 730mm |
| Display | LED Display | ||
| Airflow Velocity | Average of 0.3~0.5m/s, air speed adjustable. | ||
| Material | Main Body: Cold-rolled steel with anti-bacteria powder coating | ||
| Work Table: 304 stainless steel | |||
| Pre-filter | Polyester fiber, washable | ||
| HEPA Filter | 99.999% efficiency at 0.3um | ||
| Noise | <60dB | ||
| Front Window | Manual,5mm toughened glass, anti-UV | ||
| Max Opening | 490mm | 350mm | |
| Fluorescent Lamp | 14W*1 | 21W*1 | 28W*1 |
| UV Lamp | Emission of 253.7 nanometers | ||
| Consumption | 350W | 350W | 600W |
| Waterproof Socket | No | ||
| Caster | Universal wheel with leveling feet | ||
| Power Supply | 110/220V±10%;60/50Hz | ||
| Standard Accessory | Fluorescent lamp, UV lamp*2 ( for all models )
Base stand |
||
| Gross Weight | 120kg | 150kg | 210kg |
| Package Size (W*D*H), mm | 960*770*1800 | 1200*780*1350 | 1600*780*1350 |
Vertical Laminar Flow BBS-DDC
