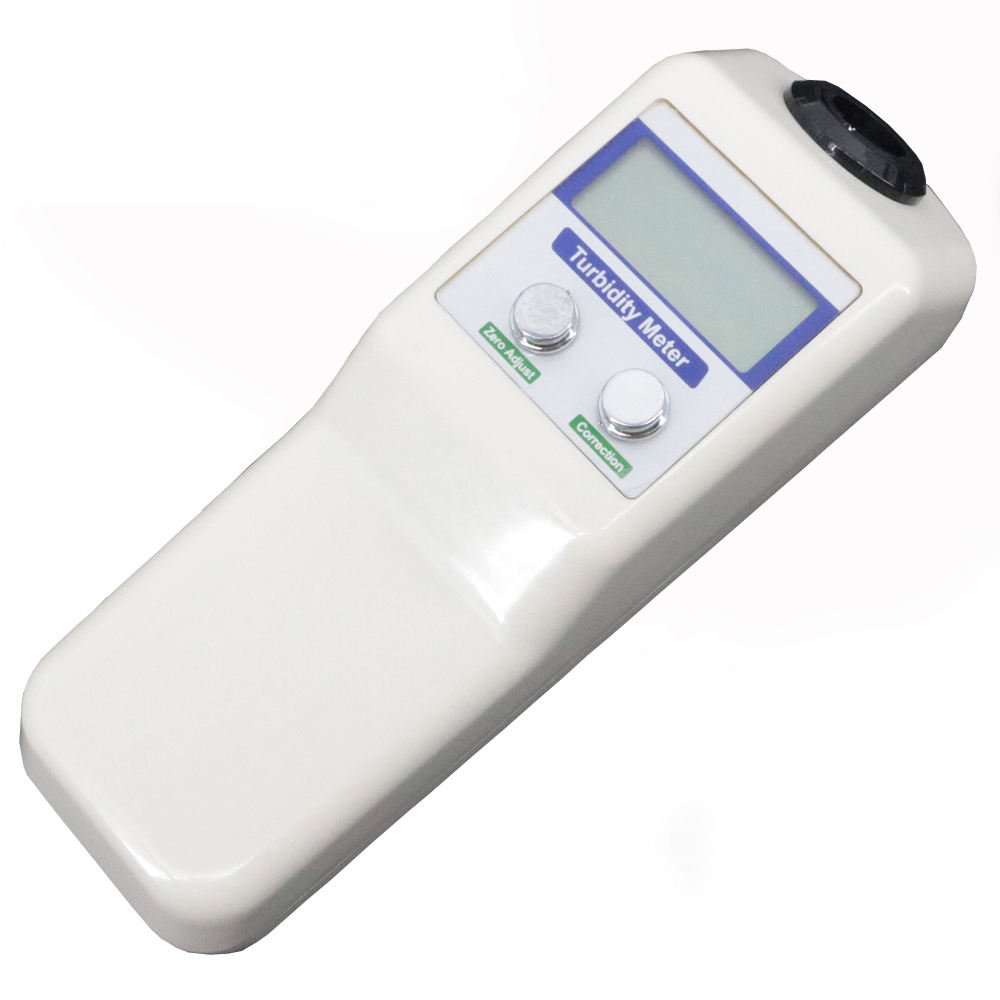

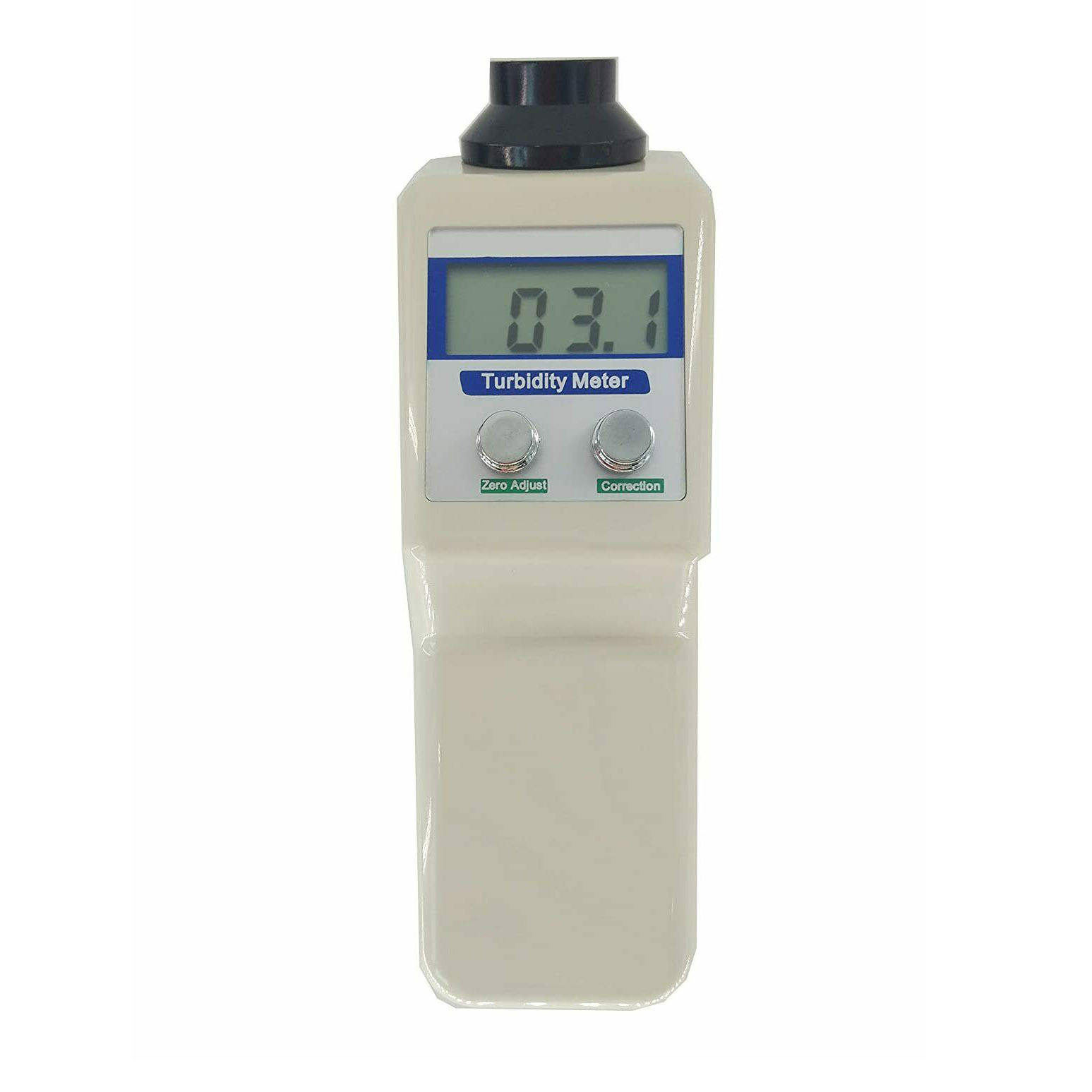

Turbidity Meter 0-200NTU
Turbidity meters are used in environmental monitoring applications to assess the water quality of rivers, lakes, and other water bodies.
High turbidity levels can indicate the presence of pollutants, and regular monitoring can help in identifying and controlling pollution.
Turbidity meters are vital laboratory instruments used to quantify the cloudiness or haziness of liquid samples, indicating the presence of suspended particles and serving crucial roles in water quality analysis, environmental monitoring, and industrial quality control.
These devices measure how much light is scattered or blocked by suspended particles in a liquid, providing a quantitative measure of its turbidity.

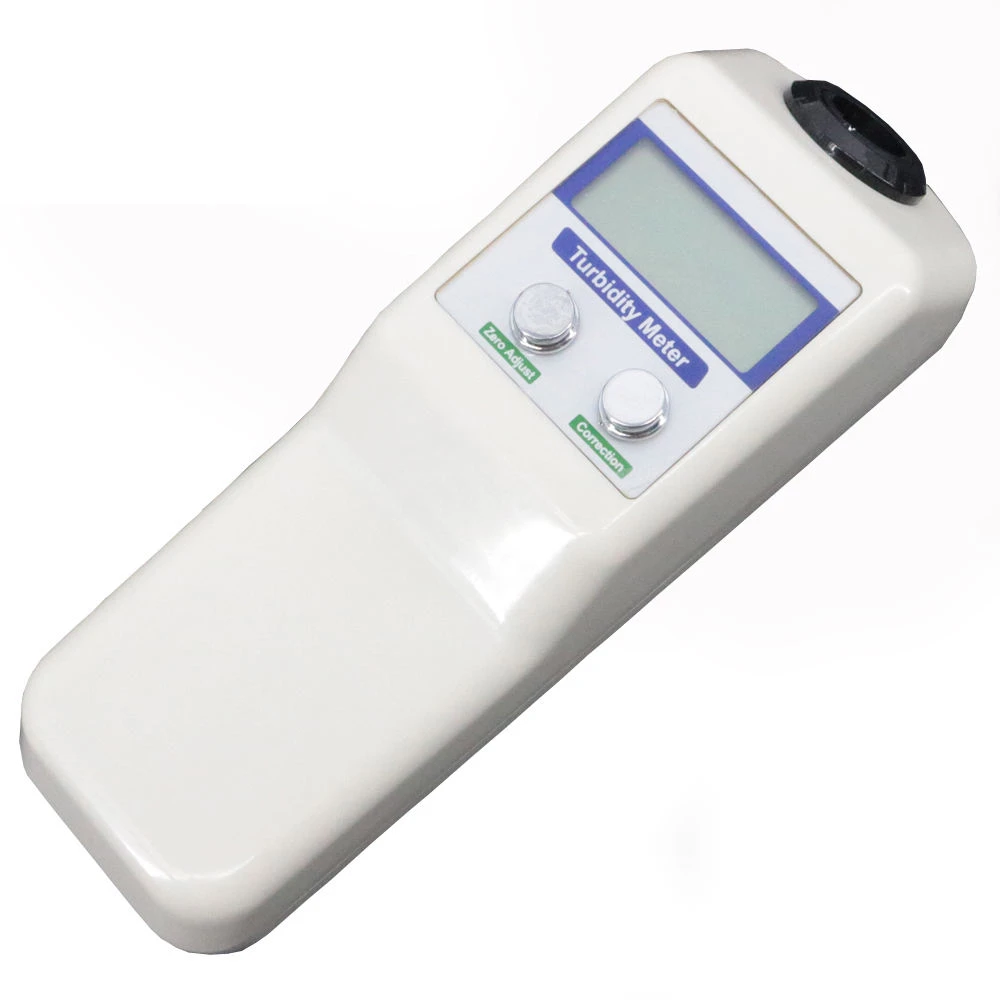

Turbidity Meter 0-200NTU
Product Description
WGZ series of astigmatism degree is scattering turbidity meter used for measuring
suspended in water or in transparent liquids insoluble particles generated by the light,
and can content quantitative table card the suspended particulate matter.
Adopted international standards ISO7027 provisions Formazine turbidity standard
solution calibration, using NTU as the turbidity measurement unit.
Turbidity Meter 0-200NTU
Product Features
♦ AC, DC power supply, low power configuration, small and beautiful appearance,
convenient field or laboratory use
♦ Equipped with automatic shutdown function and low power consumption circuit,
which can effectively extend the battery usage time
♦ The use of large screen high-definition LCD display, has the effect of reading
comfort and not subject to natural light
♦ Use low drift and high precision integrated circuit, high efficiency and long life
light source, can effectively ensure the long time stable working instrument
♦ Positioning the unique structure and optical path system with high precision, and
can effectively guarantee the correctness and the reproducibility of measurements
♦ Low voltage indication function, to prompt the user to replace the battery, so as
to ensure the effective operation of accurate measurement
♦ With the measured values and output interface, can be matched with the recorder

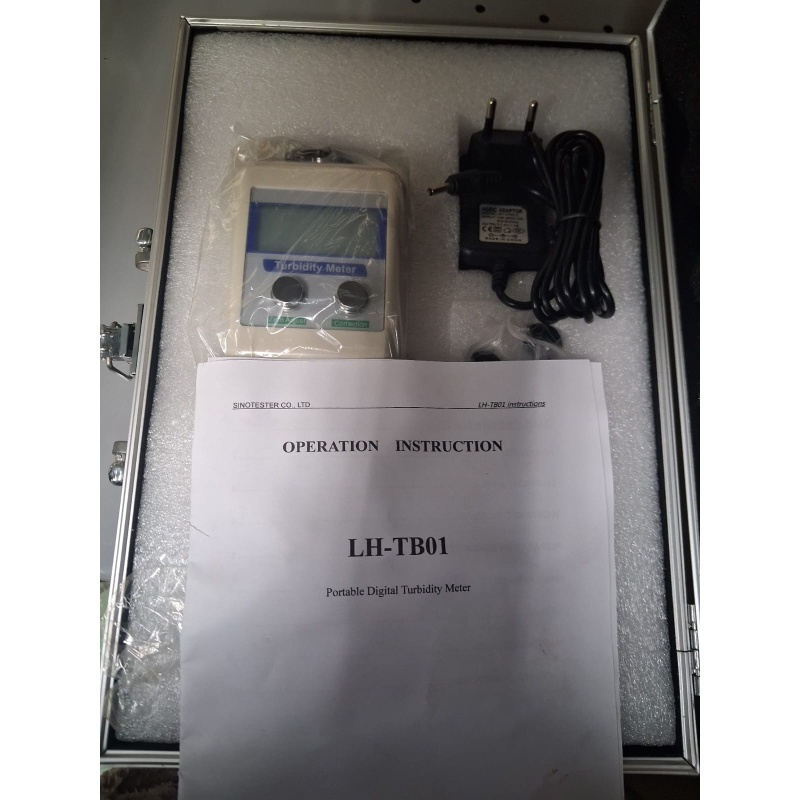

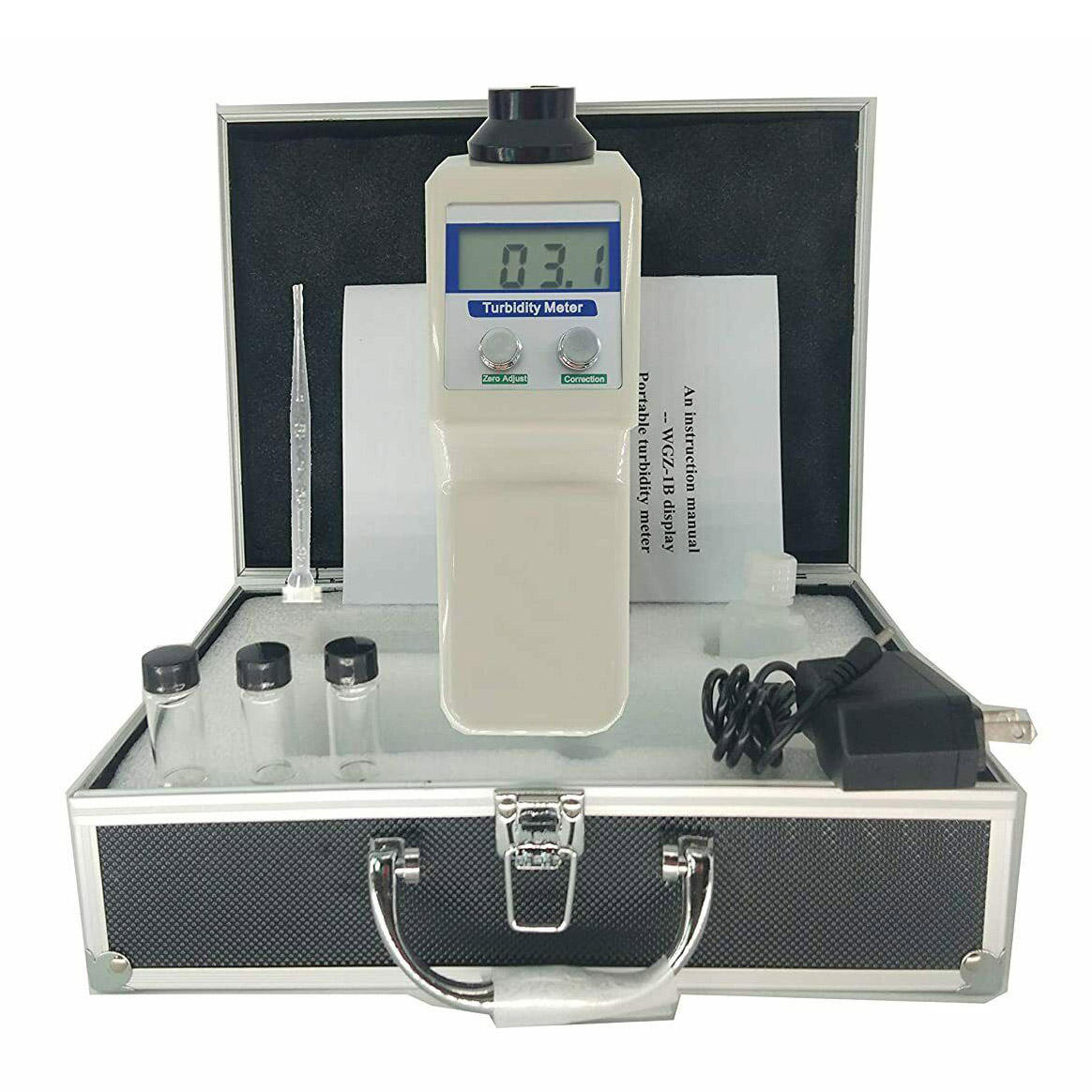

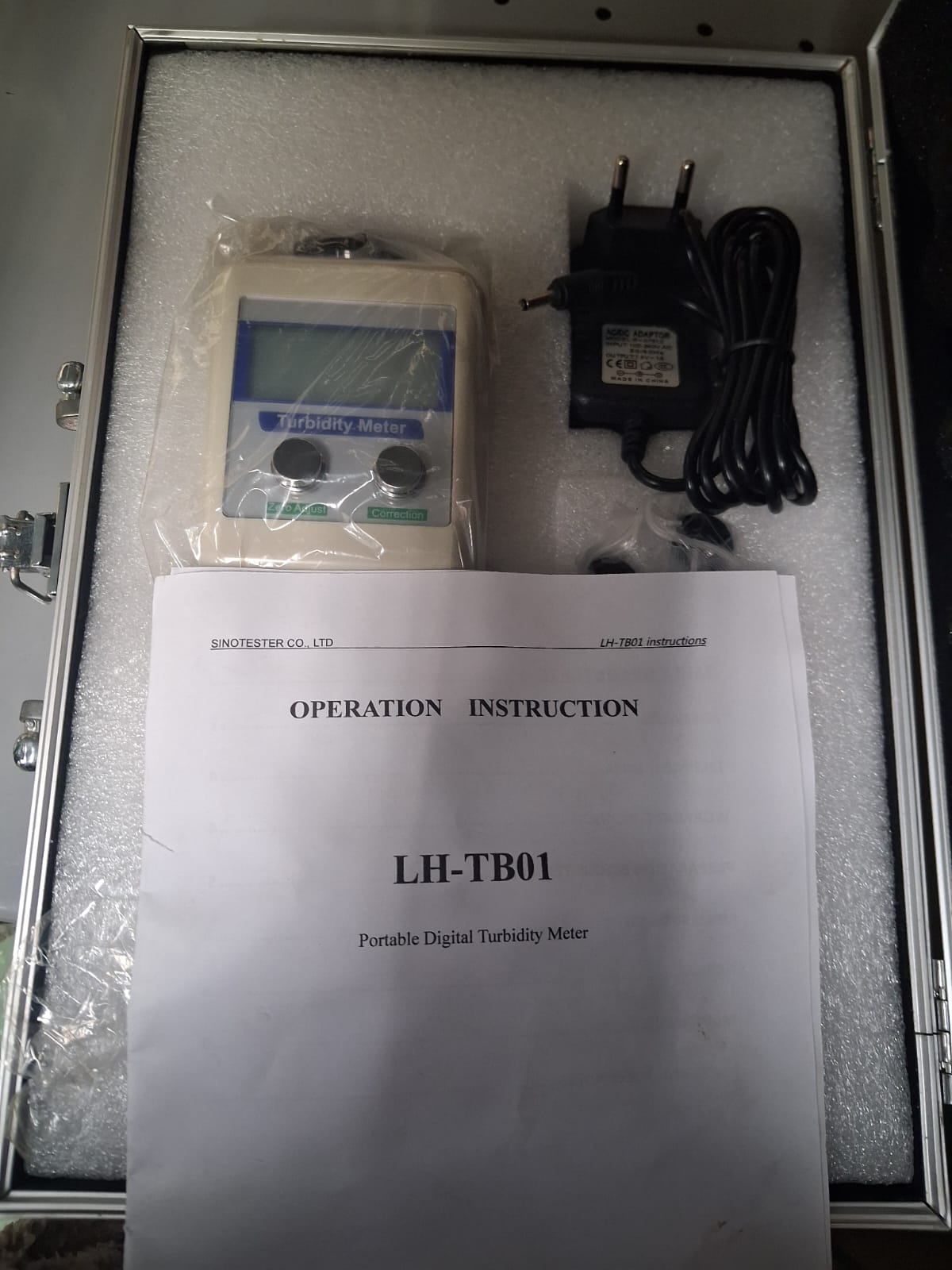

Model WGZ-1B or LH-TB01
Measuring principle 90° scattered light
Measuring range 0-200NTU
Minimum resolution 0.01NTU
Basic error. ± 2.5%F.S
Repeatability. ≤ 1.5%F.S
Zero drift ≤ 0.1 NTU
Variations of the power supply ± 0.5%F.S
Power supply DC1.5V 5 AA alkaline dry battery or
AC220V/50Hz DC7.5 0.2A power adapter
Size/Weight 235x75x65 mm/350g
