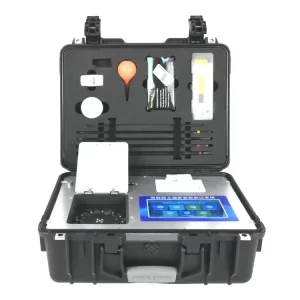

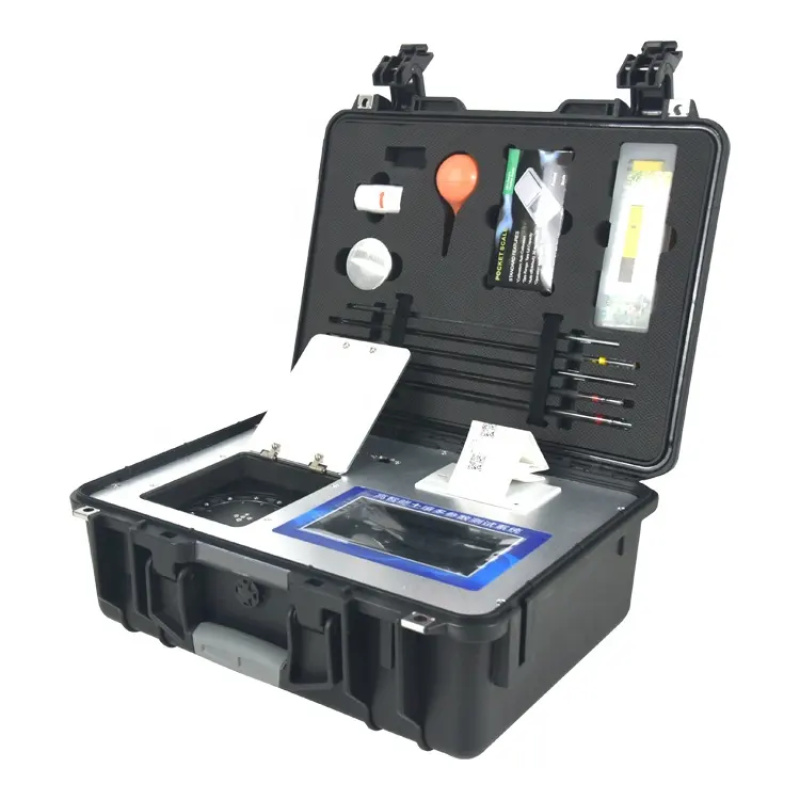

- Soil Nutrient Analyser GT
- Soil Nutrient Analyser provides real-time information on soil nutrient levels.
- farmers can make informed decisions about fertiliser application
- It helps to optimise resource utilisation, and maximising crop yields.
Lead Time: 2-4 Weeks
- Soil Nutrient Analyser GT
|
Instrument Model
|
GT1
|
GT2
|
GT3
|
GT4
|
GT5
|
|
Test items
|
Soil NPK
Organic matter Soil testing formula |
Soil NPK
Organic matter Trace elements Soil testing formula |
Soil/Fertilizer/Plant/Crop NPK
Organic matter Trace elements Soil testing formula |
Soil/Fertilizer/Plant/Crop NPK
Organic matter Trace elements Heavy metal Soil testing formula |
Soil/fertilizer/plant/crop NPK, organic matter, trace elements,
heavy metals, soil testing formula, three-parameter sensor + multi-element sensor |
|
Number of channels
|
6 channels
|
12 channels
|
Rotating colorimetric 8 channels
|
Rotating colorimetric 12 channels
|
Rotating colorimetric 12 channels
|
|
Fertilization system
|
Built-in soil testing formula fertilization system
|
||||
|
Atlas diagnosis
|
Built-in plant nutrition diagnostic standard map
|
||||
|
Repeatability error
|
≤0.03%
|
≤0.03%
|
≤0.02%
|
≤0.02%
|
≤0.02%
|
|
Linearity error
|
≤0.1%(0.001,Copper sulfate detection)
|
||||
|
Power supply
|
AC 220±22V DC 12V+5V (The built-in lithium battery of the instrument can also be used as a vehicle power supply)
|
||||
|
Sensitivity
|
Red light≥4.5×10-5 Blue light≥3.17×10-3 Green light≥2.35×10-3 Orange light≥2.13×10-3
|
||||
|
Wavelength range
|
Red light: 680±2nm; Blue light: 420±2nm; Green light: 510±2nm; Orange light: 590±4nm
|
||||
|
PH value
|
(1) Test range: 1~14 (2) Accuracy: 0.01 (3) Error: ±0.1
|
||||
|
Salt content
|
(1) Test range: 0.01%~1.00% (2) Relative error: ±5%
|
||||
|
Master chip
|
ARM Cortex-A7,RK3288/4-core processor
|
||||
|
Instrument size
|
48cm*34.5cm*22cm
|
||||
- Soil Nutrient Analyser
