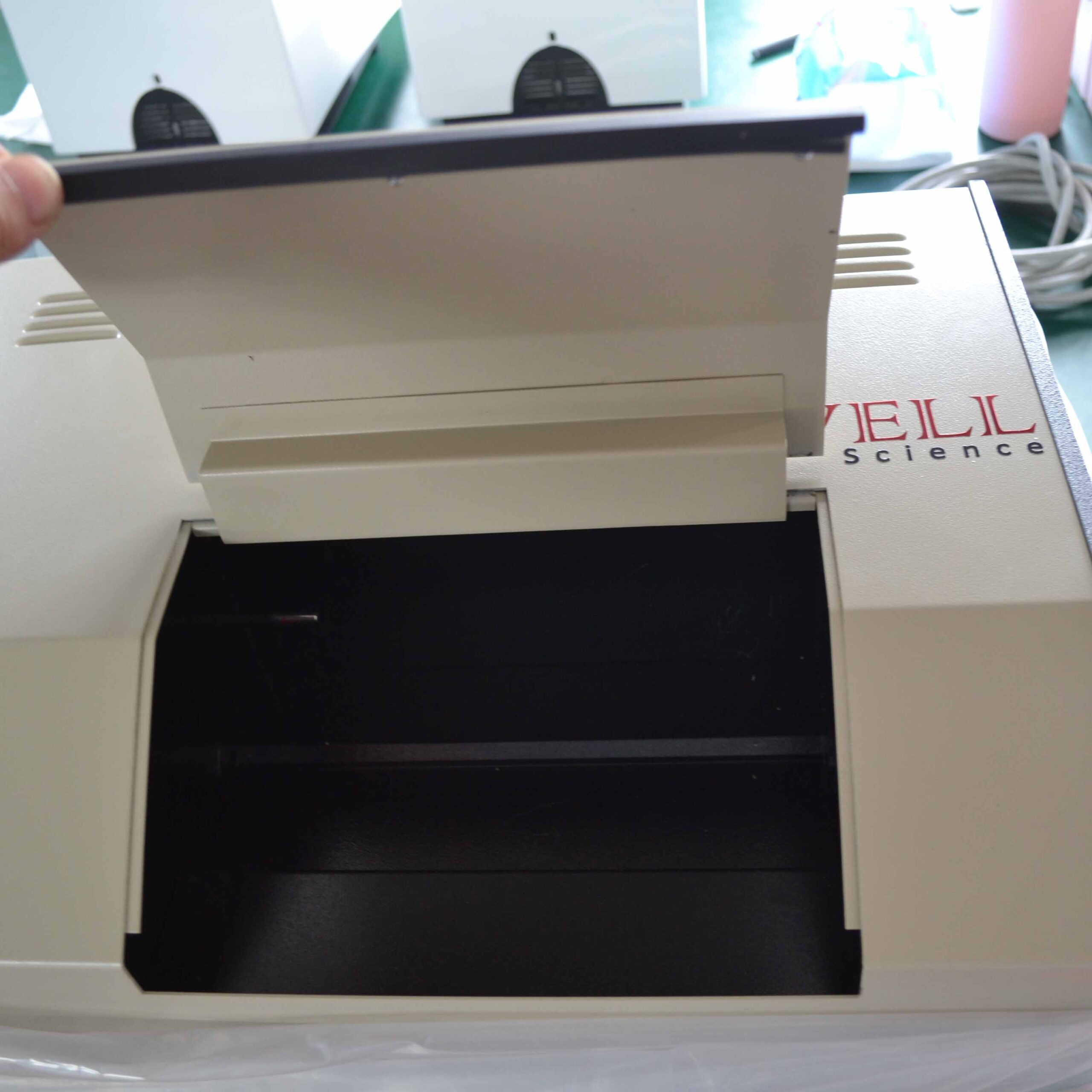

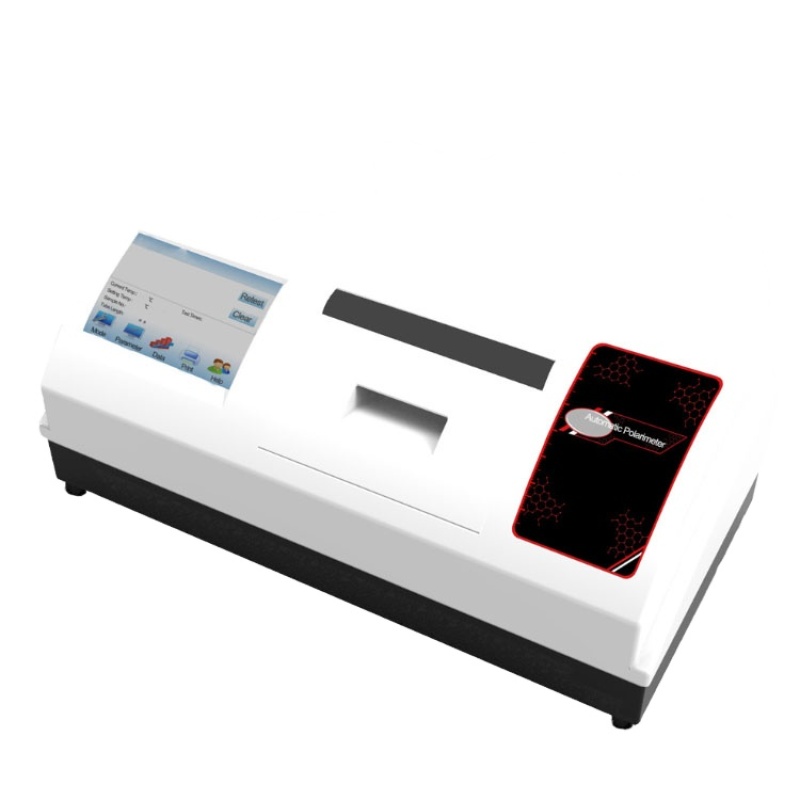

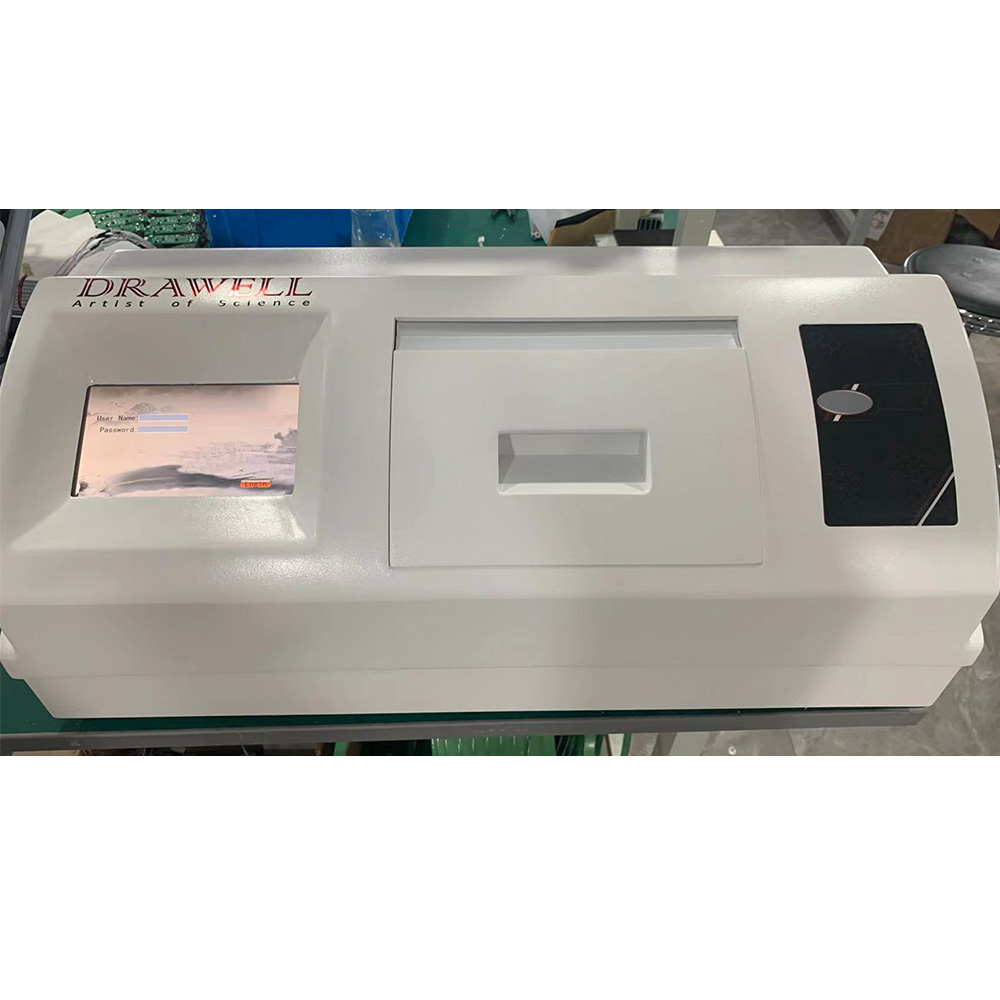

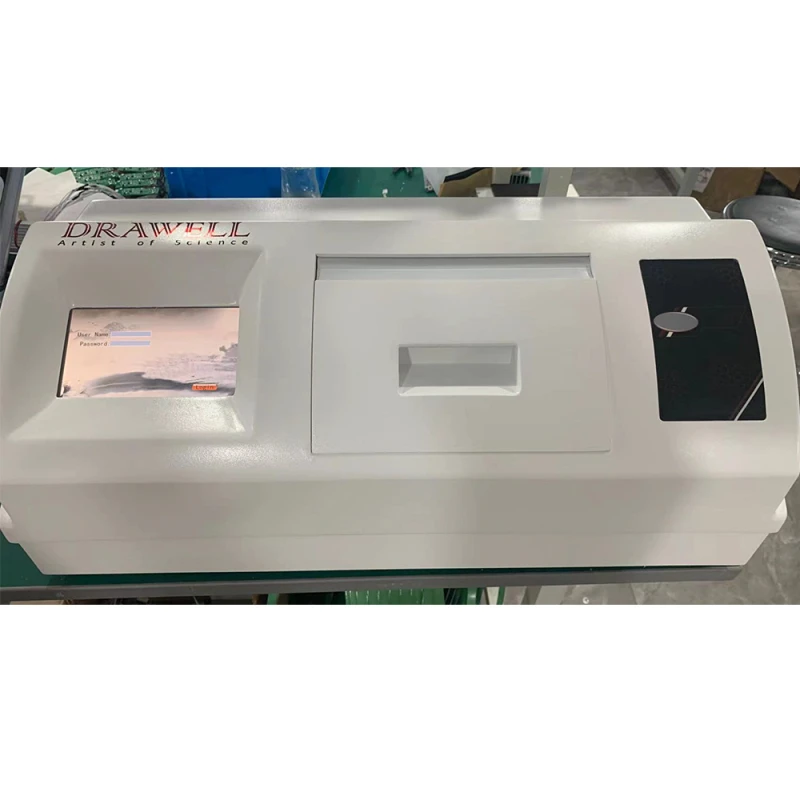

Optical Rotation Polarimeter
A laboratory optical rotation polarimeter is primarily used to measure the optical rotation of substances, which is the extent to which a substance rotates the plane of polarized light.
This measurement is crucial for determining a substance’s concentration, purity, and even its molecular structure.
Here’s a breakdown of the Optical Rotation Polarimeter key applications:
1. Chemical Analysis and Quality Control:
Chiral Purity Determination:
Polarimeters are essential in analyzing the purity of chiral compounds, particularly in pharmaceuticals and agrochemicals, ensuring the correct enantiomer is present.
Concentration Measurement:
By measuring the optical rotation, the concentration of optically active substances like sugars, amino acids, and other chiral molecules can be determined.
Impurity Detection:
Optical rotation can reveal the presence of optically active impurities that might affect the desired properties of a substance.
Stability Testing:
Monitoring changes in optical rotation over time can assess the stability and shelf life of a product.
2. Pharmaceutical Industry:
Drug Purity Verification:
Polarimeters are used to verify the purity of raw materials and final drug products, ensuring they meet quality standards.
Active Ingredient Analysis:
They are used to determine the concentration and purity of active pharmaceutical ingredients (APIs) in formulations.
Quality Control:
Polarimeters play a vital role in quality assurance processes during pharmaceutical manufacturing.
3. Food and Beverage Industry:
Sugar Content Determination:
Polarimeters are widely used to measure the concentration of sugars (like sucrose and glucose) in various food and beverage products.
Quality Control:
They ensure consistency and desired sweetness in products like beverages, jams, and confectionery.
Brewing Industry:
Monitoring sugar concentration during fermentation is crucial for producing consistent and high-quality beverages.
4. Other Applications:
Agriculture:
Analyzing the content of antibiotics, hormones, and other agro-pharmaceuticals.
Research and Development:
Studying the optical properties of novel compounds and the interaction of light with molecules.
Flavor and Fragrance Industry:
Verifying the authenticity and quality of optically active compounds used in perfumes and flavor additives.
5. Instrumentation and Technology:
Automatic Polarimeters:
Modern, automated polarimeters offer increased accuracy, speed, and efficiency in measurements, especially in industrial settings.
Digital Polarimeters:
Provide precise measurements, stable conditions, and automated sample handling, improving reliability and efficiency in analysis.
Optical Rotation Polarimeter Key attributes
warranty. 1 Year
customized support. OEM
brand name. DRAWELL
model number. DigiPol-P
material
/
power
/
voltage. 220V
Resolution
contact
Measurement model
Rotation, specific curl, concentration, sugar content
Measuring range. Optical rotation ± 90 °, Sugar ± 259 ° for Z
Working wavelength. 589.3mm
Accuracy. ± 0.004 °/± 0.002 °
Min. reading. 0.001°/0.001°(0.0001°Optional)
Repeatability(standard deviations). 0.002°(optical rotation)
Temperature control range 10℃-60℃(Peltier )
Display. TFT true color touch screen
Interface. USB, RS232, VGA, Ethernet
Certificate. CE, ISO
Packaging and delivery.
Selling Units. Single item
Single package size. 85X50X50 cm
Single gross weight. 30.000 KG
