Leed Time: 3-4
WeeksOphthalmic Ultrasound A/B Scanner
Ophthalmic Ultrasound A/B Scanner Medical Equipment for biometry eye test in ophthalmology
Specifications

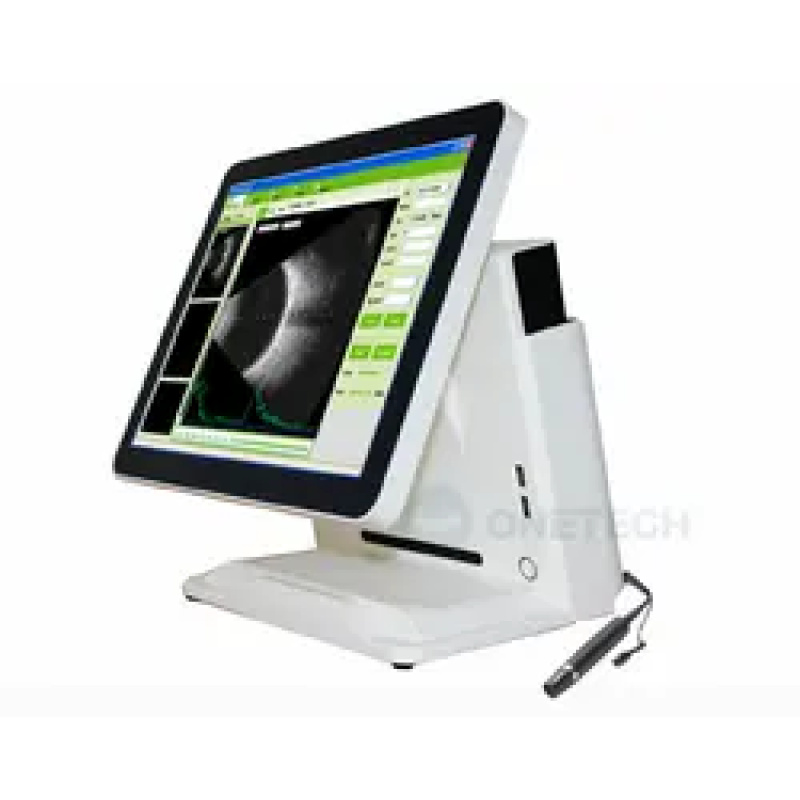

B30T Ophthalmic A/B Scanner
– B30T A/B Scan with normal, vitreous body enhancement, retina observation mode.
– mainly used for diagnosis of intraocular diseases, display the location, shape range of the focus of infection and the relationship with the surrounding tissue.
– Can be diagnosed vitreous opacity, retinal detachment, eye base tumors etc. eye diseases.
– A scan is used to measure anterior chamber depth, lens thickness, axial length, calculate diopter of implant IOL as well.
B Scan
Ophthalmic Ultrasound A/B Scanner
|
Frequency:
|
12.5MHz/20MHz (optional) ,Magnetic driven, noiseless
|
|
Scanning Mode:
|
Sector Scanning
|
|
Magnify：
|
Multi continuous magnification,Real-Time magnification
|
|
Resolution:
|
Lateral ≤0.3mm; Vertical≤0.2mm
|
|
False Color:
|
Multi colors. OCT
|
|
measurement type:
|
multigroup distances, perimeters and areas
|
|
Image postprocessing:
|
multiple curves processing, Pseudo-color processing curve
|
|
Movies:
|
100 images movie review, AVI JPG format image output
|
A Scan
|
Frequency:
|
10MHz, with LED
|
|
Depth:
|
40mm
|
|
Precision:
|
±0.05 mm
|
|
Eye mode:
|
Phakic / Aphakic / Dense / Various IOL
|
|
IOL Formula:
|
SRK-II, SRK-T, HOFFER-Q, HOLLADAY,BINKHORST-II, HAIGIS
|
|
Stat. Calculation:
|
Average and standard deviation
|
|
Store:
|
10 Scanning results for each eye
|
|
Display Mode:
|
B, B+B, B+A, A
|
