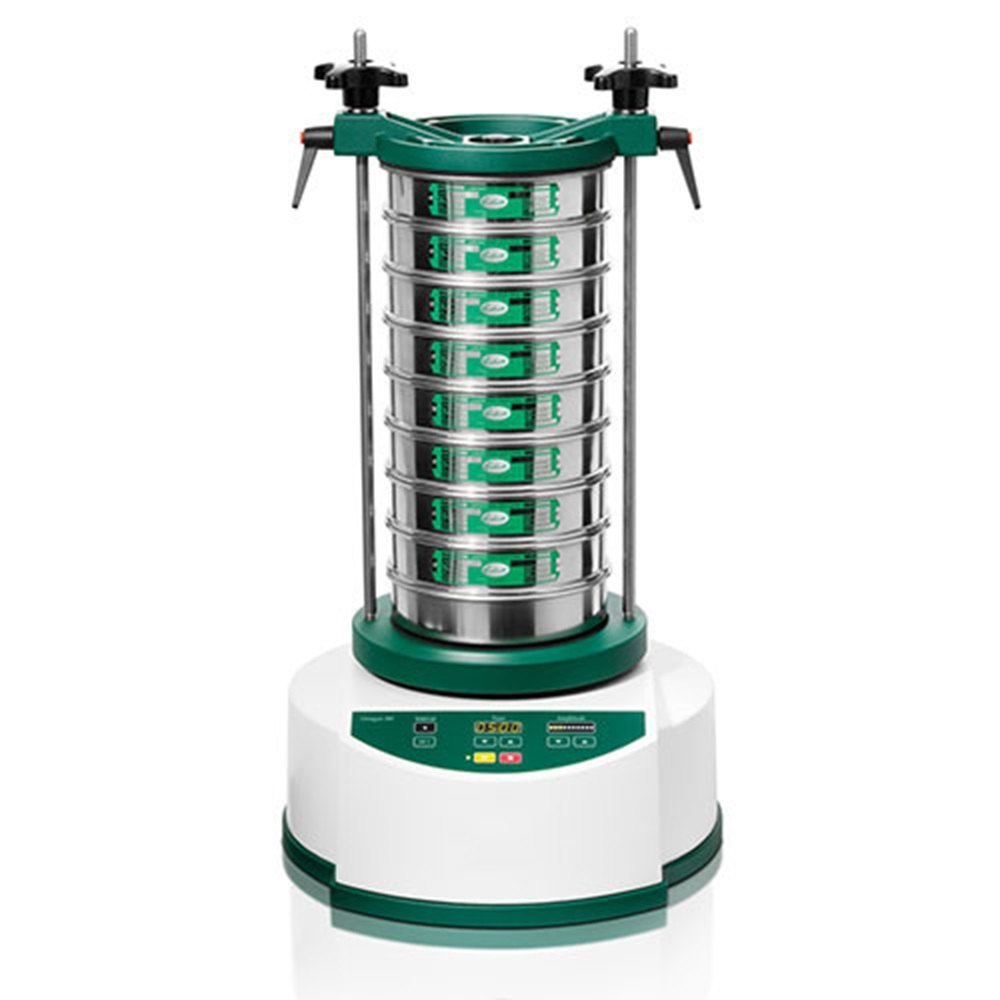

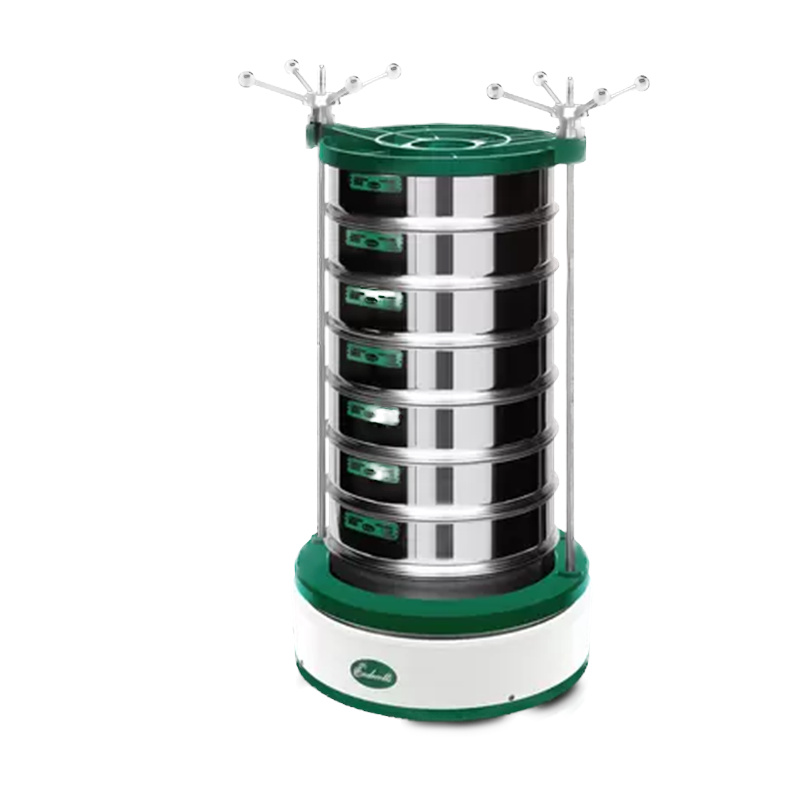

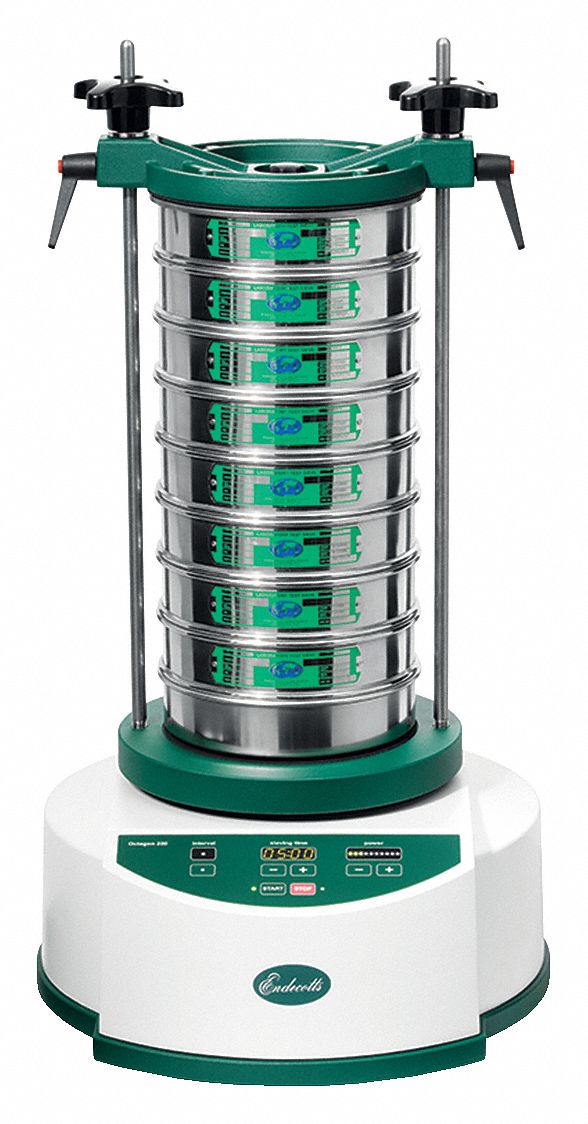

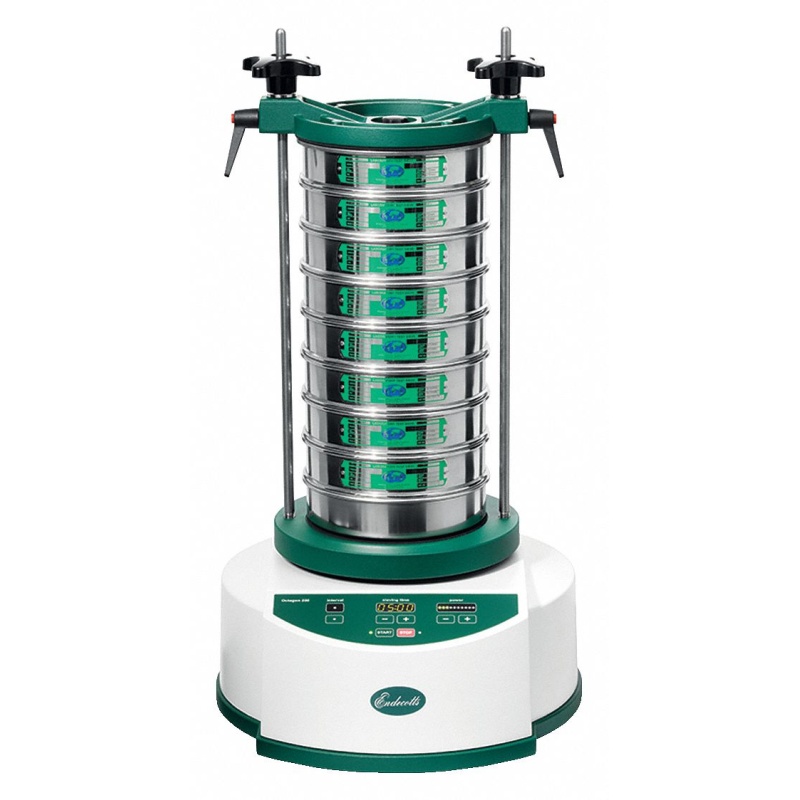

Octagon D200 Digital Sieve Shaker

Octagon D200 Digital Sieve Shaker

The sieve shaker Octagon 200 is suitable for all sieving tasks in laboratories as well as onsite and provides optimum sieving action for fast and reproducible results. It is robust, compact and sufficiently lightweight to be portable.

Octagon D200 Digital Sieve Shaker

The high performance digital shaker

Octagon D200 Digital Sieve Shaker

• Total operator control
• Easily set to maximum efficiency
• Non blinding sieving action
• Compact
• Portable
• No mechanical moving parts
• Precise sieve clamping
• Suitable for wet or dry sieving
• For 200 mm & 8 inch diameter sieves

The Octagon D200 is ideal for laboratories or on site use.

• It is robust, compact and sufficiently lightweight to be portable.
• A digital display makes the setting functions very straightforward.
• The Octagon is powered by an electromagnetic drive which has no rotating parts to wear making it maintenance free and extremely quiet in operation.
• The vibratory action produced by the power unit moves the sample over the sieve in a unique way producing faster more efficient sieving, while the rapid vertical movements also help to keep the apertures from blinding.

The Octagon’s digital controller is used to set both the process time and the amplitude setting while a further control enables the vibration to run continuously or intermittently.

• Intermittent vibration improves performance and helps to clear apertures that may have become blocked. The controller will also set the duration of the ‘on’ and ‘off’ times of the vibration.
• The Octagon D200 Digital offers total flexibility enabling optimum settings to be established for virtually any material under test.
• The shaker is fitted with a new and totally unique clamping device which ensures sieves are held firmly without overtightening and allows them to be quickly removed and replaced.
• Non-metallic springs and anti-vibration mountings are fitted to isolate vibrations from work surfaces and reduce noise levels.

SIEVE SHAKER OCTAGON 200
TECHNICAL DATA

Range 20 µm to 125 mm
Drive / sieving motion electromagnetic 3D
Max. batch / feed capacity 3 kg
Max. number of sieves 8 full height / 16 half height (200 mm / 8″ sieves)
Amplitude 0 – 3 mm*
digital setting in 10 steps
Speed 3,000 min-1 at 50 Hz
Time display digital, 00:10-99:50 min
Interval operation yes (one mode)
Suitable for dry sieving Yes
Suitable for wet sieving Yes
Serial interface no
Sieve diameter 100 / 200 mm
8”
Max. height of sieve stack up to 450 mm
Clamping device quick-release clamping system (included)
Model benchtop
Protection code IP 21
Electrical supply different voltages available
Power connection 1 – Phase
W x H x D 418 x 232 x 435 mm
Net weight ~35 kg
Standards CE

*Sieves supplied separately
