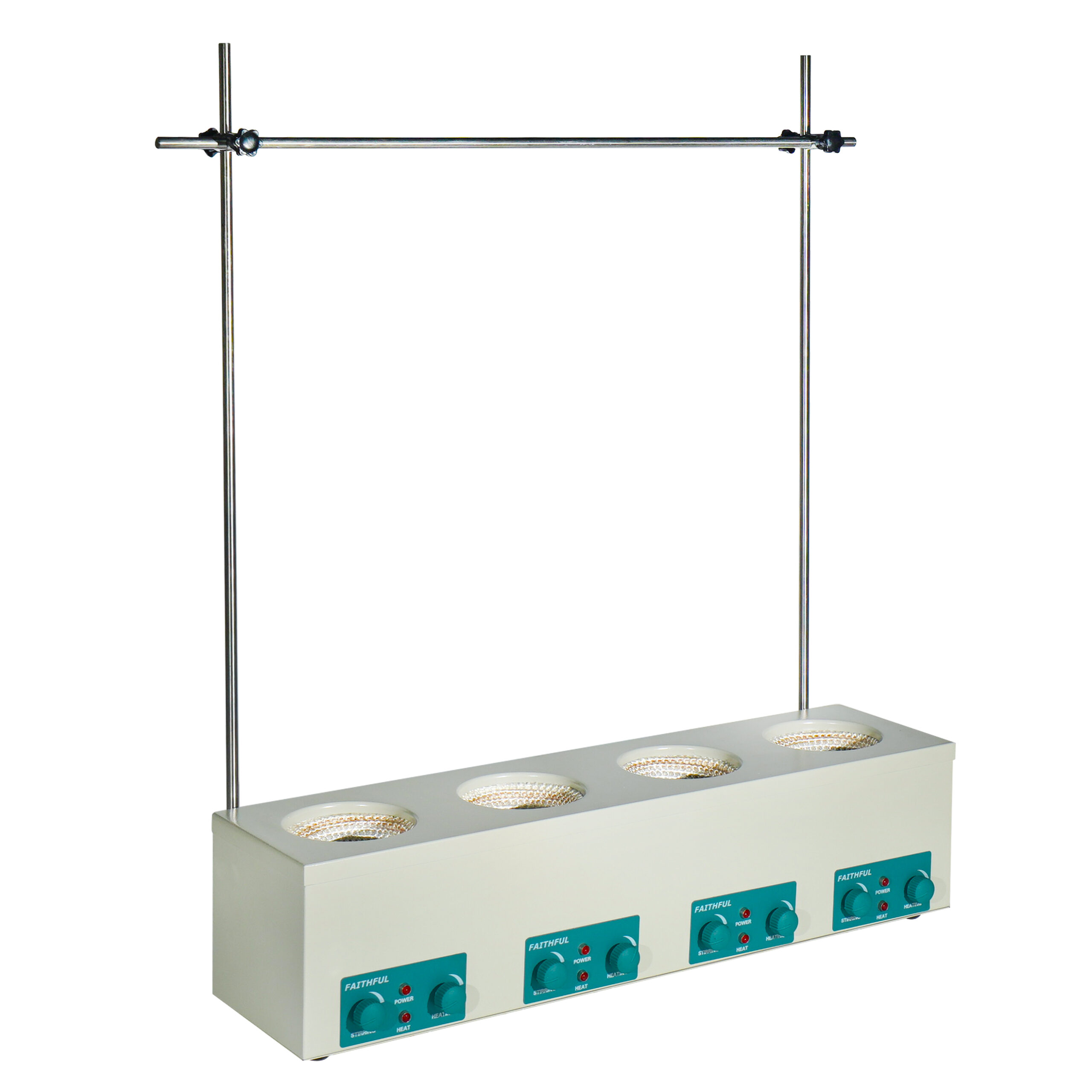

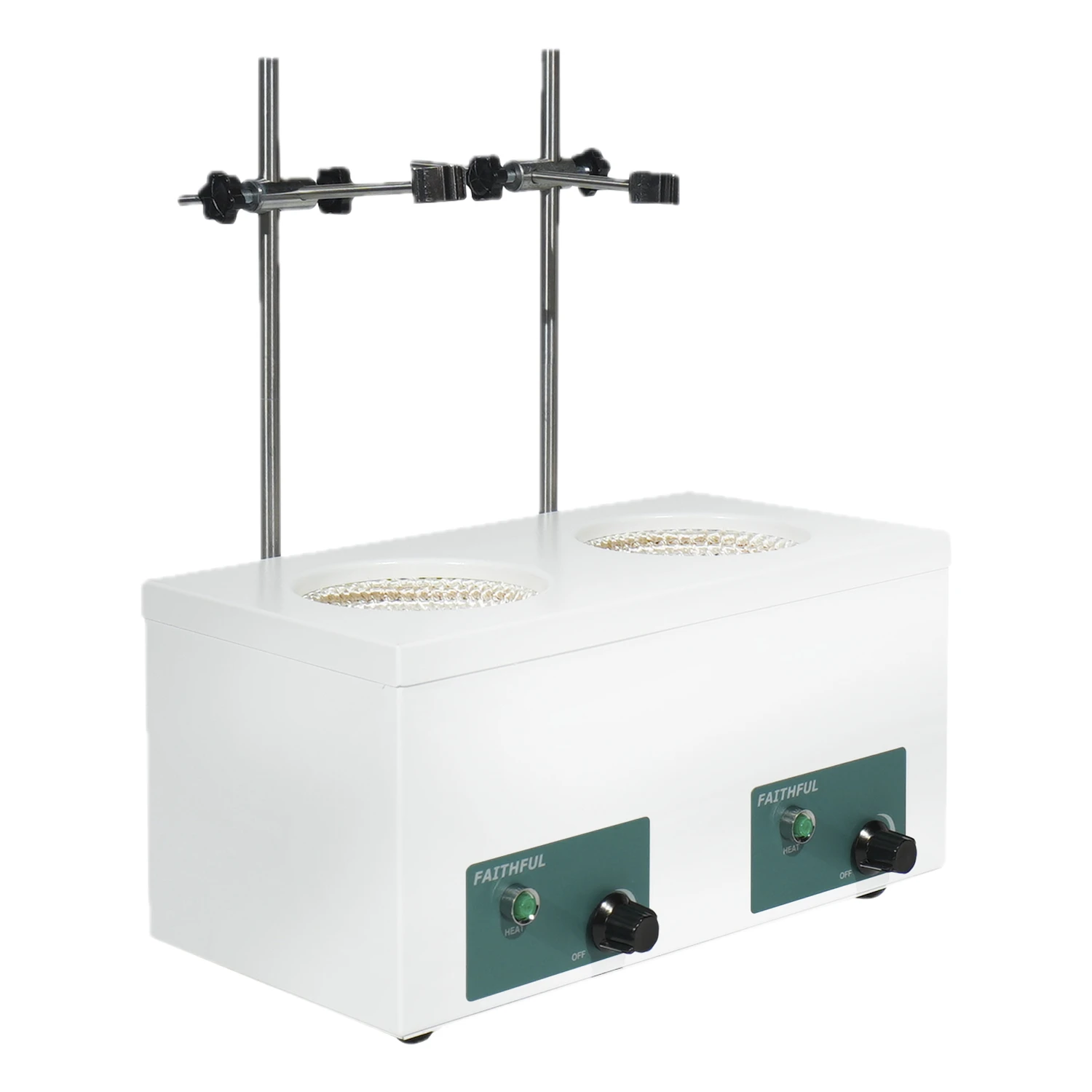

Multi-Position Heating Mantle
Multi-Position Heating Mantles are laboratory devices used for simultaneous, uniform heating of multiple flasks (22–66positions) in applications like parallel synthesis, refluxing, and distillation.
They are essential in petrochemical, pharmaceutical, and educational labs for controlled heating up to 450∘C.
Key Uses and Applications:
Parallel Chemical Reactions: Allows for multiple, independent, or simultaneous reactions, ideal for high-throughput experiments.
Distillation and Reflux: Used for boiling, evaporation, and extraction processes, often featuring independent temperature control for each flask.
Sample Preparation: Ideal for heating, drying, and tempering liquid samples in pharmaceuticals, environmental studies, and food analysis.
Controlled Heating: Provides uniform heating to round-bottom flasks without the risks associated with open flames or oil baths.
Key Features:
Independent Controls: Each position typically has a dedicated knob for, or digital control of, temperature.
Safety: Designed with corrosion-resistant, high-temperature insulating materials.
Sizes: Available in various capacities, often accommodating multiple 250ml, 500ml and 1000ml
Notable Technical Features
Independent Controls: Most models, such as those from Labdex or Wiggens, feature individual knobs or digital PID controllers for each position, allowing different temperatures for each flask.
Stirring Integration: Some models, like the Labnics Stirring Heating Mantle, combine heating with magnetic stirring to ensure uniform solution mixing and prevent cold spots.
Safety Materials: Built with corrosion-resistant shells and alkali-free glass fibre or aluminium silicate fibre sleeves to provide thermal insulation and protect the workspace from heat damage.
Multi-Position Heating Mantle
Specification
item. Multi-Position Heating Mantle
Warranty. 2 years
Customized support. OEM
Brand Name. Various Brands
Model Number 98-IV-B
Material. steel
Heating mode. Surface heat conduction
Surface Max. temperature. 450℃
Temp. range. Rt+vfc20~250℃
Heating element. Nickel chromium alloy wire
Work model. Continuous
Voltage. 100~120V or 200~240V
