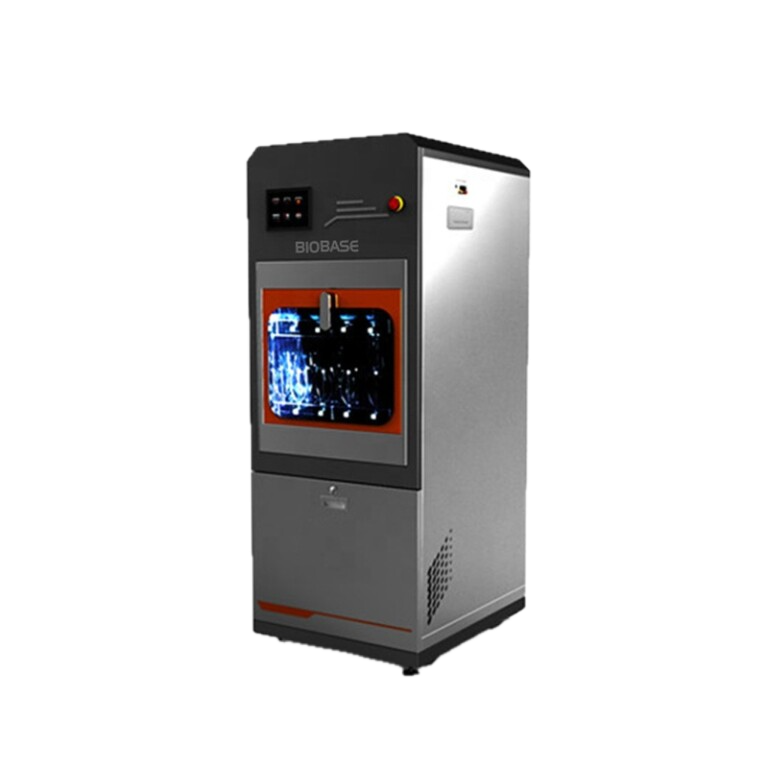

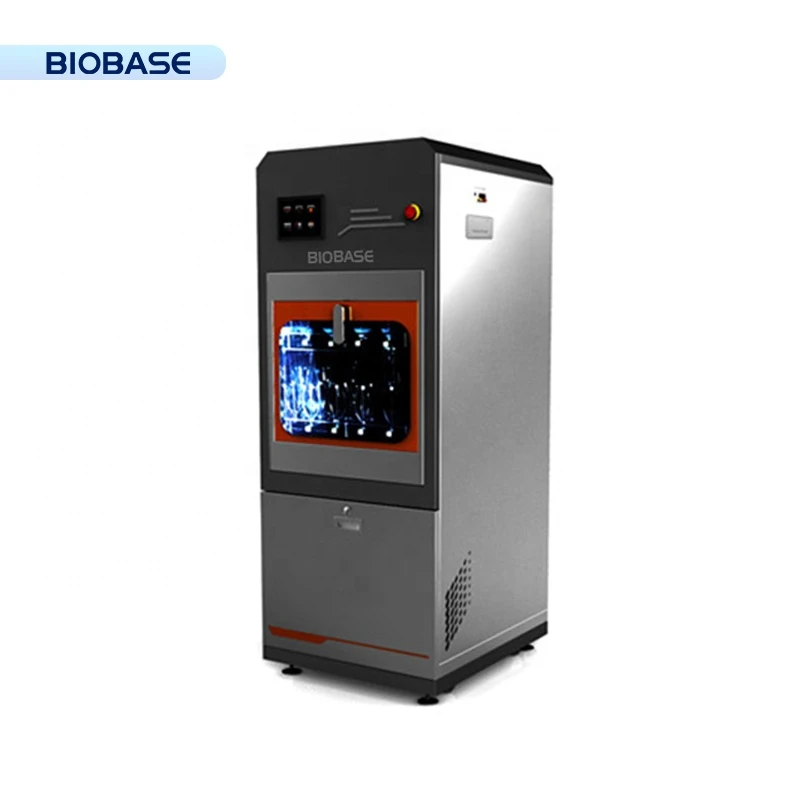

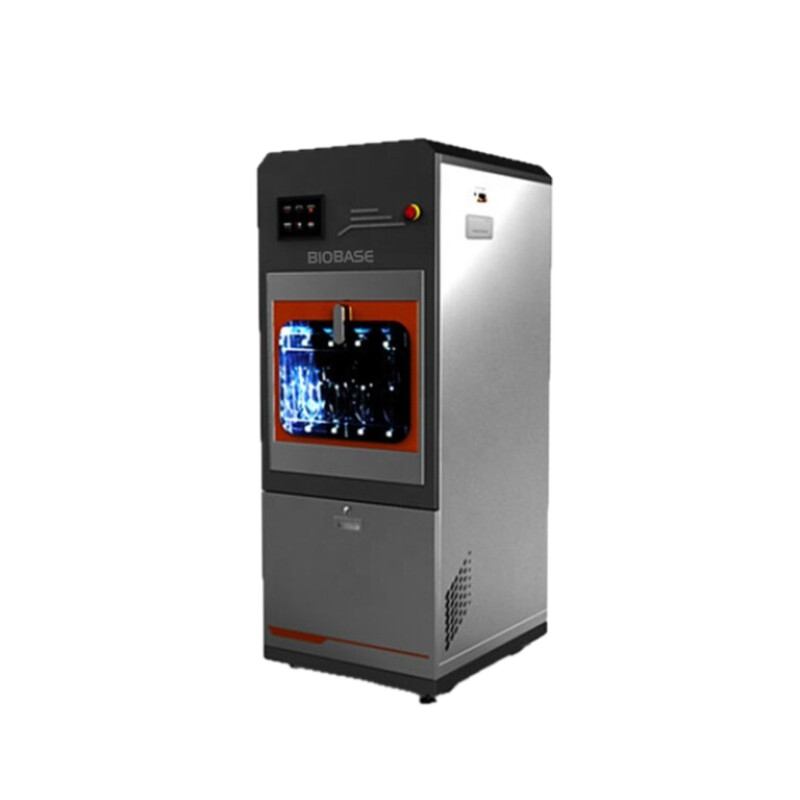

Laboratory Glass Washer BK-LW220
R459,952.00
Glass-washer: BK-LW220
| Weight | 330 kg |
|---|---|
| Dimensions | 85 × 100 × 210 cm |
Laboratory Glass Washer BK-LW220
Laboratory glass washers are automated, high-temperature machines designed to clean, disinfect, and dry laboratory glassware (pipettes, flasks, petri dishes) by removing chemical residues, organic materials, and particles. They ensure consistent, validated cleaning, prevent contamination, and improve safety in analytical, pharmaceutical, and research labs while reducing manual labor. Laboratory Glass Washer BK-LW220
Key Uses and Applications
Contamination Removal: Effectively removes residue from chemical analysis, biological reagents, and particulate buildup.
Sterilisation and Disinfection: Uses high-temperature water (often up to 95∘C or 200∘F+) to ensure microbiological cleanliness.
Laboratory Types: Used in chemical analysis, research, pharmaceutical development, environmental testing, and clinical laboratories.
Automated Drying: Utilizes forced air drying and HEPA filters to ensure labware is clean and dry.
Specific Cleaning Programs: Specialised racks and programs (e.g., injector nozzles) clean the interior of narrow-necked flasks and bottles.
Advantages Over Manual Cleaning
Efficiency: Automated processes save time, with some units cleaning up to 60 items in 24 minutes.
Validation: Automated, reproducible cycles provide consistent, documented results crucial for regulatory compliance (FDA/GLP).
Safety: Reduces personnel exposure to hazardous chemicals and high-temperature water.
Efficiency: Uses less water per cycle (approximately 13 gallons) compared to manual washing, which can use 20 gallons or more for similar loads.
Laboratory Glass Washer BK-LW220
Common Components and Options
Stainless Steel Construction: Uses AISI 316L stainless steel chambers to prevent corrosion.
Water Types: Uses potable, hot, and purified (DI/RO) water for final rinses to eliminate mineral residues.
Detergent Injection: Peristaltic pumps dispense specialised alkaline or acid cleaners for enhanced cleaning
Laboratory Glass Washer Machine BK-LW220
Laboratory Glass Washer BK-LW220
Lead Time: 4-6 Weeks
Features:
- Laboratory Glass Washer Machine BK-LW220
* Rapid and efficient drying system, designed with independent air heater, HEPA filter and drying process;
* Water heating temperature can reach 99℃, while hot air drying temperature can reach 120℃;
* Professional configuration design—stainless steel for corrosion resistance;reinforced glass window mounted to achieve a clear view on washing process;
* PLC touch screen control with preset 6 programs and 99 cutomized programs
* Safety protection—electronic security door lock to prevent unexpected door opening, water & drying air temperature dual control and equipped with emergency switch.
|
Model
|
BK-LW120
|
BK-LW220
|
BK-LW320
|
|
Capacity
|
120L
|
220L
|
320L
|
|
Water Consumption/Cycle
|
15L
|
||
|
Inlet Water Pressure
|
0.03~0.8Mpa
|
||
|
Noise
|
≤50dB
|
≤55dB
|
|
|
Material
|
Internal material: SS316, Outer material: SS304
|
||
|
Overall Power Consumption
|
6KW
|
6.5/16.5KW
|
6.5/18KW
|
|
Power Consumption-Water Washing
|
0.75KW
|
1.5 KW
|
|
|
Power Consumption-Water Heating
|
5KW
|
5/15KW
|
|
|
Power Consumption-Drying
|
2.1KW
|
3.6KW
|
|
|
Power Supply
|
AC220V, 50Hz
|
AC220V, 50Hz; 380V, 50Hz
|
|
|
Cleaning Racks
|
1 pcs
|
2 pcs
|
3 pcs
|
|
Standard Cleaning Racks
|
BKIR36*1
|
BKIR36*2
|
BKIR36*3
|
|
Standard Accessories
|
One bucket RBS A 155 leaner (1 L), One bucket RBS A 375 neutralizer (1 L)
|
||
|
Optional Accessories
|
USB interface, printer, cleaning racks
|
||
|
Washer Chamber Size(W*D*H)mm
|
600*629*465
|
600*629*658
|
600*629*820
|
|
External Size(W*D*H)mm
|
960*740*850
|
780*690*1760
|
790*690*1950
|
|
Package Size(W*D*H)mm
|
1100*950*1050
|
1000*850*2100
|
1000*840*2180
|
|
Gross Weight(kg)
|
145
|
330
|
350
|
Laboratory Glass Washer BK-LW220
Lead Time
- Standard Lead time: 3 - 4 working days.
- Imports: 4 - 6 Weeks
Dangerous Chemicals
Please note that an affidavit is required for the purpose of dangerous chemicals, clearly stating the intended use of the chemical.
