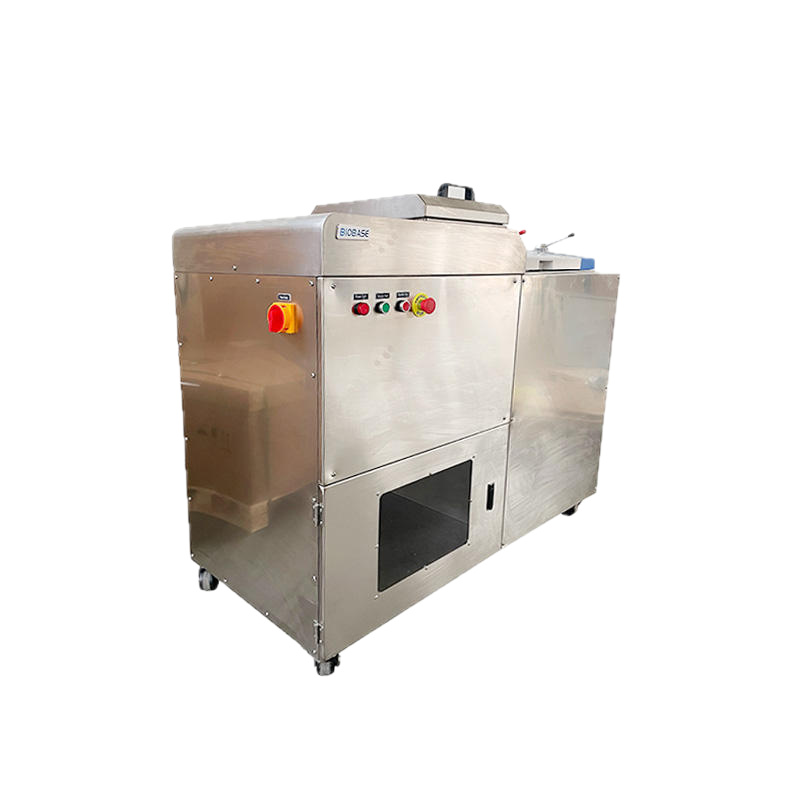

Integrated Autoclave with Shredder
An integrated autoclave with a shredder is a medical waste treatment system that combines shredding and steam sterilisation processes into a single, enclosed unit.
This automated system treats infectious waste on-site, first shredding the waste into smaller pieces and then sterilising it with steam under pressure to render it non-infectious and environmentally friendly.
These systems are ideal for hospitals and healthcare facilities, providing a safe, efficient, and green solution for managing medical waste.
Integrated Autoclave with Shredder Features:
1. The volume of medical waste is reduced by about 60% after treatment, and the storage and transportation efficiency is doubled.
2. The height of the whole machine is ≤1.5m, which can be easily adapted to small spaces such as hospital treatment rooms and laboratories.
3. The working noise is ≤70 decibels, and there is no noise pollution to interfere with medical order.
4. The torque is large during the rotation process and it is not easy to get stuck. Even if it gets stuck, the machine will detect it by itself and reverse it.
5. A safety switch is set in the dangerous place. When the feeding port cover is opened, the machine will automatically stop running.
Integrated Autoclave with Shredder
Safety Protection:
1. Equipment over-temperature automatic protection function.
2. Dual mechanical safety interlock device.
3. Dual overpressure protection.
4. Overcurrent leakage safety device.
5. Door in place detection device.
Technical Parameters:
Model. BK-PS50
Whole Machine Size(L*W*H) 1430*670*1165mm
Whole Machine Weight. 408±5kg
Shredder Part.
Motor Power. 1.5KW
Speed 8/10rpm
Feeding Port Size. 300*320mm
Blade Thickness. 15mm
Blade Diameter. φ172mm
Blade Number 14pcs
Material The shredder part is made of alloy steel and the outer shell is made of 304 stainless steel
Capacity. 5~10kg/h
Autoclave Part
Power 4KW
Setting Temperature. 105~136℃
Setting Time. 0~999min
Chamber Material. S30408
Chamber Size. φ385±5*515±5mm
Noise. ≤65dB
Power Supply. AC220V, 50/60Hz
Integrated Autoclave with Shredder
