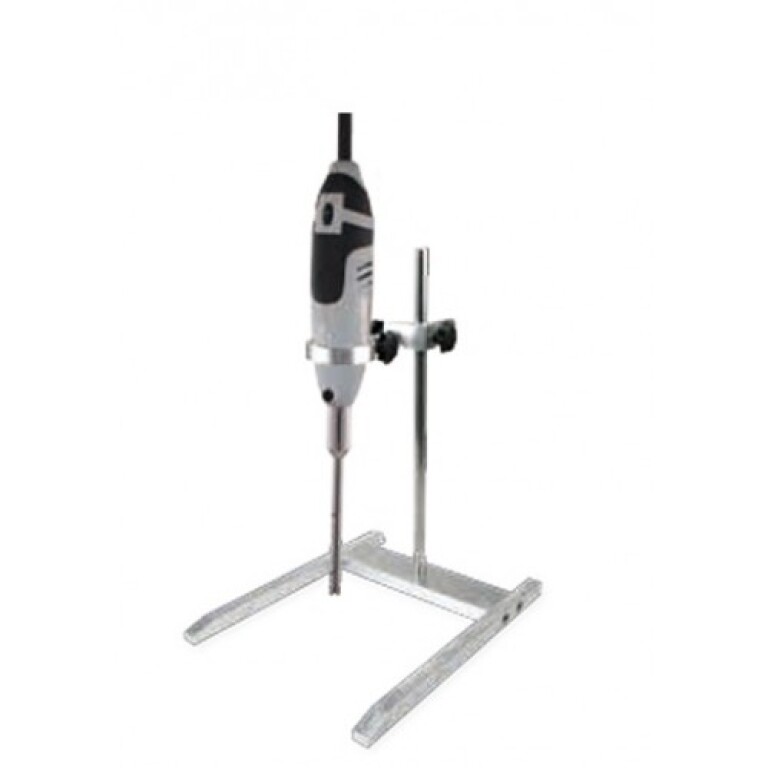

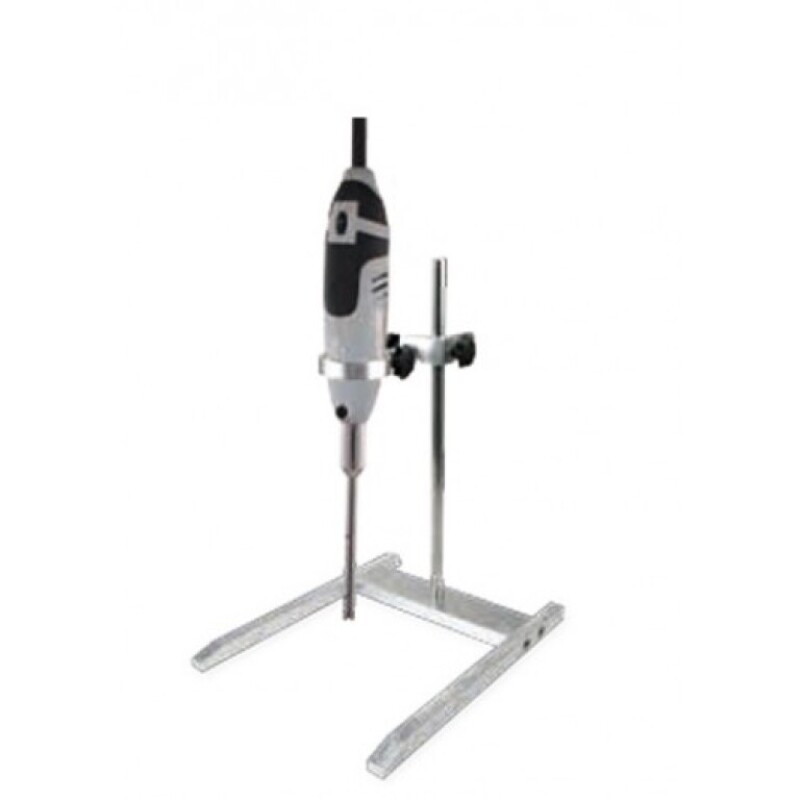

Homogeniser 8000-30000rpm
Lead Time: 2-3 Weeks
A homogenizer is a piece of laboratory or industrial equipment used for the homogenization of various types of material, such as tissue, plant, food, soil, and many others. Many different models have been developed using various physical technologies for disruption
Features:
* Lightweight design, handheld and can be operated with one hand.
* The application of different dispersing heads is suitable for liquid samples of 0.1-250ml.
* High-quality 316L stainless steel dispersing head, corrosion-resistant, high-temperature sterilization.
* The dispersing head is easy to disassemble and clean; high-speed and high-efficiency motor.
* The speed is adjustable in 10 gears, and the speed range: 8000-32000rpm.
Homogeniser 8000-30000rpm
Product Paramenters
Model. D-160
Item No. 8034111000
Recommended Configuration Package 1: D160 drive, H370 Stand, DS-160/5 shaft, volumes from 0.1-50ml
Package 2: D160 drive, H370 Stand, DS-160/10 shaft, volumes from 1-250ml
Speed Range. 8000-32000rpm
Max. Circum. Speed 6.3-14m/s
Speed Control 10 stage
Working Volume (H2O) 0.1-50ml (Dispersing shaft DS-160/5)
1-250ml (Dispersing shaft DS-160/10)
Max. Viscosity 5000mPas
Material of Dispersing Shaft SS316& PTFE seal ring
Noise. ≤72dB
Ambient Temp. 0-40°C
Relative Humidity 85%RH
Protection Type. IP20
Consumption 160W
Motor Type. AC carbon brush motor
Power Supply. AC110/220V±10%, 50/60Hz(Customisable)
Standard Accessory. Base stand+DS-160/5 dispersing shaft Or Base stand + DS-160/10 dispersing shaft
External Size(W*D*H) 45*55*190 mm
Package Size (W*D*H) 470*240*250mm
Gross Weight 4kg
Homogeniser 8000-30000rpm
Power: 160W, Analogue 6 Stage Speed Range: 8000 – 30000rpm, Max Viscosity: 5000mPa, Comes Standard with H-stand and 316L Stainless Steel 5mm dispersing shaft for solid/liquid media, Volumes: 0.1 – 50ml, Max. Circum. Speed: 6.3m/sec
