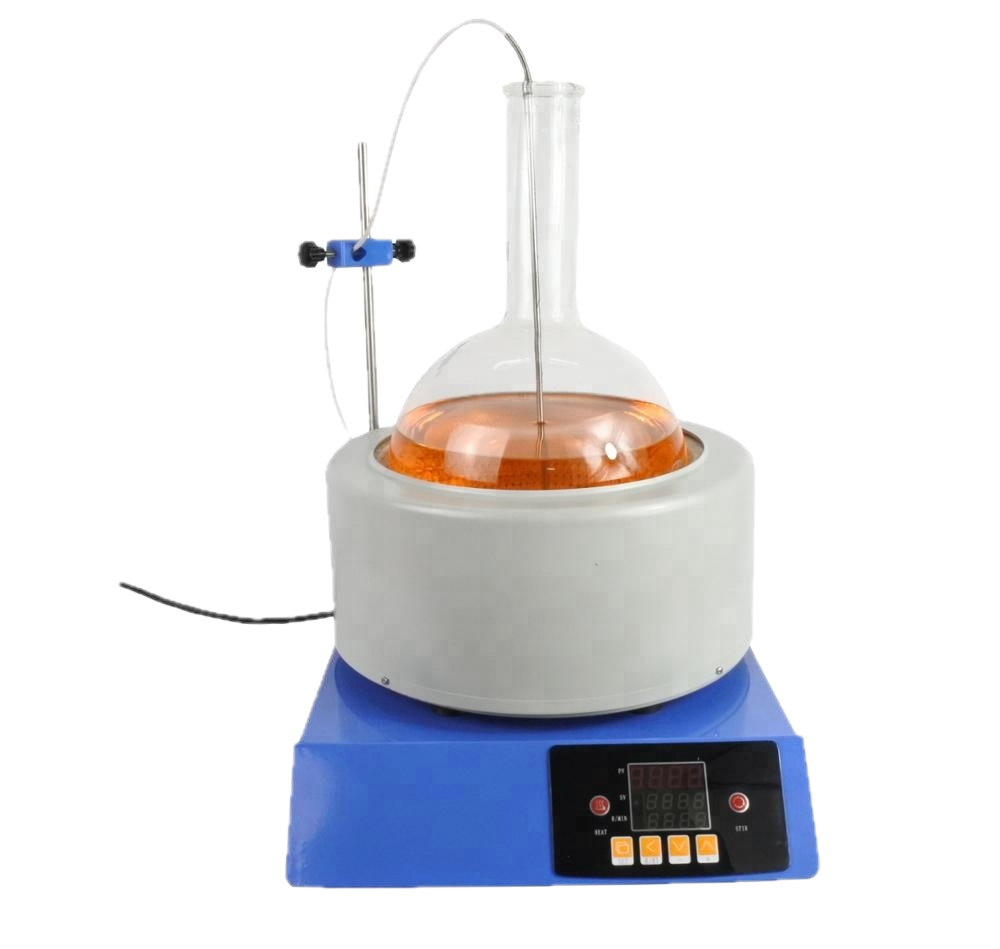

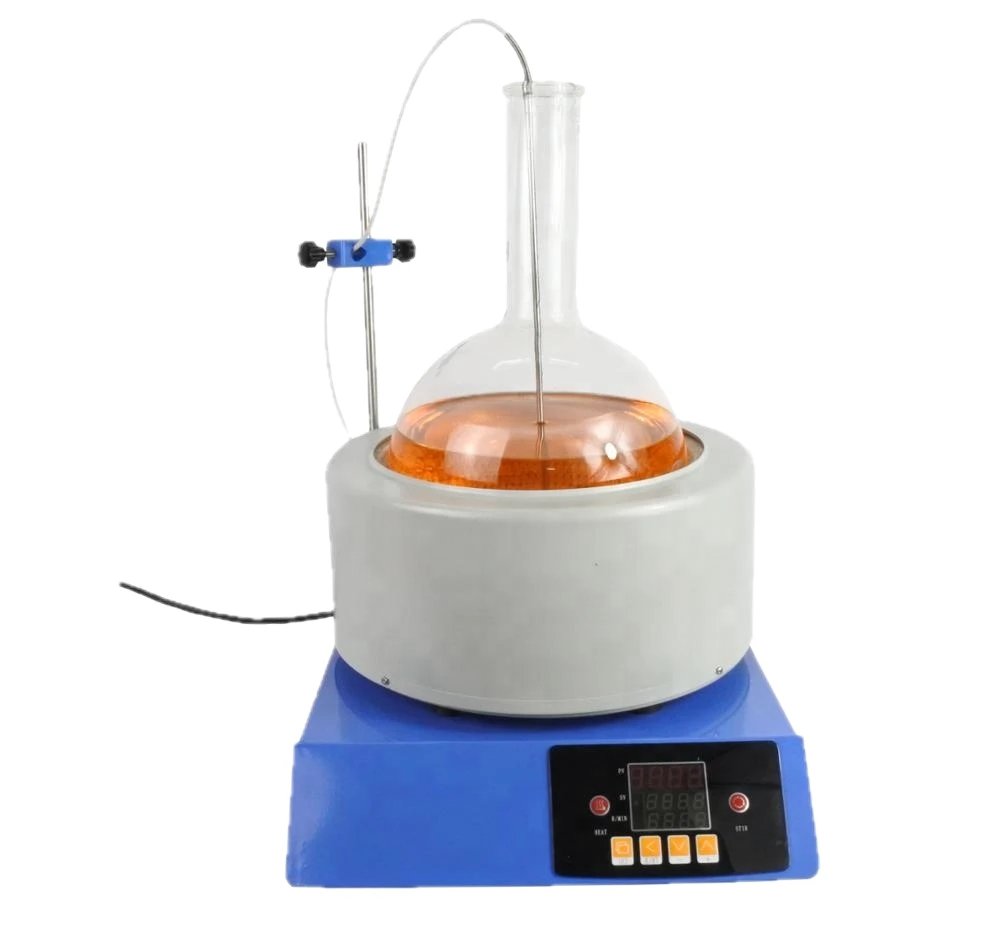

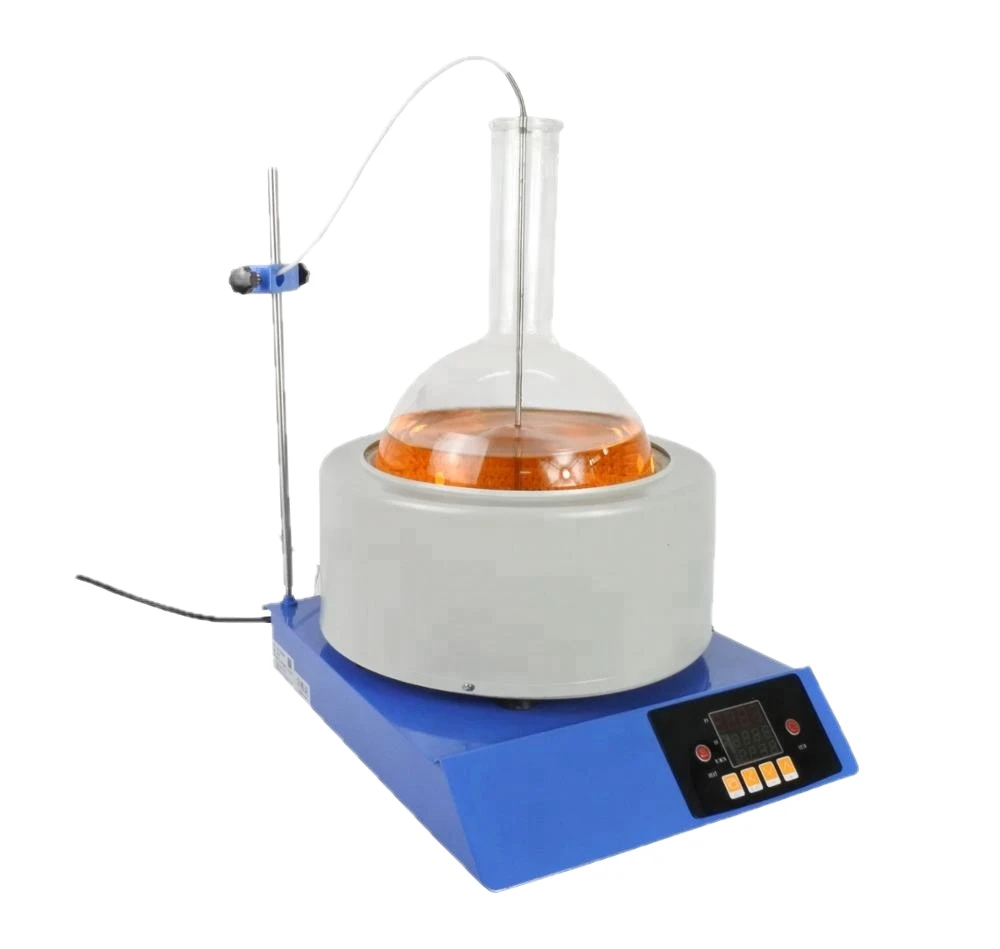

Heating Mantle With Magnetic Stirrer
A heating mantle with a magnetic stirrer is a laboratory device designed to simultaneously heat and stir liquids in round-bottom flasks.
It provides uniform heat up to 450∘𝐶 and consistent agitation (often up to 2000RPM) for applications like chemical synthesis, distillation, extraction (e.g., Kjeldahl method), and bacterial cultures, ensuring even temperature distribution.
Heating Mantle With Magnetic Stirrer
Key Uses and Applications:
Chemical Reactions: Essential for accelerating reactions through heat and constant mixing, particularly in organic synthesis.
Distillation & Extraction: Ideal for distilling liquids and extracting volatile compounds (flavors, aromas) without breaking glass containers, as the heating element is well-insulated.
Pharmaceutical Research: Used in preparing formulations, controlling chemical reactions, and testing drug stability.
Biological & Clinical Labs: Employed for enzyme assays, protein crystallization, and maintaining consistency in diagnostic samples.
Industrial/Food Testing: Used in industrial laboratories for heating and mixing, including molecular cooking.
Advantages in Laboratory Work:
Uniform Heating: The mantle fits around the flask to prevent hot spots.
Integrated Operation: Combining heating and stirring saves valuable bench space.
Precise Control: Often equipped with digital or analog controls to set exact temperatures and speeds for consistent, reproducible results.
Improved Safety: Eliminates open flames (unlike Bunsen burners) and minimizes the risk of overheating.
Features
1.Temperature range : ambient to 380 ℃ . PID control as well as inner and outer thermocouple .
2.Digital display for temperature Speed add , reduce and set . LED Display for stir speed add and reduce .
3.Stirring is Independently controlled with a variable speed control up to 1800rpm.
4.Capacity : 50ml – 20, 000ml for round bottom flasks .
5.Can be customised for beakers as your requests.
Heating Mantle With Magnetic Stirrer
Key attributes
Rated Power. 1100W
warranty. 2 years
Max Temperature 380
model number. ZNCLTS5000
High quality 450C laboratory electric heating mantle with stirrer
Volume. 5L
Heating Power(W). 1100W
Heat Material. Alkali-free glass fiber . Max Temperature Resistance 450°
Shell Material. Superfine Metal , anti-aging, anti-corrosion
Mix speed 100-1800RPM
Temperature range Rt-380°C
Temperature control PID Control .Inner and Outer Thermocouple
Working temperature Rt-40°C
Certification. CE
