Handheld Color Analyzer Testing
-
Lead Time: 2-3 Weeks
1. Product Profile
- Handheld Color Analyser Testing

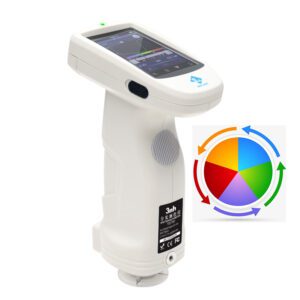

TS7600 handheld spectrophotometer is a high-end precise colour measurement instrument for surface colour measurement and management,
It is widely suitable all kinds of industries such as:
- plastics and metals,
- paint and coating,
- furniture and wood,
- ink, printing and packaging,
- pharmaceuticals, cosmetics,
- fabrics, textiles and garments,
- electronics, tiles and decoration industry.
- the Spectrophotometer TS7600 is a top-of-the-line measurement instrument designed to precisely evaluate the color and appearance of opaque and fluorescent samples.
2. Detailed Technical Parameter / Specification Form
- Handheld Color Analyser Testing
| Technical Parameter Items | TS7600 Handheld Color Measuring Spectrophotometer |
| Product Category | Optical Electronic Digital Color Testing Equipment |
| Product Name | Handheld Color Measurement Spectrophotometer |
| Optical Geometry | d/8° |
| Measuring Apertures | Choose One Apertrue from: ∅10mm/∅8mm or ∅5mm/∅4mm |
| Color Spaces | CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, βxy, Muncell(C/2) |
| Color Difference Formulas | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00 |
| Repeatability Error | ΔE*ab≤0.04 |
| Inter-instrument Error | ΔE*ab≤0.2 |
| Other Colorimetric Index | WI (ASTM E313, CIE/ISO, AATCC, Hunter),
YI (ASTM D1925, ASTM 313), Staining Fastness, Color Fastness, Color Strength, Opacity, 8-degree Glossiness |
| Information Displayed | Spectrogram/Data, Chromaticity Diagram/Values, Color Difference Values/Graph, Pass/Fail Result, Color Simulation, Color Offset/Deviation Direction |
| SCI/SCE | SCI+SCE (SPIN+SPEX) |
| Viewing Angle | 2° & 10° |
| Illuminating Lamps | Combined Full Spectrum LED Lamps |
| Lamps Life-span | 5 Years, more than 3 Million times of measurements. |
| Integrating Sphere Size | ∅40mm |
| Wavelength Range | 400nm – 700nm |
| Wavelength Pitch | 10nm |
| Semiband Width | 10nm |
| Reflectance Range | 0∼200% |
| Illuminants | D65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30) |
| Sensor | Silicon Photodiode Array (Dual Row 40 Groups ) |
| Spectroscope | Flat Grating |
| Measurement Time | 1.5s (About 5s for both SCI and SCE) |
| Data Storage Capacity | 1000 pcs of Standards, 20000 pcs of Samples. (Once piece of data includes both SCI and SCE) |
| Data Transmission Port | USB |
| PC Terminal Software | SQCX (for free) |

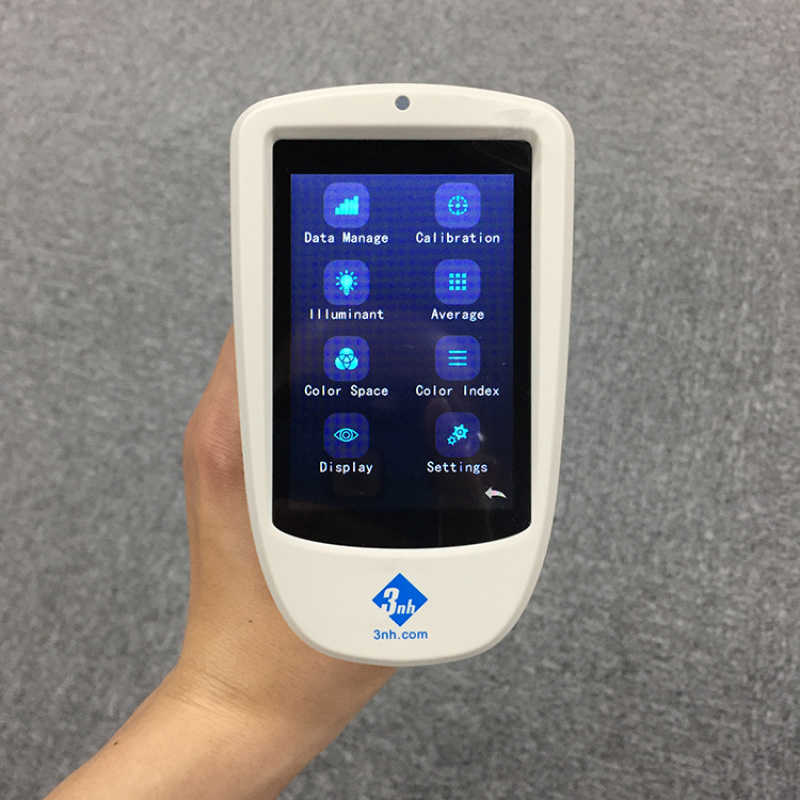

| Display Screen | 3.5-inch TFT Capacitance Screen-touch Display |
| Language Built-in | English, Chinese. (If need German, French, Spanish, Italian or Russia, please specify) |
| Built-in Battery | 6000 times measurements in 8 hours. |
| Working Environment | Temperature: 0∼40℃; Humidity: 0∼85% (No Condensation) |
| Storage Environment | Temperature: -20℃∼50℃; Humidity: 0∼85% (No Condensation) |
| Standard Accessories | White and Black Calibration Cavity, Φ4mm or Φ8mm Aperture, Power Adapter, USB Cable, PC Software SQCX, User Guide, Protective Cover, Wrist Strap. |
| Optional Accessories | Mini Thermal Printer, Powder Test Box |
| Weight | 600g |
| Dimension | 129*76*217mm |
