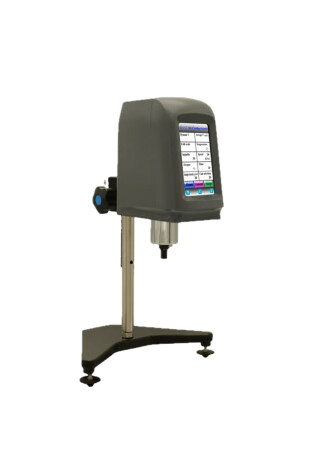

Digital Viscosity Meter-SNB-2T
Lead Time: 3-4 Weeks
A digital laboratory viscosity meter measures a fluid’s resistance to flow (viscosity) using rotating spindles or oscillation, commonly applying to paints, food, cosmetics, oils, and adhesives. It is used to analyze Newton’s law for liquids, determine shear rates, and maintain product quality by measuring viscosity under controlled temperatures and speeds.

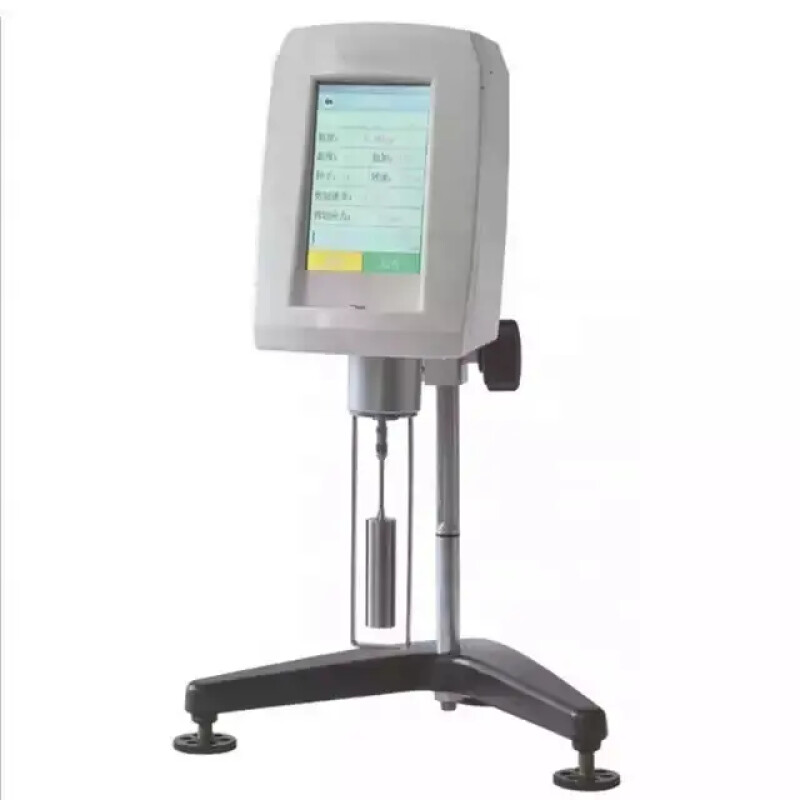

Digital Viscosity Meter SNB-2T
Rotary Viscometer SNB-T, Viscometer
Use
Widely used in the need to measure the viscosity of fluid and fluid under high temperature and melting. This includes:
- paint
- coatings
- cosmetics
- printing ink
- paper pulp
- food
- oil
- latex
- starch
- solvent-based adhesives
- biochemical products, etc.

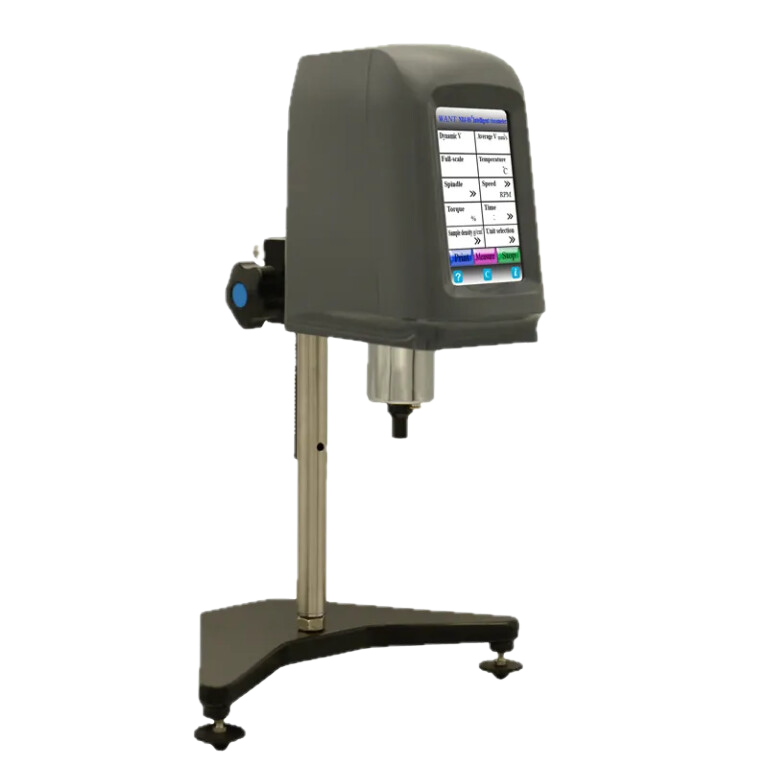

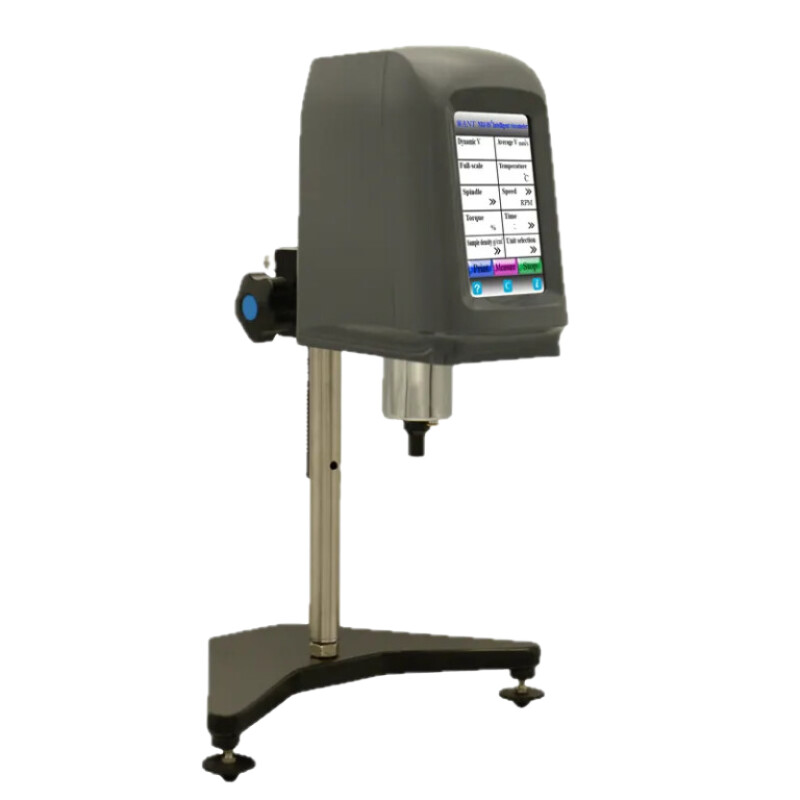

Digital Laboratory Viscosity Meter
Detailed technical parameters:
Digital Viscosity Meter-SNB-2T-z
|
Model |
SNB-1T SNB-2T |
|
|
Control/display mode |
5 inches color touch screen |
|
|
speed(r/min) |
0.3/0.6/1.5/3/6/12/30/60 |
0.1/0.3/0.6/1.5/3/6/12/30/60 |
|
Measuring rangemPa.s |
1~2,000,000 |
1~6,000,000 |
|
(Measuring 10 under low viscosity, equipped with 0 # rotor) |
||
|
rotor |
1, 2, 3, 4#( standard) 0#转子( standard) |
|
|
Measurement error (Newtonian liquid) |
±1% |
|
|
Repetitive error (Newtonian liquid) |
±0. 5% |
|
|
Timing function |
standard |
|
|
Temperature measurement function |
The standard temperature sensor interface temperature sensor (selected) |
|
|
Automatic scanning function |
Automatic scanning and recommend the best combination of rotor and speed |
|
|
According to maximum measuring range |
Combination of rotor and speed automatically according to the selected viscosity range can be measured |
|
|
Should show shear/shear rate |
standard |
|
|
Automatic display kinematic viscosity |
Need to input the density of the sample |
|
|
Self-built measurement program |
Can save up to 30 groups (including the rotor, rotational speed, temperature, time, etc.) |
|
|
Save the measurement results |
Can save up to 30 sets of data (including viscosity, temperature, rotating speed of rotor, and the shear rate, Shear stress, time, density, kinematic viscosity, etc.) |
|
|
Viscosity curve |
Real-time display viscosity curve |
|
|
|
Data, curve can print (standard equipped with print interface, to choose and buy a printer) |
|
|
Data output interface |
standard |
|
|
Constant temperature parts |
Option (viscometer constant temperature trough, thermostatic cup, etc.) |
|
|
Working power supply |
Wide working voltage (110 v / 60 hz or 220 v / 50 hz) |
|
|
Overall dimensions |
300 × 300 × 450(mm) |
|
Digital Viscosity Meter SNB-2T
