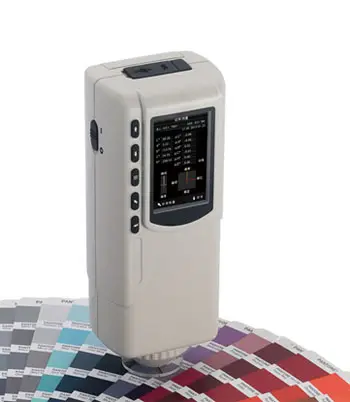

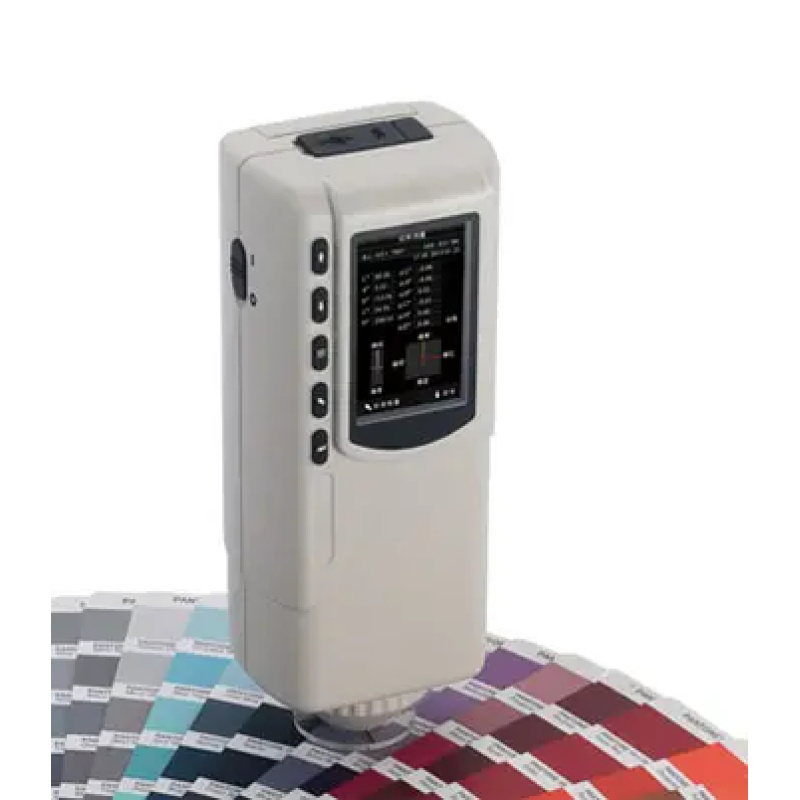

Digital Portable Colorimeter
- Digital Portable Colorimeter
Lead Time: 2-3 Weeks
1. Built-in white plate parameters. No need to calibrate each time.
2. Double locating: illuminating locating and precise cross locating.
3. Switchable double measurement end face: large area stable end face and small area measurement for concave-convex end face.
4. New integrating sphere optical path design: eliminating the stray light of main optical path and auxiliary optical path.
5. Equipped with rechargeable-capacity Li-ion battery.
6. Hand-head structure, small and convenient
2. Double locating: illuminating locating and precise cross locating.
3. Switchable double measurement end face: large area stable end face and small area measurement for concave-convex end face.
4. New integrating sphere optical path design: eliminating the stray light of main optical path and auxiliary optical path.
5. Equipped with rechargeable-capacity Li-ion battery.
6. Hand-head structure, small and convenient
BRAND: BIOBASE
Product Parameter
|
Models
|
BCM-110
|
BCM-200
|
|
Illuminating/Viewing Geometry
|
8/d
|
|
|
Measuring Aperture
|
Φ4mm
|
Φ8mm
|
|
Detector
|
Silicon photoelectric diode
|
|
|
Color Space
|
CIEL*a*b*C*h* CIEL*a*b*
|
|
|
Color Difference Formula
|
E*abL*a*bE*C*h
|
|
|
Light Source
|
D65
|
|
|
Light Source Device
|
LED blue light excitation
|
|
|
Display
|
TFT LCD
|
|
|
Errors Between Each Equipment
|
≤0.80ΔE*ab
|
≤0.40ΔE*ab
|
|
Storage
|
100pcs standards, 5000pcs samples
|
100pcs standards, 20000pcs samples
|
|
Repeatability
|
Standard deviation within ΔE*ab 0.08
Average of 30 measurements of standard white plate |
|
|
Lamp Life
|
3 years, more than 1 million time
|
5 years, more than 1.6 million time
|
|
Charging Time
|
8 hours-100% electricity
|
2 hours(8 hours for first charge)-100% electricity
|
|
Measurement Times Before Recharging
|
3000 times in 8 hours
|
|
|
Ambient Temp./Humidity Range
|
-10~40℃, relative humidity 0~85% without condensation
|
|
|
Data Interface
|
USB
|
|
|
Optional Accessory
|
Miniature thermal printer
|
Universal Test Components, Powder test box,Miniature thermal printer
|
|
Power Supply
|
Rechargeable li-ion battery 3.7V@3200mAh
|
|
|
External Size(W*D*H)
|
205*67*80mm
|
205*70*100mm
|
|
Package Size(W*D*H)
|
450*230*380mm
|
|
|
Net Weight
|
0.5kg
|
0.45kg
|
|
Gross Weight
|
2.5kg
|
|
