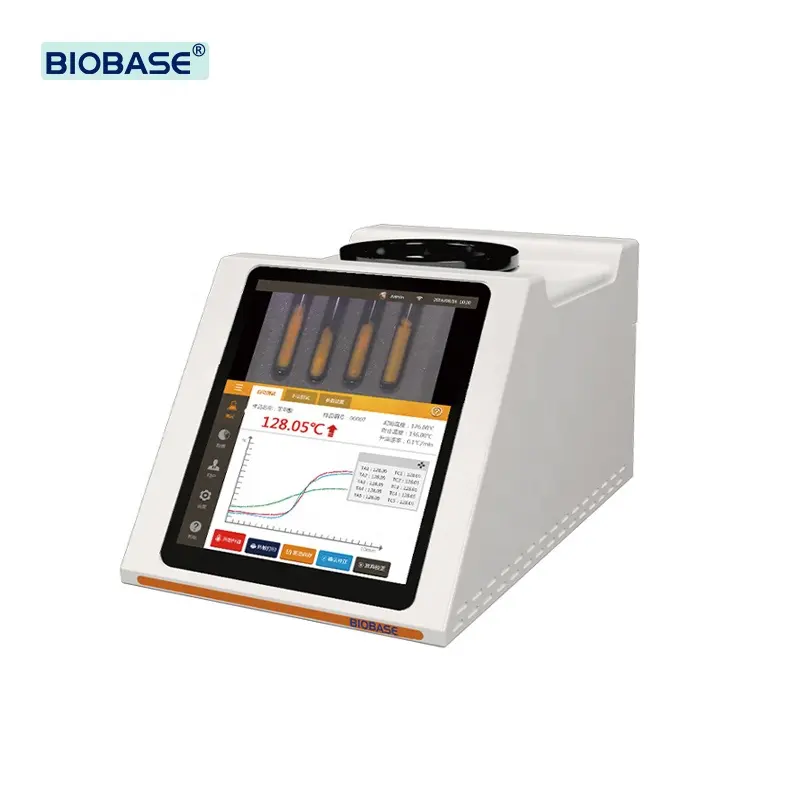

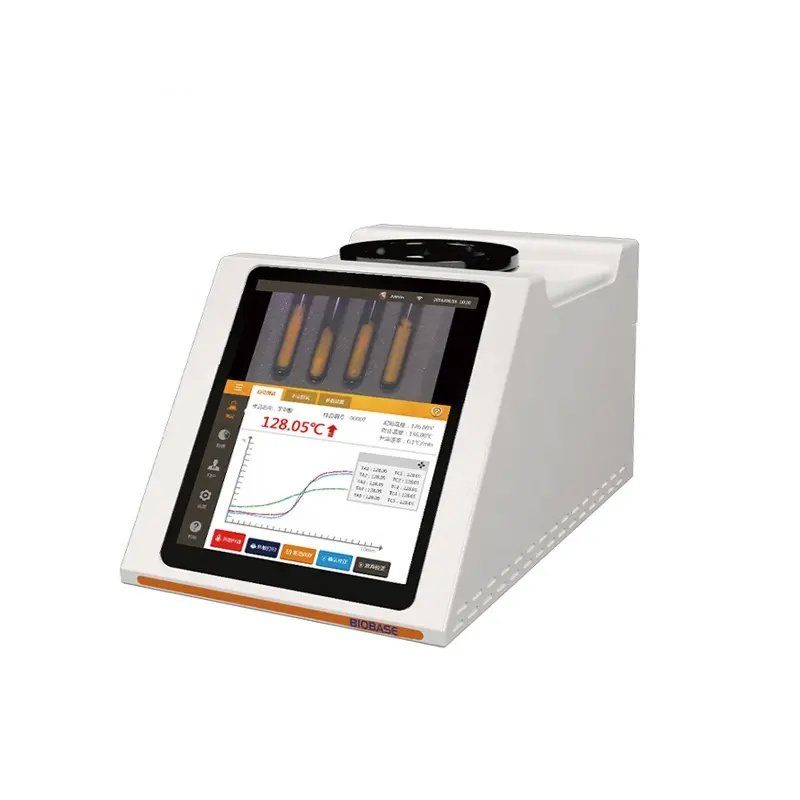

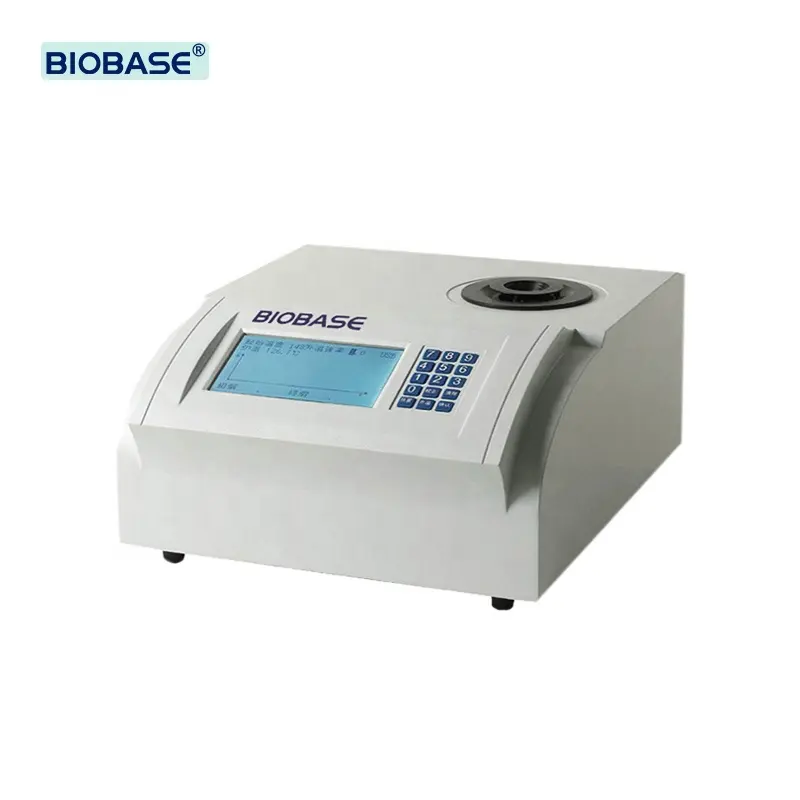

Digital Melting Point Apparatus: BMP Models
Lead Time: 3-4 Weeks
Melting point apparatus are used to determine sample melt.
- They are used for applications in pharmaceutical labs, quality control, academia, chemistry and industrial labs, particularly for the purity checking of raw materials received and compounds produced
Technical Parameters
Digital Melting Point Apparatus: BMP Models
|
Model
|
BMP-2C
|
BMP-1C
|
BMP-1B
|
|
Measuring Range
|
RT~360°C
|
RT〜400°C
|
RT〜320°C
|
|
Resolution
|
0.1°C
|
||
|
Linear heating-up Rate
|
0.1°C~20°C/min
|
0.2, 0.5, 1.0, 1.5, 2.0,
3.0, 4.0, 5.0°C/min |
|
|
Temperature Accuracy
|
0.4°C(≤200°C), 0.7°C(>200°C)
|
||
|
Repeatability
|
0.3°C
|
||
|
Capillary Size
|
φ1.4mm(outside diameter),φ1.0mm(inside diameter), 80mm (height)
|
||
|
Sample Loading Height
|
3~5mm
|
>3mm
|
|
|
Data Storage
|
1000 sets
|
/
|
|
|
Optional Accessories
|
Printer
|
||
|
Power Supply
|
AC110/220V±10%, 50/60HZ
|
||
|
External Size(W*D*H)
|
410*290*110mm
|
330*290*110mm
|
330*290*110mm
|
|
Package Size(W*D*H)
|
576*428*306mm
|
492*428*305mm
|
496*428*306mm
|
|
Gross Weight
|
13kg
|
||
|
Features for BMP-2C/1C:
|
|
* PID&PWM controller.
|
|
* LCD touch screen for BMP-2C/BMP-1C.
|
|
* USB & RS232 interface.
|
|
* The melting curve can be recorded automatically.
|
|
* It can calculate average value of initial and final.melting points automatically.
|
