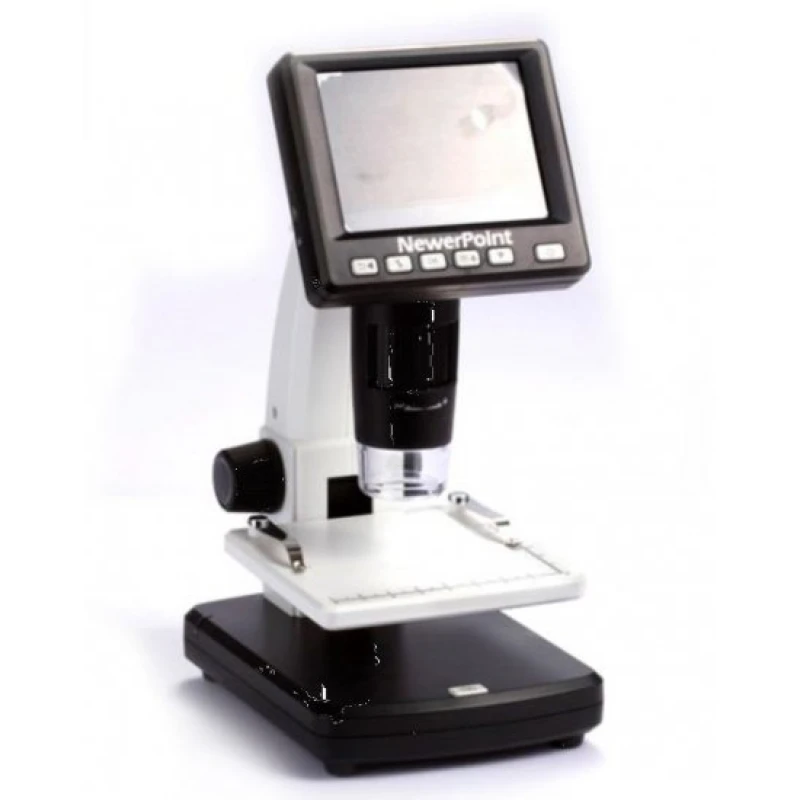

Digital LCD Microscope-Education
Digital LCD Microscope For Science Education
Digital microscopes for science education, such as those from Masiye Labs, are used to enhance interactive learning by allowing classrooms to view high-resolution,, live-streamed microscopic images on screens, facilitating group observation, digital image/video capture, and analysis of biological, geological, or material samples. Digital LCD Microscope-Education
Key applications and uses include:
Interactive Classroom Demonstrations: Instead of individual, isolated viewing, teachers can project real-time, magnified, images onto smartboards or monitors for the entire class to observe simultaneously, promoting collaborative,, learning. Digital LCD Microscope-Education
Imaging and Documentation: Students can capture, save, and annotate images and videos of specimens, such as plant cells, insect parts, or, fibers, for, reports and presentations.
Diverse Subject Analysis: Used across, biology, geology, and material science, they allow for studying, intricate, structural details, such as, observing, rock, textures, circuit boards, or living organisms.
Enhanced Accessibility and Ease of Use: Their user-friendly, nature allows younger students (e.g., using Intel’s Digital Blue) to easily explore, while, high-power, magnification, (up to 1200x) supports, advanced,, studies.
Digital Integration: They connect via, USB to computer
Magnification: 500x (1200x Digital),
5MP true Resolution Colour LCD Screen 3.5″ TFT,
Adjustable Lighting Focus Range: 10 to 50mm Outputs:
microSD slot,
USB & TV,
Windows & Mac compatible Charger,
Battery compartment (Optional),
USB cable, CD,
- Digital LCD Microscope-Education
Manual Size: 149mm(L)x 104mm (W) x 227mm (H), 1100g
. This stand alone microscope with a magnification ratio of up to 500x is excellent for viewing, 5M high quality Image sensor.
2. There is a 3.5 inch TFT color screen shows live footage therefore there is no need to connect to a PC for instant viewing.
3. You can browse your stored images and videos on this screen, plus you can save footage on a micro SD card as there is a built-in port so making it easy to transfer.
4. 3.7V 800mAh Li-ion battery that can be recharged via USB or by the accompanying power adapter.
5. There is an AV output for live demonstrations on televisions and projectors making it great to be used in the classroom.
6. With 500X maximum magnification, you can get up close and personal with viewing the magical mini that happens around us.
7. Light source: 8 LEDs.
8. Frame rate: 30fps.
9. Photo: button photo Support USB computer, and distribution computer driver software, convenient for computer operation Support TV and other TV interface devices, focusing range: Manual focus from 10mm to 30mm.
10. Computer system minimum requirements: Windows XP SP2/Vista/Win7/Win8, Mac 10.6-10.8 or above.
11. Size: 149x 104x 227mm.
12. Power supply plug: US Plug or EU Plug (optional).
Digital LCD Microscope-Education
