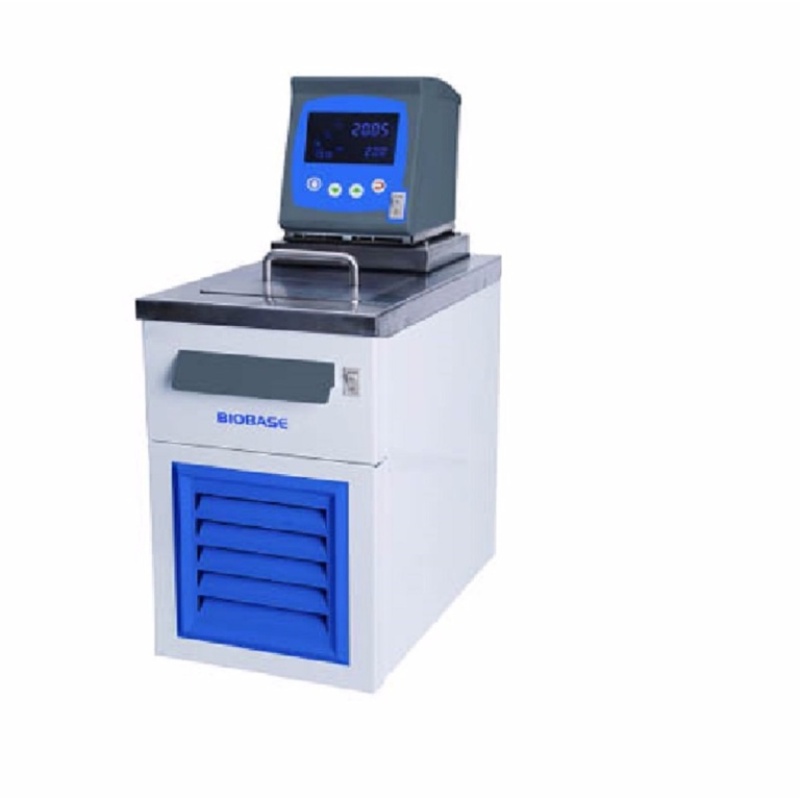

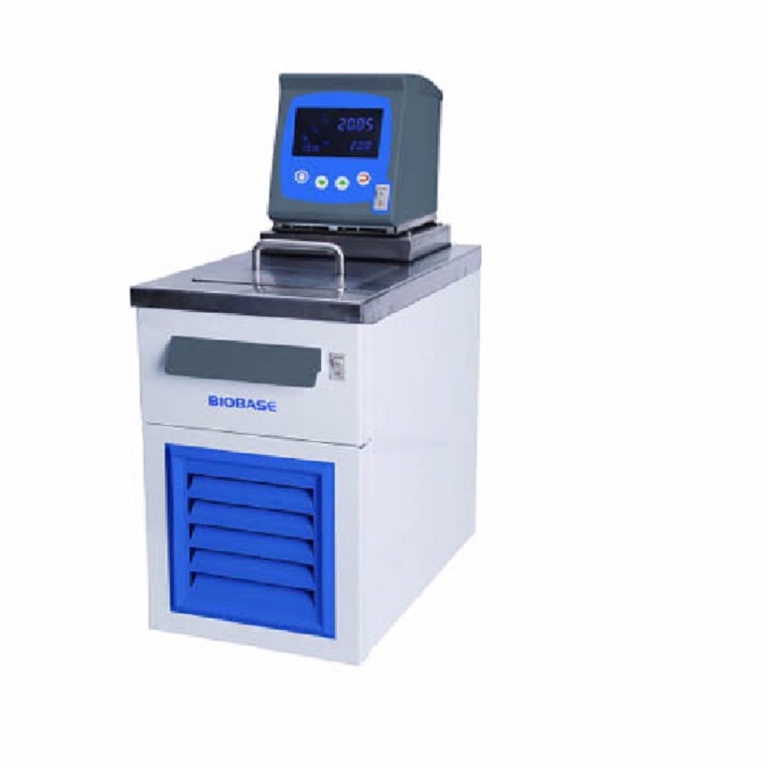

Water Cooling Circulator
Cooling Recirculating Chiller
Laboratory Cooling Water Bath
Lead Time: 4-6 Weeks
Water Cooling Circulator
Features
- Cooling system adopt TECUMSEH compressor in order to ensure cooling efficiency, and reduce noise.
- PID temperature controlling technology is adopted. Cooling method is not the traditional stat-stop type, EEV technology improve the stability.
- Over-temperature protection and auto-alarm function is used in refrigeration control system to avoid damage temperature medium caused by abnormal liquid temperature value.
- Water level observation window and automatic water level detection device, automatic alarm when low liquid level.
- Water current detection device is adopted. When external cycle closed or blocked, internal cycle will be switched automatically.
- High performance circulating water pump guarantee the long time continuous running, and good sealing avoid leakage. The pressure of pump is 0-1.5 par, adjustment is available by rotary knob. Pressure value is displayed.
- Color LCD screen display more running data and dynamic identifier. Easy to monitor
Water Cooling Circulator
Biobase Laboratory Cooling-water Machine Water Bath BK1200 Recirculating Chiller
Technical Parameters
| Model | BK1200 |
| Temperature control range | 5 °C ~ 40°C |
| Temperature control | PID |
| Temperature stability | ±0.3°C |
| Temperature sensor | PT100 |
| Display resolution | 0.1°C |
| Pump flow rate | 20L/min |
| Cooling capacity | 1.2Kw |
| Refrigerant |
R134a |
| Pump capacity Pressure | 0.35 bar |
| Filling volume liters | 8L |
| Power supply | 220VAC±10% 50Hz |
| External size (L*W*H) | 550 x 400 x 650mm |
| Package size (L*W*H) | 750*580*910mm |
| Gross weight | 74kg |
