Conductivity And TDS Meter
Portable Conductivity Meter for Industrial Laboratory Use OEM Customizable
GENERAL Conductivity And TDS MeterFEATURES

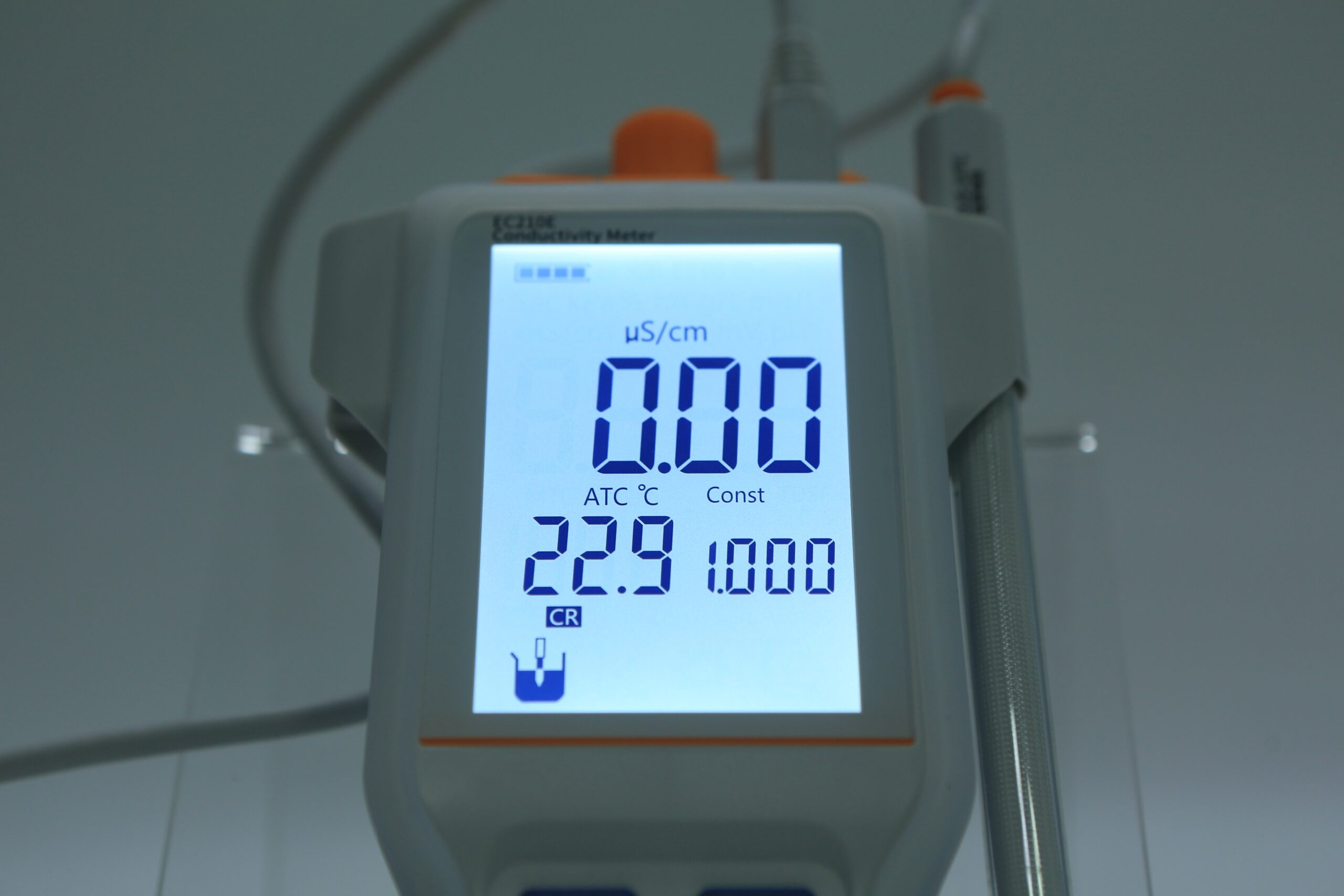

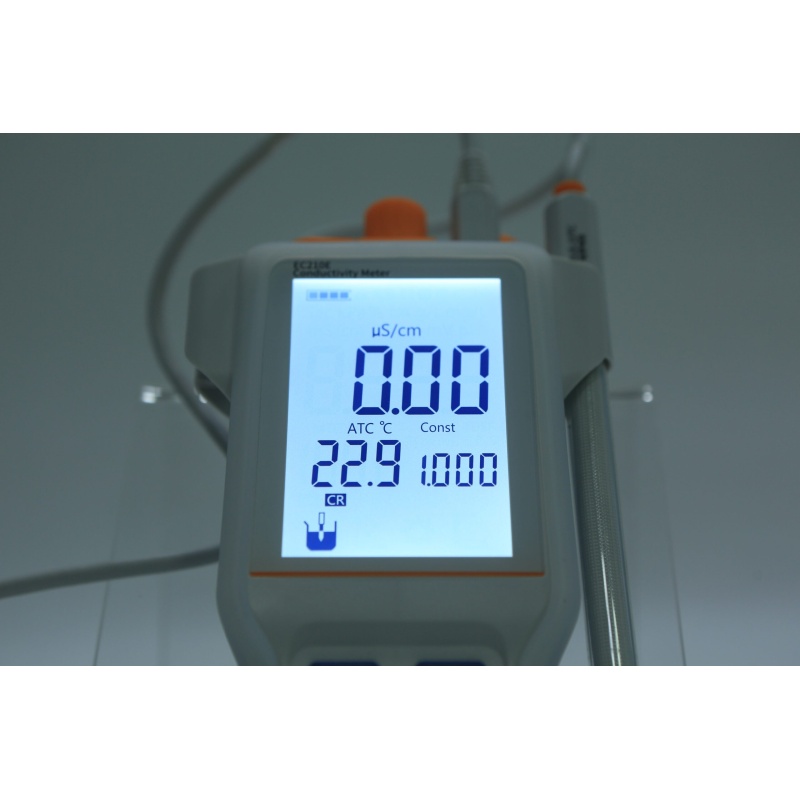

*LCD display screen, 3.5 inches.
*Multi-reading feature allows auto-read, timed-read and continuous-read.
*Automatic/Manual temperature compensation ensures accurate results.
*Auto-hold feature senses and locks the measurement endpoint.
*Data capacity of up to 500 sets for each parameter (GLP-compliant).
*Support for USB communication.
*Auto-power off feature effectively extends the battery service life.
*Reset feature automatically resumes all settings back to factory default options.
*IP65 waterproof. The portable meter is suitable for fields measurements and out door measurements.
*1-3 points calibration with Standard Recognition.
*Settable parameters, including cell constant, temperature compensation coefficient, and TDS factor.
*Temperature compensation type (none, linear, pure water).
Conductivity And TDS Meter Specification
Model. EC210E
Company Name. SKZ Industrial
Model Number. EC310F
Parameters. EC/Temp.(Resistivity/TDS/Sal.)
Conductivity:
Range. 0.000 μS/cm to 200 mS/cm
Resolution. 0.01 μS/cm minimum,
various with range selection
Accuracy. ±1.0% FS
Reference Temperature. 25 ºC
Calibration Points. Up to 1
Standard Recognition. 84μS/cm, 1413μS/cm, 12.88mS/cm
TDS Range 0.00mg/L~300g/L
Resolution. 0.01mg/L minimum, various with range selection
Accuracy. ±1.0%FS
Temperature:
Range. -5 to 110 ºC, 23 to 230 ºF
Resolution. 0.1
Relative Accuracy. ±0.2
Measurement:
Reading Mode. Auto Read, Continuous
Reading Prompts. Reading, Stable, Locked
Temp. Compensation. MTC, ATC

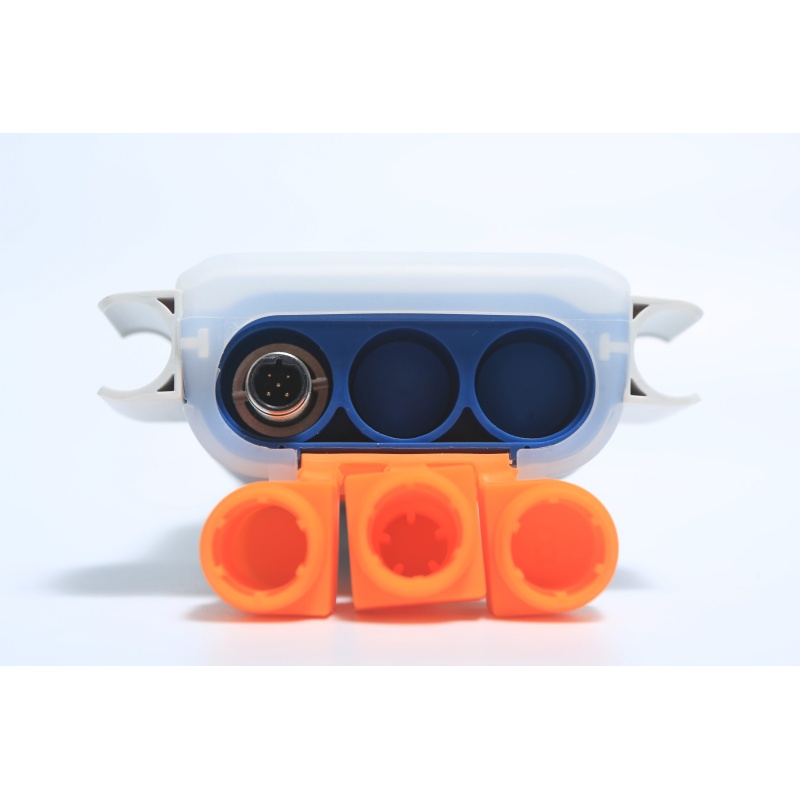

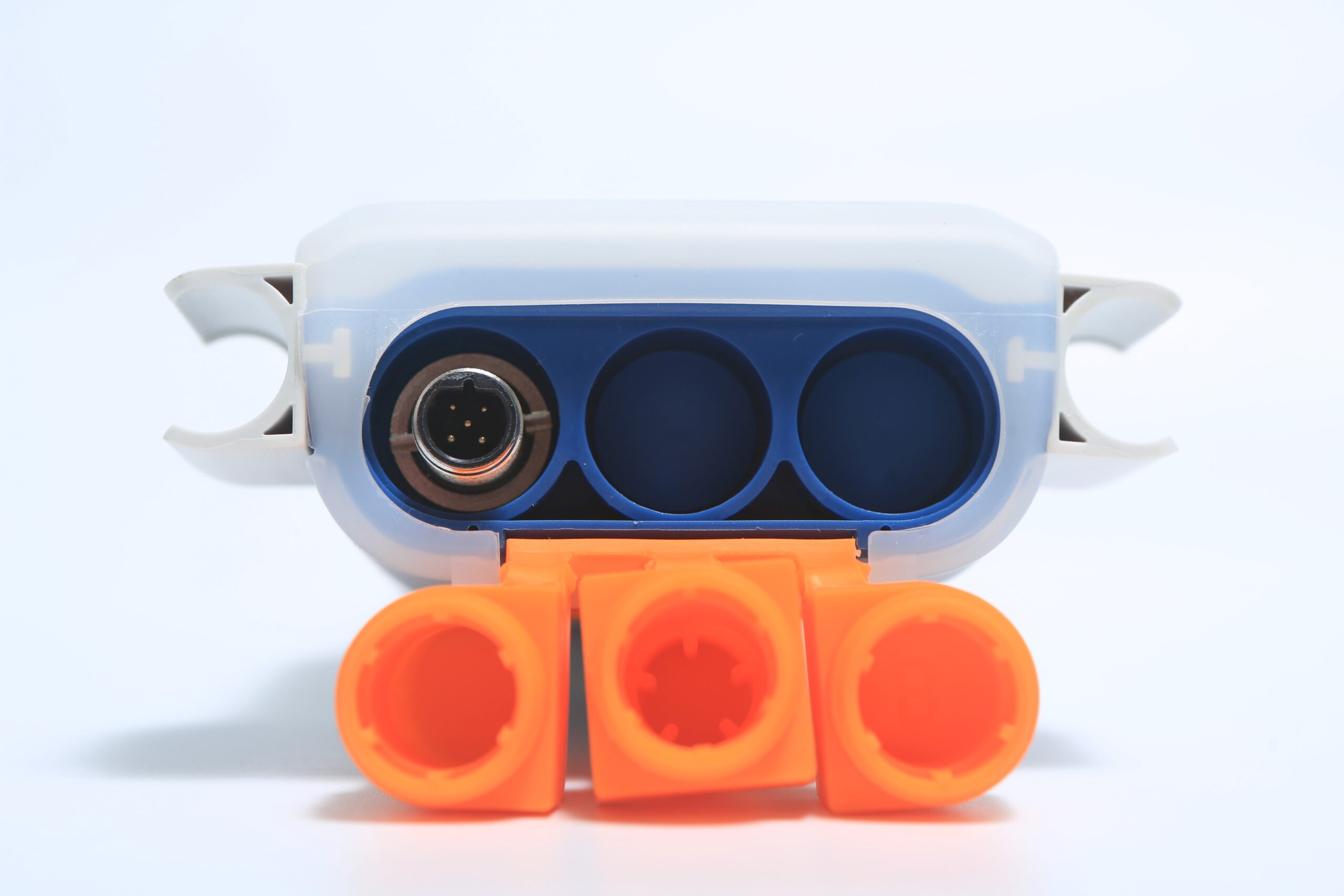

Inputs: Conductivity 5-pin aviation connector
Display options: Backlight. Yes
fAuto Shutdown. 300, 600, 1200, 1800, 3600 sec., of
IP Rating. IP65
Data management:
Data Storage. 200 results each
General. Power. Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output
Dimensions. 80×225×35 mm
Weight. 400g (0.88 lb）
