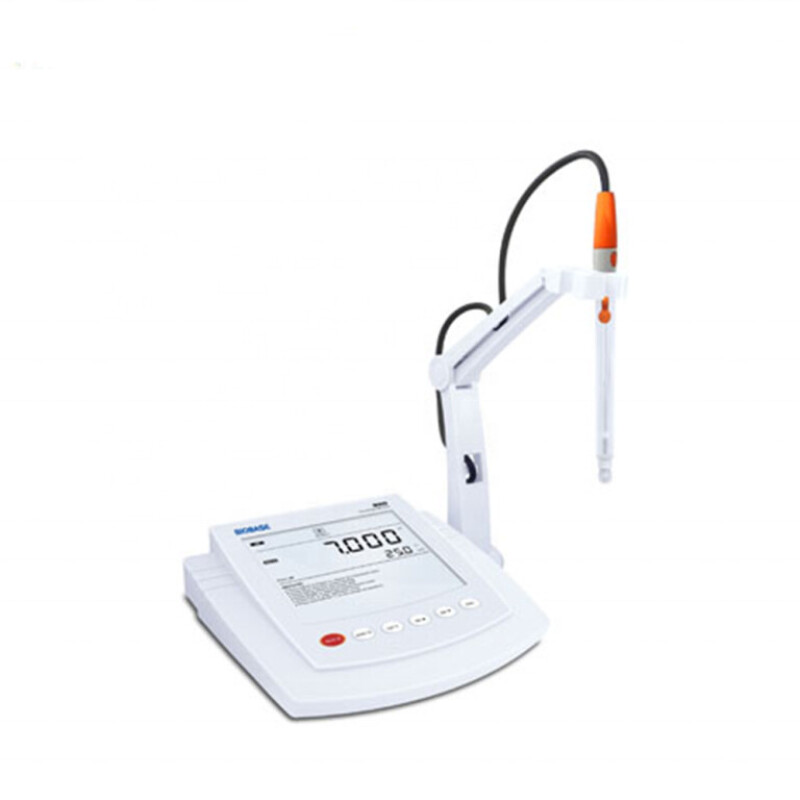

Bench Top pH Meter PHS-25CW
The Bench Top pH Meter PHS-25CW is a precision instrument designed for measuring the acidity and alkalinity (pH) and mV values of liquid or semi-solid samples in a variety of laboratory, educational, and industrial settings.
Typical Applications
The PHS-25CW pH meter is widely used across various fields for daily testing and quality control needs:
Scispectrum
Scispectrum
+4
Water Quality Research & Treatment: Monitoring the pH levels of drinking water, wastewater, and general water quality analysis.
Education & Teaching: Its ease of use and economical nature make it an ideal choice for basic teaching and general laboratory purposes in educational institutions.
Industrial Processes: Quality control and testing in production enterprises across various industries.
Food and Beverage: Analyzing the pH value of food-grade products to ensure safety and quality standards are met.
Chemical and Pharmaceutical Testing: Evaluating the acidity or alkalinity of chemical and pharmaceutical products.
Agriculture: Testing soil quality and composition.
Specialised Testing: Measuring water-based paints and viscous samples (when used with an appropriate electrode), as well as applications requiring compliance with specific industrial standards for textiles and leather.
Key Features Contributing to its Use
The PHS-25CW’s design makes it versatile for varied applications:
Broad Measurement & Precision: Features a 0.00 to 14.00 pH range with a ±0.05 pH accuracy, suitable for diverse, precise testing.
User-Friendly Operation: Equipped with an intuitive interface, membrane keypad, and backlit LCD for ease of use by students and technicians.
Environmental Compensation & Maintenance: Includes manual temperature compensation (0–100°C) for
Bench Top pH Meter- Model-PHS-25CW
Bench Top pH Meter PHS-25CW
|
Model
|
PHS-25CW
|
|||
|
pH Range
|
0.00~14.00pH
|
|||
|
pH Accuracy
|
±0.05pH
|
|||
|
Resolution
|
0.01pH
|
|||
|
Calibration Points
|
2 points
|
|||
|
Calibration Solutions
|
USA (pH4.01/7.00/10.01)
|
|||
|
Temperature Compensation
|
0~100°C, Manual
|
|||
|
mV Range
|
-1999~1999mV
|
|||
|
mV Accuracy
|
±10mV
|
|||
|
Resolution
|
1mV
|
|||
|
Temperature Range
|
/
|
|||
|
Temperature Accuracy
|
/
|
|||
|
Resolution
|
/
|
|||
|
Hold Function
|
/
|
|||
|
Connector
|
BNC
|
|||
|
Display
|
LCD
|
|||
|
Power Requirements
|
DC9V/400mA power adapter
|
|||
|
Dimensions(mm)
|
210*205*65mm
|
|||
|
Net Weight(kg)
|
1.5kg
|
|||
|
Package Size(W*D*H)mm
|
310*240*180mm
|
|||
|
Gross weight(kg)
|
1.7kg
|
|||
