Automatic Fat Analyser
Fat Analyzer serves as an automated device for determining crude fat content using the weight method. It is used in pharmaceutical industry, cosmetics industry, environmental testing and analysis, biological research, oil and fat production and processing.
Products Description:
SOX406 Fat Analyzer
Soxhlet Fat Meter
Laboratory Crude Fat Tester
Automatic Fat Analyser

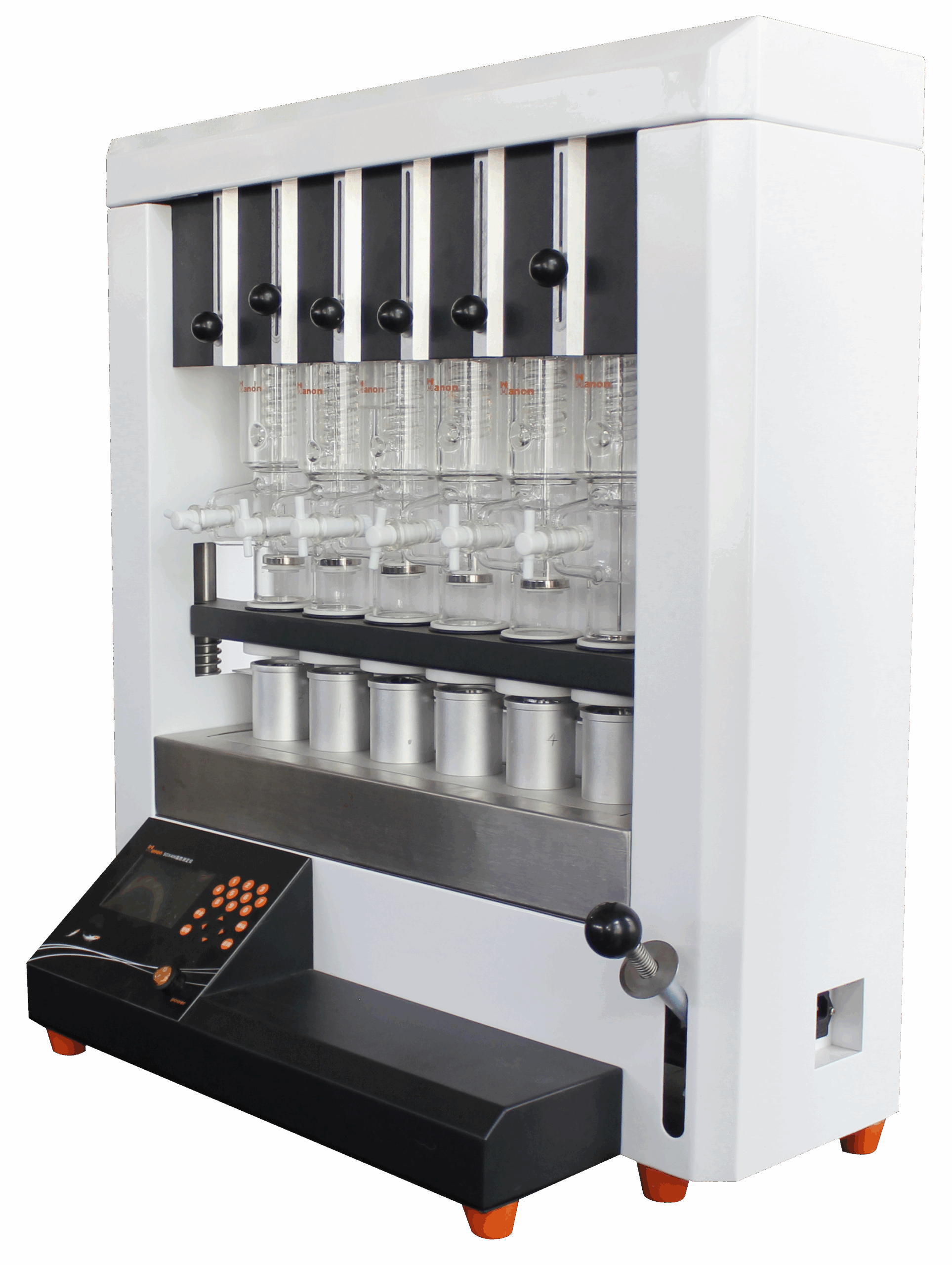

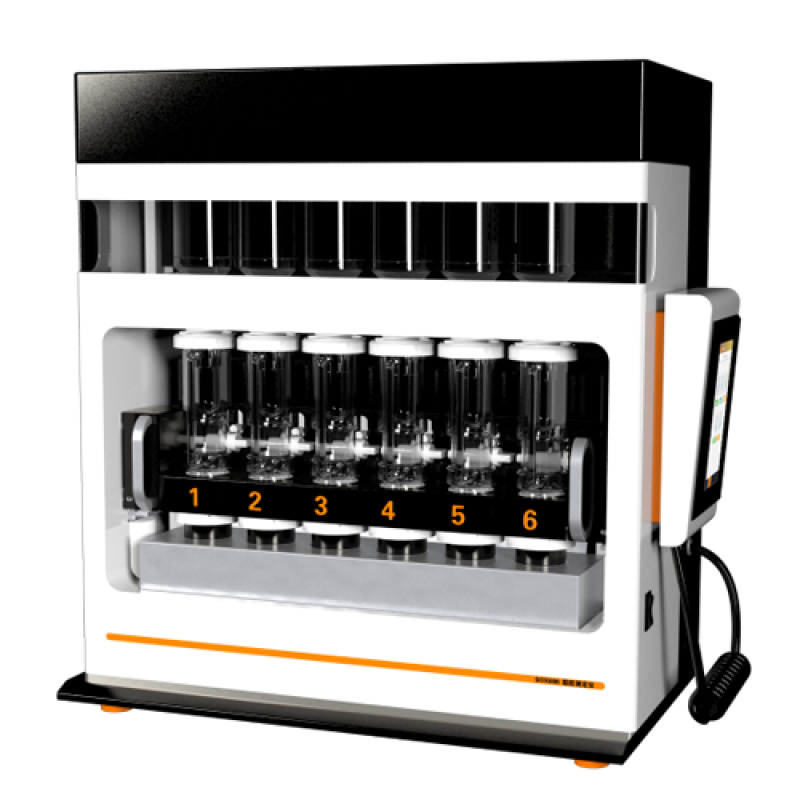

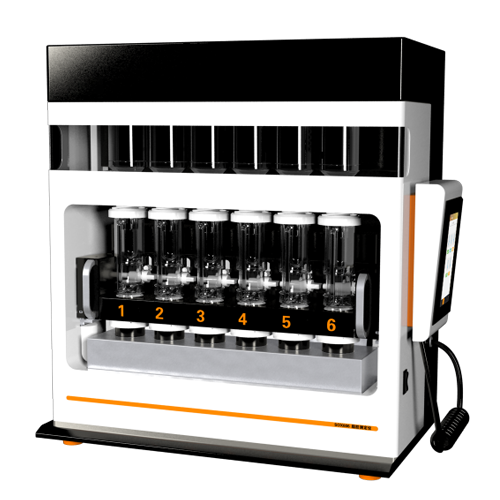

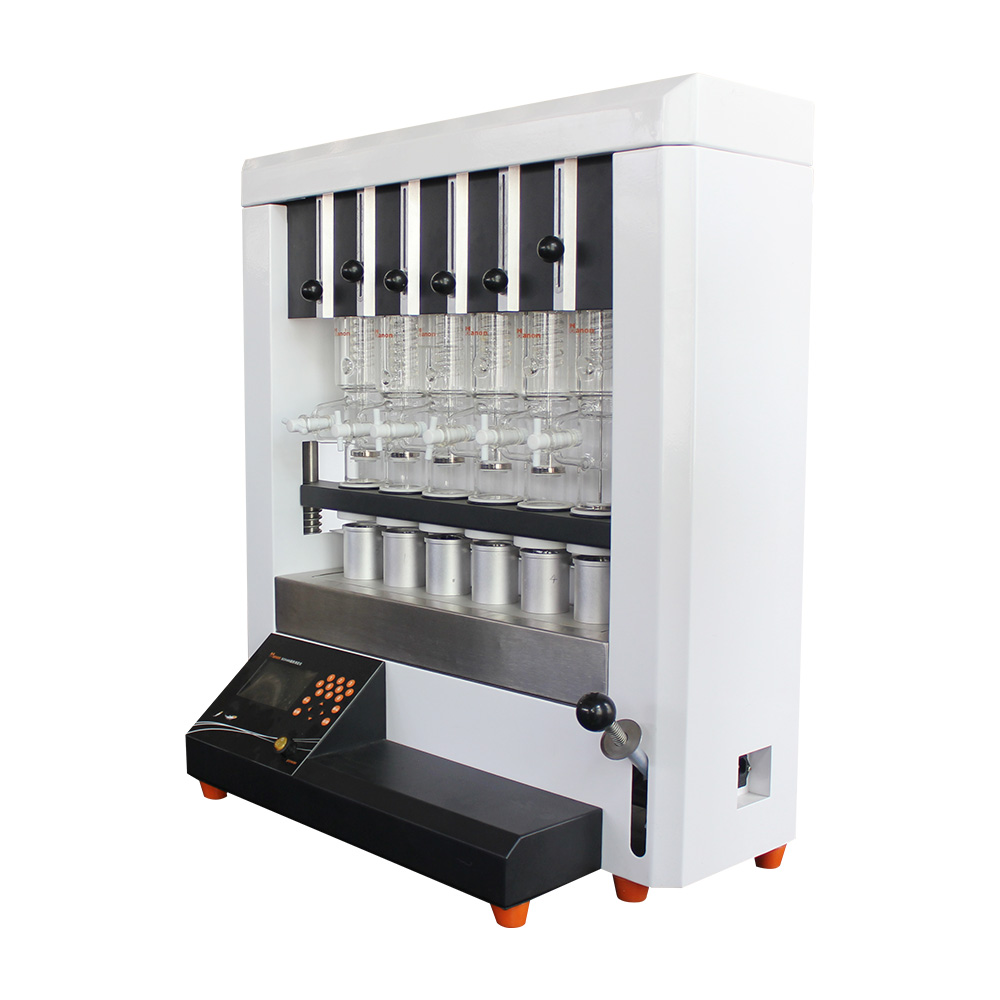

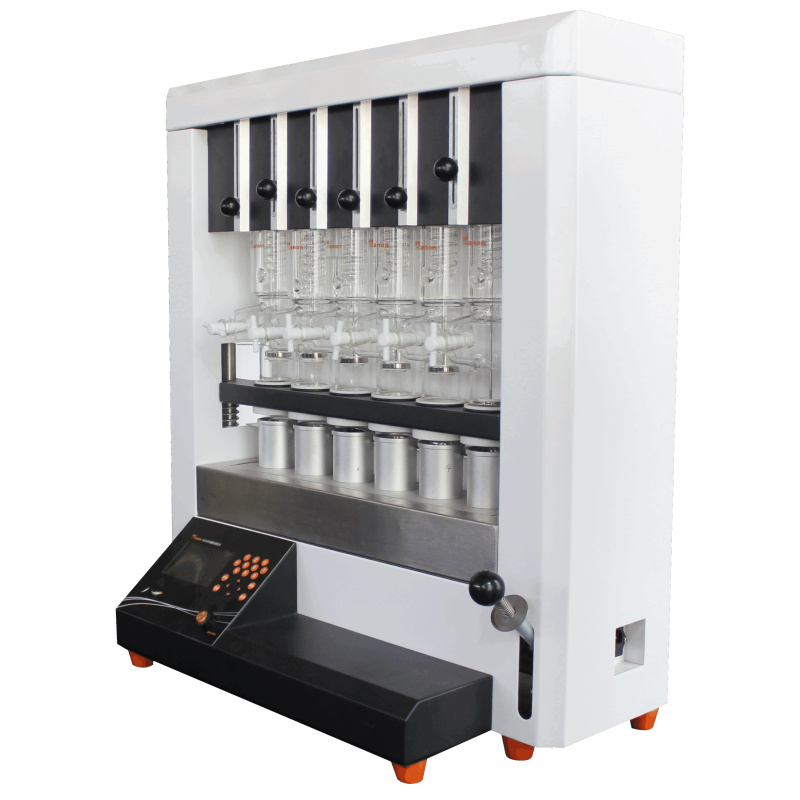

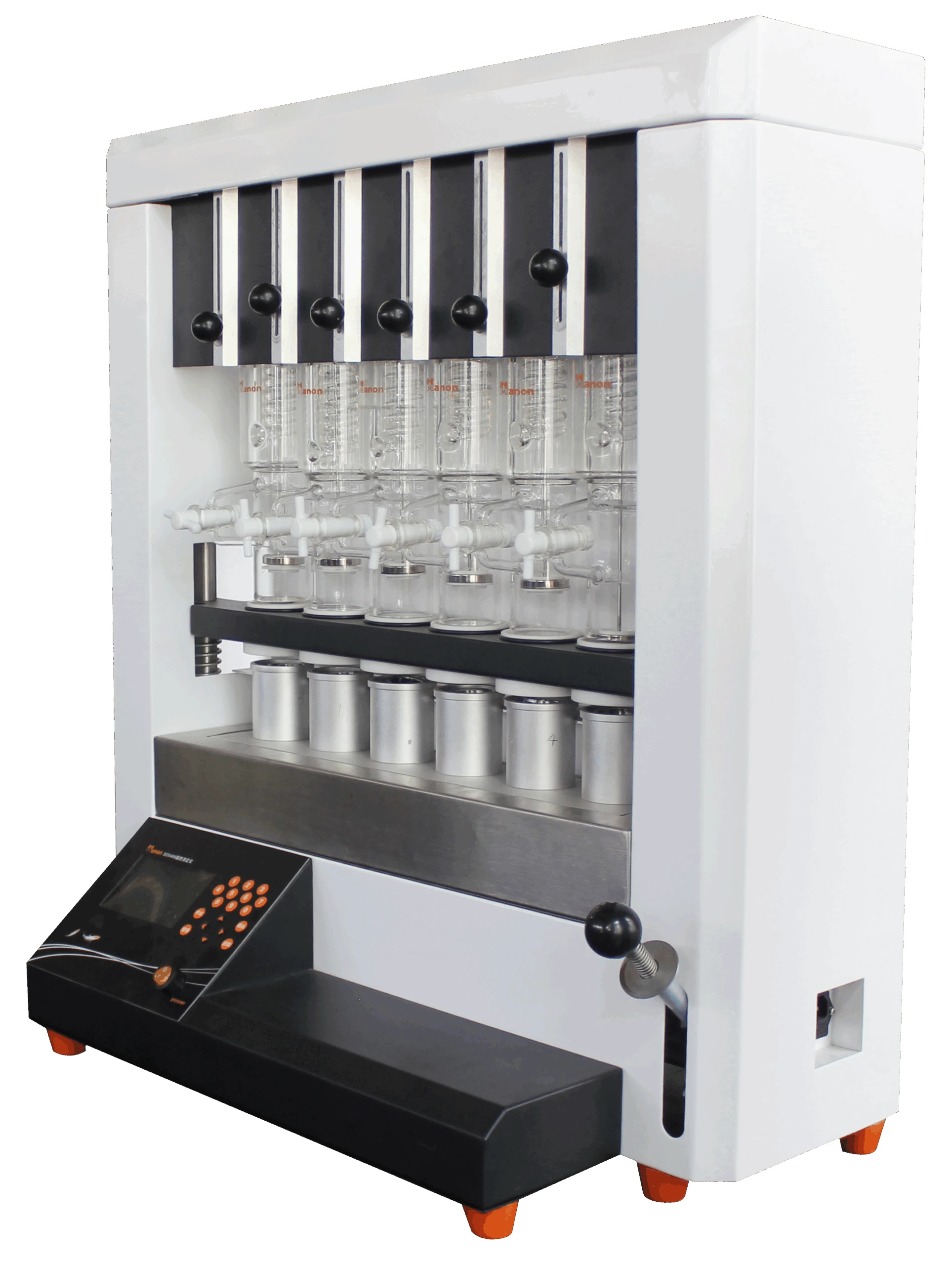

DW-SOX406 Fat Analyzer is based on the Soxhlet extraction principle and integrates such functions as soaking, extraction,
leaching, heating, condensation and solvent recovery. It features sealed metal bath heating with automatic temperature control, ensuring uniform heating and safe operation; six samples can be tested at the same time, and optimal temperature can be selected according to the difference between reagent boiling point and ambient temperature so as to achieve quick analysis; reagents can also be recycled to reduce test cost; and soaking, extraction and solvent recovery can be done in one step. Therefore, this device is characterized by reasonable design, stable performance, good reproducibility, high accuracy, easy operation, saving time and effort, and so on.
Scope of application
DW-SOX406 Fat Analyzer can quickly separate one substance from solid or semi-solid mixtures, can determine the soluble organic compounds contained in foods, feeds, medicines, soil, sludge, polymers, fiber products, petrochemical products, detergents, rubber, plastics and other materials.
Automatic Fat Analyser Characteristics
1. Integral metal heating, wide scope and high precision of temperature control.
2. Electric circuit is isolated from the extraction space, ensuring device security.
3. Timer and timing functions are available.
4. Over-temperature alarming and timer reminding functions are available.
5. Triple alarms i.e. sound, light, LCD screen word prompts are available.
6. Abundant interface contents give simultaneous display of given temperature, actual temperature, given time and heating time.
7. Intelligent man-machine dialogue control system.
8. Exclusive air insulation technique leaves the case in room temperature, has thermal insulation and temperature maintenance two
functions.
9. 3”LCD screen and microcomputer control system are adopted.
Specifications:
Temperature range. RT +5°C~280°C
Measuring range. 0~100%
Temperature accuracy. ±1°C
Reproducibility. Relative error 1%
Sample weight. 0.5g~15g
Capacity per batch. 6pcs./batch
Solvent cup volume. 80mL
Solvent recovery. ≥80%
Shortened extraction time. 20%~80%
Power supply. 220VAC±10%, 50Hz
Power 1KW
Dimension. 650mmx348mmx875mm
Net weight. 61Kg
